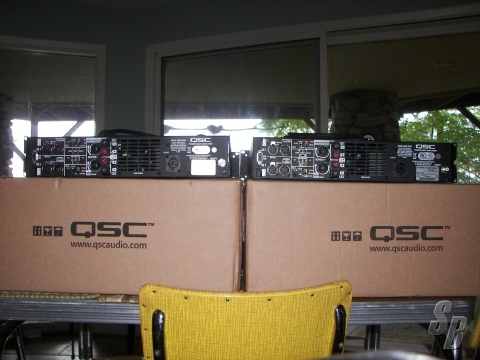

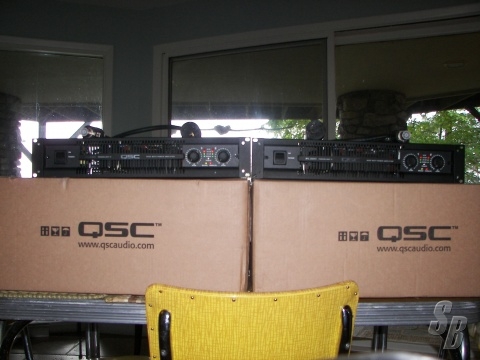

(2) QSC PL380
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on August 30, 2012 - Viewed 198 times

QSC PL380 (YOM: 2011) (S#: 041150956 , 051152996) SUPERB (8-9)

FEATURES: FEATURES

POWERLIGHT SWITCHMODE POWER SUPPLY FOR HIGHEST EFFICIENCY AND IMPROVED AUDIO PERFORMANCE
FLOW-THRU AIR PATH AND SOLID ALUMINUM HEAT SINKS FOR MAXIMUM COOLING
DATAPORT SUPPORTS REMOTE COMPUTER CONTROL AND/OR EXTERNAL DSP-4 MODULES
DETENTED GAIN CONTROLS WITH 1 DB STEPS FOR PRECISE CALIBRATION
REMOVABLE KNOBS WITH LOCK-OUT SECURITY PLATE TO PREVENT UNAUTHORIZED TAMPERING
USER DEFEATABLE CLIP LIMITERS AND SELECTABLE LOW-FREQUENCY FILTER PER CHANNEL (3 HZ, 30 HZ, OR 50 HZ)
THREE SELECTABLE INPUT GAINS (26 DB, 32 DB, OR 1.2 V)
FRONT AND REAR PANEL LEDS INDICATE STATUS OF SWITCH SETTINGS AT A GLANCE
PARALLEL DATAPORT, XLR/M AND XLR/F CONNECTORS FOR SIMPLE LOOP-THROUGH CONNECTIVITY
NEUTRIK SPEAKON® AND "TOUCH PROOF" BINDING POST OUTPUTS
NEUTRIK POWERCON® POWER CABLE REMAINS SECURE ON THE ROAD

SPECIFICATIONS
STEREO MODE, BOTH CHANNELS DRIVEN
8 OHMS EIA 1 KHZ 1% THD 1500 W
4 OHMS EIA 1 KHZ 1% THD 2500 W
2 OHMS EIA 1 KHZ 1% THD 4000 W
BRIDGE MONO MODE
8 OHMS EIA 1 KHZ 1% THD 5000 W
4 OHMS EIA 1 KHZ 1% THD 8000 W
TYPICAL DISTORTION
(20 HZ -3 KHZ, 3DB BELOW CLIP, OR 20 HZ - 5 KHZ, 10DB BELOW CLIP, OR 20 HZ - 20 KHZ, 20DB BELOW CLIP) 8 OHMS 0.01-0.03%
4 OHMS 0.03-0.06%
2 OHMS 0.1%
MAXIMUM DISTORTION
(20 HZ - 20 KHZ, 1 DB BELOW RATED POWER) 4 TO 8 OHMS 0.2%
FREQUENCY RESPONSE (8 OHMS) 20 HZ - 20 KHZ, +/-0.2 DB
NOISE (20 HZ - 20 KHZ, 32 DB GAIN) -104 DB
DYNAMIC HEADROOM (4 OHMS) 2 DB
DAMPING FACTOR (8 OHMS) 200
OUTPUT CIRCUITRY CLASS D
INPUT SENSITIVITY 26 DB SETTING 5.27V
32 DB SETTING 2.67V
INPUT GAIN (1.2V SETTING) 39.1 DB
MAXIMUM INPUT LEVEL 1.2V SETTING 10V (+22 DB)
32 DB SETTING 22V (+29 DB)
26 DB SETTING 25V (+30 DB)
AC POWER REQUIREMENTS 120V 50/60 HZ 18A
230V 50 HZ 11A
CORDSET 120V 50/60 HZ NEMA L5-30P
230V 50 HZ CEE 7/7 16A
CHASSIS POWER CONNECTOR ALL VOLTAGES 32A POWERCON
INPUT IMPEDANCE > 10K OHMS BALANCED, OR UNBALANCED
COOLING VARIABLE-SPEED FAN, REAR-TO-FRONT AIR FLOW
CONNECTORS (EACH CHANNEL) INPUT: XLR MALE, XLR FEMALE AND 3-PIN DETACHABLE TERMINAL BLOCKS (1 EACH PER CHANNEL)
OUTPUT: NEUTRIK SPEAKON® (CH 1 WIRED TO BOTH CHANNELS) AND 5-WAY BINDING POSTS
DATAPORT: HD-15, INPUT SIGNAL IN PARALLEL WITH XLR INPUT CONNECTORS
FRONT CONTROLS AC POWER SWITCH
GAIN CONTROLS, 21 DETENTS, 1 DB STEPS (EACH CHANNEL)
FRONT INDICATORS (LED COLOR) POWER (BLUE)
BRIDGED (YELLOW)
PARALLEL (ORANGE)
CLIP/PROT (RED X 2)
LEVEL -10 (ORANGE X 2)
LEVEL -20 (GREEN X 2)
SIGNAL -35 (GREEN X 2)
REAR CONTROLS (WITH LED INDICATORS) INPUT MODE: BRIDGE (YELLOW), STEREO (GREEN), OR PARALLEL (ORANGE)
GAIN / SENSITIVITY: 26DB (ORANGE), 32DB (GREEN), OR 1.2V (YELLOW)
HIGH PASS (EACH CHANNEL): 3 HZ (OFF), 30 HZ (YELLOW), OR 50 HZ (ORANGE)
CLIP LIMITER (EACH CHANNEL): OFF, ON (YELLOW)
AMPLIFIER AND LOAD PROTECTION SHORT CIRCUIT, OPEN CIRCUIT, THERMAL, RF PROTECTION. ON/OFF MUTING, DC FAULT SHUTDOWN, ACTIVE INRUSH LIMITING
DIMENSIONS HEIGHT: 3.5" (8.9 CM) 2RU
WIDTH: 19" (48.3 CM)
DEPTH: 15.63" (39.7 CM) FROM FRONT MOUNTING RAILS
WEIGHT 24 LBS (11 KG)
AGENCY APPROVALS UL, CE, ROHS/WEEE COMPLIANT, FCC CLASS B (CONDUCTED AND RADIATED EMISSIONS)

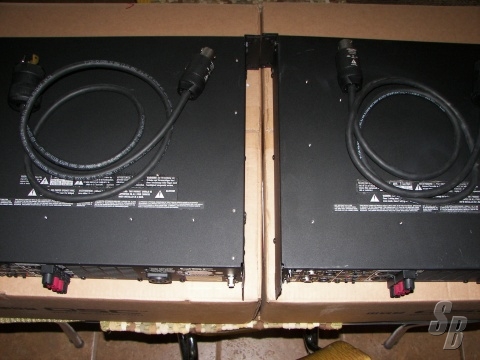

EXTRAS: COMES WITH MFG 30AMP CABLE

MODIFICATIONS: NO MODIFICATIONS

HISTORY: THESE AMPS WERE PURCHASED IN MAY 2011 AND WERE IN THE AMP RACK UNTIL JULY 2012 WHEN I TOOK THEM OUT. THEY WERE USED ON 8 GIGS.

COMMENTS: THE ONLY REASON I DIDN'T LIST THEM AS LIKE NEW WAS THERE IS A TINY BIT OF RACK RASH FROM WHERE THEY WERE PUT IN AND REMOVED FROM THE RACK. OTHER THAN THAT THEY ARE 100%.

THIS UNIT WAS NEVER TOURED
