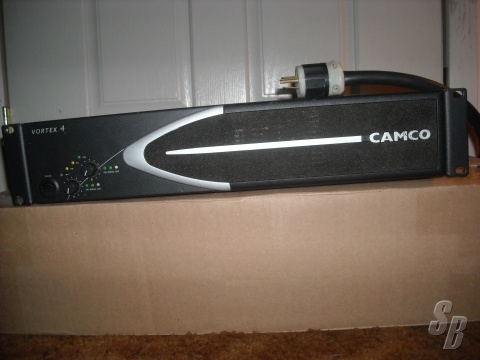

CAMCO VORTEX V4
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on December 23, 2009 - Viewed 238 times

CAMCO VORTEX V 4 (YOM: ?) (S#: ?) GOOD (7-8)

FEATURES: SPECIFICATIONS
OUTPUT POWER
VORTEX 4
16 OHMS 500 W
8 OHMS 930 W
4 OHMS 1570 W
2 OHMS 2300 W
PEAK 2490 W
16 OHMS MONO/BRIDGED 1860 W
8 OHMS 3140 W
4 OHMS 4600 W

OUTPUT VOLTAGE
PEAK @ 8 OHMS 90 V 130 V 150 V 180 V 90 V
PEAK, NO LOAD 96 V 138 V 162 V 195 V 101 V

NET WEIGHT 11,7 KG 11,7 KG 12 KG 12,2 KG 10,8 KG
SHIPPING WEIGHT 14 KG 14 KG 14,3 KG 14,5 KG 13,1 KG

CIRCUITRY BIPOLAR, CLASS H
FREQUENCY RESPONSE 20 HZ - 20 KHZ ± 0,15 DB
8 OHMS LOAD, 1 DB BELOW RATED POWER
INPUT IMPEDANCE 40 K OHMS BALANCED
VOLTAGE GAIN SELECTABLE: 26 DB, 32 DB, OR 1,4 V INPUT SENSITIVITY
PROTECTION CIRCUITS INRUSH-CURRENT LIMITATION, PROTECTION CIRCUITS AGAINST POWER ON/OFF TRANSIENTS, TEMPERATURE MONITORING OF TRANSFORMERS AND HEAT-SINKS, OUTPUT DC PROTECTION, POWER TRANSISTOR CONTROL, TEMPERATURE DEPENDENT SOA PROTECTION, INTELLIGENT MAINS FUSE PROTECTION
LIMITER SWITCHABLE PEAK-LIMITER
FAN 2 TEMPERATURE DEPENDENT SPEED-CONTROLLED
AXIAL FANS

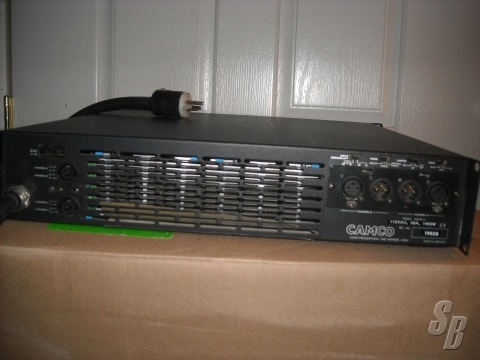

GROUND-LIFT INPUT GROUND-LIFT SWITCH ON BACK PANEL
INDICATORS LED'S FOR ON, SIGNAL, CLIP, DC, HIGH TEMP,
OUTPUT CURRENT
INPUT CONNECTORS 3-PIN XLR, MALE AND FEMALE PER CHANNEL,
PIN 2 = INPHASE
OUTPUT CONNECTORS 5) ONE 4-POLE SPEAKON CONNECTOR FOR EACH OUTPUT CHANNEL (BI-AMPING POSSIBLE)
MODES OF OPERATION STEREO, BRIDGE MONO AND PARALLEL-MONO
OPTIONS EXTENDED USER INTERFACE / E.U.I. - MODULES FOR ANY KIND OF EQ
SIGNAL TO NOISE-RATIO > 107 DB (UNWEIGHTED)
> 110 DB (A-WEIGHTED)
20 HZ - 20 KHZ, 8 OHMS LOAD
THD+N (TYPICAL) < 0,01 %
20 HZ - 20 KHZ, 8 OHMS LOAD,
3 DB BELOW RATED POWER
SMPTE (TYPICAL) < 0,01 %
20 Hz - 20 kHz, 8 ohms load,
3 dB below rated power
Damping Factor > 400
8 OHMS LOAD, 1 KHZ AND BELOW


THIS IS A USA 115 VAC 20 AMP VERSION

EXTRAS: NONE

MODIFICATIONS: NONE

HISTORY: POWERING MIDS

COMMENTS: CLEAN UNIT NO PROBLEMS.

THIS UNIT WAS NEVER TOURED
