CREST PL7001 (YOM: "?") (S#: "?") AVERAGE FOR AGE (6-7)
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on March 09, 2009 - Viewed 152 times

DESCRIPTION: CREST PL7001 (YOM: "?") (S#: "?") AVERAGE FOR AGE (6-7)

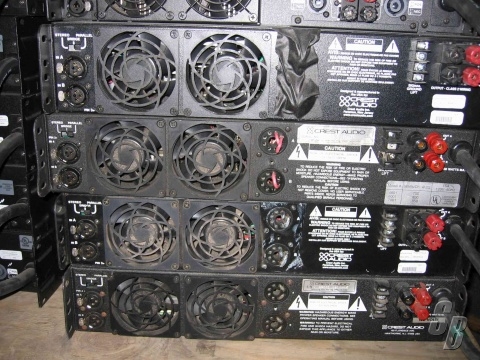

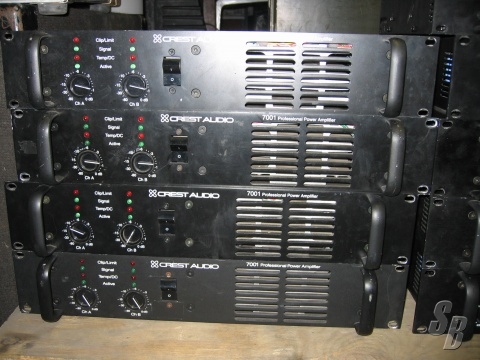

FEATURES: UP FOR SALE IS A USED CREST 7001.. THESE WERE USED FOR AN INSTALL, SO THEY'RE NOT BEAT UP. ALL WORK. NO INTERNATIONAL SHIPPING

POWER SPECIFICATIONS 8ΩSTEREO 4ΩSTEREO 2ΩSTEREO 8ΩBRIDGED 4ΩBRIDGED
1KHZ, <0.02% THD+N 560W 810W 850W 1650W 1700W -
20HZ-20KHZ, <0.05% THD+N 550W 715W 850W 1510W 1600W -
FIGURES ARE WATTS PER CHANNEL, BOTH CHANNELS DRIVEN. CONTINUOUS SINE WAVE POWER IS LIMITED BY CURRENT RATING OF FRONT PANEL CIRCUIT BREAKER AND IGM CIRCUIT.
PRODUCT DESCRIPTION
THE CREST AUDIO 7001 POWER AMPLIFIER IS A COMPACT, HIGH-POWER
AMPLIFIER DESIGNED TO MEET THE STRINGENT NEEDS OF PROFESSIONAL USE
IN CONCERT TOURING, HIGH QUALITY SOUND REINFORCEMENT, PROFESSIONAL
FIXED INSTALLATIONS, AND STUDIO MONITORING.
A TWO RACK-SPACE AMPLIFIER, THE 7001 USES FORCED-AIR TO COOL
CHANNEL HEAT SINKS MOUNTED IN A BACK-TO-BACK TUNNEL CONFIGURA-
TION. STEREO, PARALLEL, AND BRIDGED MONO OPERATING MODES CAN BE
CHOSEN WITH A REAR-PANEL MODE SELECT SWITCH. AN ACTIVELY BAL-
ANCED FEMALE XLR INPUT CONNECTION AND 5-WAY OUTPUT BINDING
POSTS ARE PROVIDED FOR EACH CHANNEL.
THE 7001 IS FULLY COMPATIBLE WITH THE OTHER CREST AUDIO
PROFESSIONAL SERIES AMPLIFIERS, OCTAL SOCKET ACCESSORIES AND THE
NEXSYS®COMPUTER-CONTROLLED AUDIO SYSTEM.
DESIGN AND CONSTRUCTION
THE NO-COMPROMISE APPROACH IN THE 7001’S ELECTRICAL DESIGN AND
MECHANICAL CONSTRUCTION PROVIDES THE ULTIMATE IN RELIABILITY AND
PERFORMANCE. ONLY HIGH-GRADE COMPONENTS ARE USED FOR THE MOD-
ULAR SUB-ASSEMBLIES IN THIS ULTRA-STRONG, SINGLE PIECE STEEL CHASSIS.
7001 FEATURES
• NEXSYS-READY
• TOROIDAL POWER TRANSFORMER
• TUNNEL COOLING
• DUAL, VARIABLE SPEED DC FANS
• HIGH THERMAL MASS HEAT SINKS
• BALANCED XLR INPUTS
• 5-WAY OUTPUT BINDING POST CONNECTORS
• STEREO/PARALLEL/BRIDGED MONO MODE SELECTOR SWITCH
• REAR PANEL GROUND LIFT JUMPER
• EXTENSIVE PROTECTION CIRCUITRY:
- CLIP LIMITING PREVENTS SPEAKER DAMAGE WITH GENTLE GAIN
REDUCTION AT CLIP THRESHOLD.
- IGM (INSTANTANEOUS GAIN MODULATION) MONITORS CONNECTED
LOADS TO DETECT CONDITIONS THAT MAY OVERSTRESS OUTPUT
DEVICES, ALLOWING SAFE OPERATION INTO NOMINAL 2ΩIMPED-
ANCES.
- AUTORAMP GRADUALLY INCREASES GAIN TO ATTENUATOR SETTING
LEVEL WHEN AMPLIFIER IS TURNED ON.
- OTHER PROTECTION CIRCUITRY: COMPREHENSIVE THERMAL MANAGE-
MENT, AND SHORT CIRCUIT, DC VOLTAGE, TURN-ON/OFF TRANSIENT,
CURRENT INRUSH AND SUB/ULTRASONIC INPUT PROTECTION.
• ULTRA-STRONG, SINGLE PIECE STEEL CHASSIS
• OCTAL ACCESSORY SOCKETS
• RECESSED, STEPPED ATTENUATORS
• FRONT PANEL CIRCUIT BREAKER/POWER SWITCH
• MODULAR CONSTRUCTION
• FIVE-YEAR WARRANTY
(USA, CANADA, U.K. & MANY OTHER COUNTRIES).
® CREST PROFESSIONAL SERIES AMPLIFIERS
ARE FULLY COMPATIBLE WITH THE NEXSYS
COMPUTER-CONTROLLED AUDIO SYSTEM.
7001
POWER AMPLIFIER
V. 2.2 3/25/97 B5000002

ARCHITECT’S & ENGINEER’S SPECIFICATIONS
THE POWER AMPLIFIER SHALL HAVE TWO CHANNELS. EACH CHAN-
NEL SHALL DELIVER A MINIMUM OF 550 WATTS AT 8 OHMS, 715
WATTS AT 4 OHMS AND 850 WATTS AT 2 OHMS; PER CHANNEL, BOTH
CHANNELS DRIVEN, 20HZ-20KHZ, <0.05% THD+N. IN
BRIDGED MONO MODE, IT SHALL DELIVER A 1510 WATTS AT 8
OHMS, AND 1600 WATTS AT 4 OHMS, 20 HZ-20KHZ, <0.05%
THD+N.
THE AMPLIFIER SHALL BE REAR-TO-FRONT TUNNEL-COOLED, WITH TWO
VARIABLE-SPEED DC FANS.
THE AMPLIFIER SHALL HAVE CIRCUITRY TO PROTECT ITSELF AND THE
SPEAKER LOAD FROM OUTPUT SHORT CIRCUITS, DC VOLTAGE ON OUT-
PUTS, AND THERMAL OVERLOAD. THE AMPLIFIER SHALL INCLUDE CIR-
CUITRY TO GRADUALLY INCREASE GAIN TO ATTENUATOR SETTING LEV-
ELS WHEN THE AMPLIFIER IS TURNED ON, AND CIRCUITRY FOR
IMPEDANCE SENSING AND CLIP LIMITING.
THE AMPLIFIER SHALL HAVE A VOLTAGE GAIN OF X40 WITH AN
INPUT SENSITIVITY OF 1.4V FOR RATED POWER AT 4 OHMS. THE
HUM AND NOISE LEVEL SHALL BE GREATER THAN 100 DB BELOW
RATED OUTPUT, “A” WEIGHTED. SMPTE IMD SHALL BE LESS
THAN 0.1%, RATED POWER AT 8Ω, 60HZ &7KHZ. THE AMPLIFIER
SHALL HAVE A CLASS H OUTPUT STAGE WITH A MODULATED POWER
SUPPLY. THE FREQUENCY RESPONSE SHALL BE GREATER THAN
20HZ-20KHZ, +0/-0.3DB (1W/8Ω).
THE AMPLIFIER SHALL OPERATE AT 100-240V, 50-60 HZ AC
(CONFIGURED AT FACTORY). MAXIMUM CURRENT DRAW SHALL NOT
EXCEED 21 AMPERES AT 120VAC, (CIRCUIT BREAKER LIMITED),
WITH BOTH CHANNELS DRIVING CONTINUOUSLY INTO A 4 OHM RESIS-
TOR.
THE AMPLIFIER FRONT PANEL SHALL INCLUDE ACTIVE, TEMP/DC,
SIGNAL PRESENT AND CLIP/LIMIT LED INDICATORS FOR EACH
CHANNEL, A COMBINATION POWER SWITCH/MAGNETIC CIRCUIT
BREAKER AND RECESSED AND DETENTED GAIN POTS.
REAR PANEL INPUT CONNECTORS SHALL BE ACTIVELY BALANCED AND
HAVE FEMALE XLR-TYPE, 3-PIN CONNECTORS (PIN 3+). OUTPUT
CONNECTORS SHALL BE 5-WAY OUTPUT BINDING POSTS. OCTAL
SOCKETS FOR OPTIONAL ACCESSORY MODULES AND A
SIGNAL/GROUND LIFT JUMPER SHALL BE PROVIDED.
A REAR-PANEL AC MAINS CORD HAVING AN APPROPRIATE AC
PLUG FOR THE INTENDED OPERATING VOLTAGE SHALL BE PROVIDED
(MARKET DEPENDENT).
THE PACKAGING OF THE AMPLIFIER SHALL ALLOW FOR STANDARD
RACK MOUNTING WITHOUT REQUIRING SPACE BETWEEN SIMILAR
UNITS. DIMENSIONS SHALL BE 3.5" (89MM) HIGH X 19"
(483MM) WIDE X 15" (381MM) DEEP. IT SHALL WEIGH 52.0 LBS.
(23.6KG) NET. THE AMPLIFIER SHALL BE DESIGNATED THE CREST
AUDIO MODEL 7001.

EXTRAS: NO

MODIFICATIONS: NO

HISTORY: WAS USED IN A CLUB INSTALL.

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
