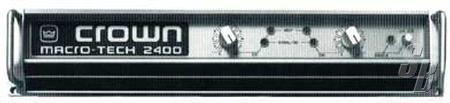

CROWN MACRO TECH 2400

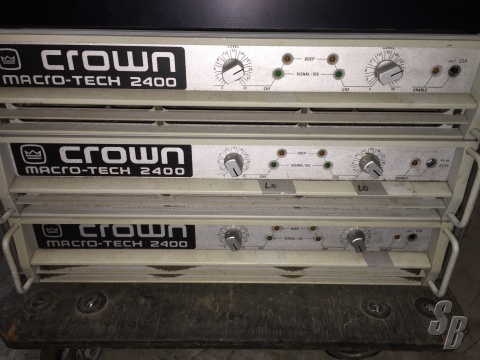

[PRICED PER UNIT - 6 AVAILABLE AT TIME OF LISTING]
Listing last update on July 14, 2015 - Viewed 162 times

CROWN MA2400 (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: KEY FEATURES:
• PATENTED ODEP (OUTPUT DEVICE EMULATION PROTECTION) CIRCUITRY COMPENSATES FOR OVERHEATING AND OVERLOAD
• IOC (INPUT/OUTPUT COMPARATOR) CIRCUITRY IMMEDIATELY INDICATES ANY DISTORTION EXCEEDING 0.05% GIVING DYNAMIC PROOF OF PERFORMANCE
• TWO MONO MODES (BRIDGE-MONO AND PARALLEL-MONO) FOR DRIVING A WIDE RANGE OF LOAD IMPEDANCES AND CABLE LENGTHS
• FULL PROTECTION AGAINST SHORTED OUTPUTS, OPEN CIRCUITS, MISMATCHED LOADS, GENERAL OVERHEATING, HIGH FREQUENCY OVERLOADS. LOUDSPEAKER PROTECTION AGAINST LOW FREQUENCY AND DC OUTPUT.
• PLUG-IN PIP CARD FACILITY

SPECIFICATIONS:
OUTPUT POWER: 1100W CONTINUOUS @2? 20HZ-20KHZ 800W CONTINUOUS @4? 20HZ-20KHZ 520W CONTINUOUS @8? 20HZ-20KHZ
(BRIDGE MONO) 1650W CONTINUOUS @8? 20-20KHZ
FREQUENCY RESPONSE: 20HZ - 20KHZ ±0.1DB @1W
PHASE RESPONSE: ±10° FROM 10HZ - 20KHZ @1W
SIGNAL TO NOISE RATIO: >105DB 20HZ - 20KHZ BELOW RATED OUTPUT AT 26DB GAIN
THD: <0.05% FROM 20HZ TO 1KHZ AND INCREASING LINEARLY TO <0.1% AT 20KHZ, DELIVERING FULL RATED POWER INTO 8 OHMS PER CHANNEL
IM DISTORTION: <0.05% from 10mW to full rated output at 26dB gain
Damping factor: >1000 FROM 10HZ TO 400HZ
SLEW RATE: >13 VOLTS PER MICROSECOND (STEREO)
VOLTAGE GAIN: 20:1 ±3% OR 26 DB ±0.25DB
MAINS POWER: 100/120/220/230/240 VAC 50/60HZ
DIMENSIONS: 2U STANDARD RACK MOUNT X 406MM DEEP
WEIGHT: 23.5KG


EXTRAS: NO EXTRAS

MODIFICATIONS: NO MODIFICATIONS

HISTORY: LIGHT REGIONAL USE, NO TOURING

COMMENTS: VERY CLEAN

THIS UNIT WAS NEVER TOURED
