CYBERLOGIC NC-812 8 CH. 1200W/ CH. 208V AMPLIFIER
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on January 06, 2012 - Viewed 693 times

CYBERLOGIC NC-812 (YOM: ?) (S#: 984100) GOOD (7-8)

FEATURES: THIS IS A GREAT SOUNDING AMPLIFIER OF WHICH WE USE MULTIPLES, OF ON A REGULAR BASIS. THEY HAVE SERVED US VERY WELL AND WE CONTINUE TO ENJOY ITS BENEFITS ON A REGULAR BASIS.

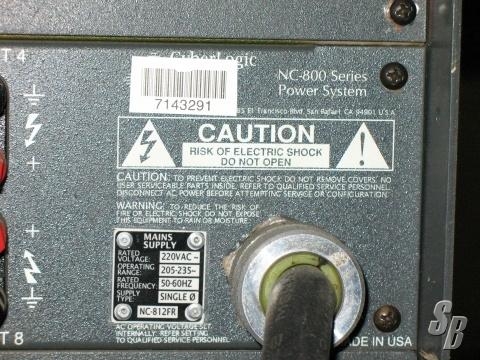

THIS IS AN 8 CHANNEL POWER AMPLIFIER WHICH CAN GENERATE 1200W PER CHANNEL @ 4OHMS. AS YOU WILL SEE FROM ONE OF THE PICTURES, IT HAS A VOLTAGE RANGE OF 205V - 235V AND IS A SINGLE PHASE AMP. SO THIS WILL NOT PLUG IN TO ANY REGULAR 110V OUTLET AND WORK - IT REQUIRES A SINGLE PHASE 208V ELECTRICAL TIE-IN (2 HOTS, NEUTRAL AND GROUND). THESE AMPLIFIERS ARE VERY HEAVY - ALMOST 200LBS EACH AND TAKES UP 7 RACK SPACES.

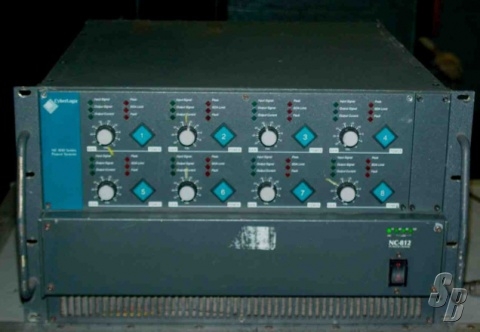

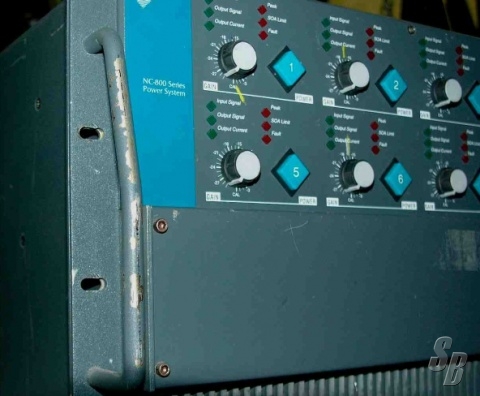

EACH AMP. CHANNEL HAS THE FOLLOWING FEATURES ON OUTSIDE OF THE FRONT PANEL:

ON/ OFF SWITCH (THE GREEN DIAMOND) WHICH LIGHTS UP ONCE THAT CHANNEL IS ON,

ROTARY INDENTED GAIN CONTROL,

6 LEDS EACH OF WHICH INDICATES: INPUT SIGNAL, OUTPUT SIGNAL, OUTPUT CURRENT, PEAK, LIMIT, FAULT

HOWEVER, ONCE YOU REMOVE THE FRONT, MOUNTED ON THE REAR SIDE OF THAT ARE THREE SMALL ROTARY CONTROLS FOR INPUT SENSITIVITY, LIMITING, AND I AM NOT SURE WHAT THE THIRD CONTROL IS FOR.


EXTRAS: NO

MODIFICATIONS: NO MODIFICATIONS

HISTORY: PURCHASED AS A USED MODEL. TESTED AND STORED IN A CLEAN DRY WAREHOUSE.

COMMENTS: ALL EIGHT CHANNELS TESTED AND WORKING

THIS UNIT WAS NEVER TOURED
