LAB GRUPPEN FP 2200
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on May 08, 2014 - Viewed 385 times

PLEASE NOTE: AS THIS LISTING IS IN THE PRICE RANGE OF OUR DIRECT SALES PROGRAM, SOUNDBROKER.COM WOULD PREFER THAT ONLY VIP LOYALTY CLUB MEMBERS PURCHASE THIS ITEM DIRECTLY FROM THE SELLER AND SAVE MONEY.

TO SAVE A MINIMUM OF $150 OF THE POSTED SOUNDBROKER.COM'S SELLING PRICE BECOME A VIP-LOYALTY CLUB MEMBER AND BUY THIS DIRECTLY FROM THE SELLER.

JUST REMEMBER WHEN GOING DIRECT THESE 4 MAIN POINTS (AS DESCRIBED IN DETAIL IN OUR MEMBERSHIP AGREEMENT):

1)  BUYER AND SELLER BEWARE AND YOU AGREE TO HOLD SOUNDBROKER.COM HARMLESS

2) THE AGGREGATE VALUE OF THE GEAR MUST BE $2,500.00 OR LESS

3) IF EITHER PARTY WANTS SOUNDBROKER.COM TO HOLD THE MONEY, BOTH PARTIES MUST AGREE AND THERE IS A 3% FEE

4) SOUNDBROKER.COM HAS RIGHT TO OFFER A QUOTE FOR SHIPPING SERVICES (OPTIONAL)

CALL OUR OFFICE AT 702-736-3003 FOR THE DETAILS OR FOR ALL THE DETAILS VISIT HTTP://WWW.SOUNDBROKER.COM/DIRECT2SELLER/

********************************************************************

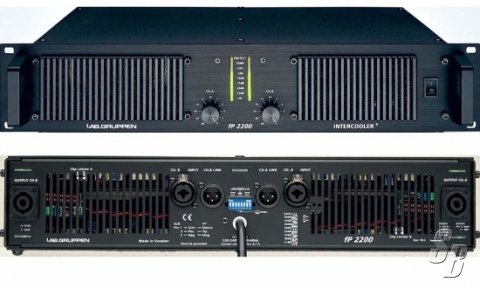

LAB.GRUPPEN FP 2200 (YOM: ?) (S#: TBD) UNOPENED BOX - NEVER USED (10)

FEATURES:

THE FP 2200 IS A LIGHTWEIGHT AND SPACE-SAVING POWER AMPLIFIER, IDEAL FOR USE IN HIGH QUALITY TOURING SOUND SYSTEMS AS WELL AS IN DEMANDING PERMANENT INSTALLATIONS.
THE LATEST SEMICONDUCTOR TECHNOLOGY IS UTILIZED IN THE NEW FERRITE POWER (FP) AMPLIFIERS. THIS, TOGETHER WITH LAB.GRUPPEN’S PROPRIETARY COPPER COOLING SYSTEM, INTERCOOLER, ENHANCES THE 2 OHMS CAPABILITY.

TWO EASILY ACCESSIBLE DUST FILTERS ON THE FRONT ENSURE A CLEAN FRONT-TO-REAR AIRFLOW. A NEW BI-PHASE WIRING SCHEME ALSO INCREASES THE CAPACITY OF THE SWITCH MODE POWER SUPPLY. THIS EXTENDS THE POWER BANDWIDTH IN THE LOW END.
BESIDES THE TRADITIONALLY SUPERB LAB.GRUPPEN SONIC PERFORMANCE, THERE IS A FULL LINE OF FEATURES TO MAKE THE FP FAMILY FUNCTIONAL IN ALL SITUATIONS FROM INSTALLATION TO HIGH PERFORMANCE LIVE SOUND SYSTEMS: REGULATED SWITCH MODE POWER SUPPLY
TODAY THERE ARE MANY LIGHTWEIGHT, SWITCH-MODE AMPLIFIERS IN THE MARKET. HOWEVER,
THE UNIQUE LAB.GRUPPEN SWITCH MODE POWER SUPPLY TECHNOLOGY OFFERS A NUMBER OF ESSENTIAL ADVANTAGES THAT MAKE IT SUPERIOR TO OTHER SEEMINGLY SIMILAR POWER SUPPLY DESIGNS.

THE MOST IMPORTANT FEATURES ARE THE REGULATED POWER SUPPLY AND THE EXTREME POWER
EFFICIENCY. THE REGULATED POWER SUPPLY EASILY DEALS WITH A VERY HIGH VARIATION IN THE AC
MAINS VOLTAGE: IT CAN DROP BY UP TO 20% BELOW ITS NOMINAL LEVEL - E.G. TO 180 V (90V)
INSTEAD OF 230 V (115V) - WITHOUT ANY PROBLEM. PERHAPS EVEN GREATER BENEFITS RESULT FROM THE EXTREME EFFICIENCY OF LAB.GRUPPEN AMPLIFIERS:

ONLY A FRACTION OF THE ENERGY FROM THE AC MAINS IS TURNED INTO HEAT. A REGULATED POWER SUPPLY ALSO PRESENTS SOME OTHER SONIC ADVANTAGES, SUCH AS BETTER CONE CONTROL AND THE SAME FAST RESPONSE AS A CONVENTIONAL POWER SUPPLY MULTIPLE POSITIONS GAIN SWITCH TO MEET THE DEMANDS FOR A FLEXIBLE GAIN STRUCTURE IN THE SYSTEM, LAB.GRUPPEN OFFERS A MULTIPLE POSITION GAIN DIP SWITCH.

THE MAXIMUM AMPLIFIER GAIN CAN BE SET TO ALL INDUSTRY STANDARDS: 20, 23, 26, 29, 32, 35, 38 AND 41 DB.
SOPHISTICATED PROTECTION CIRCUITRY, COMBINING:
ALS SHORT CIRCUIT PROTECTION; THE ADAPTIVE LIMITING SYSTEM PERMITS VERY HIGH PEAK CURRENTS, BUT KEEPS THE AMPLIFIER WITHIN THE SAFE OPERATION AREA.

DC PROTECTION; PROTECTS AGAINST INFRASONIC SIGNALS.
VHF PROTECTION; PROTECTS THE LOUDSPEAKERS AGAINST STRONG VERY HIGH FREQUENCY NONMUSICAL SIGNALS ABOVE THE AUDIBLE RANGE.
THERMAL PROTECTION; PREVENTS THE AMPLIFIER FROM BEING OVERHEATED. THE PROTECTION
INDICATORS ON THE FRONT PANEL ARE SWITCHED ON, AS A WARNING, BEFORE THE PROTECTION PROCESS IS INITIATED.

AC PROTECTION; SHUTS DOWN THE POWER SUPPLY IF THE LINE VOLTAGE IS OUTSIDE THE
OPERATING VOLTAGE.
CLIP LIMITER; PREVENTS SEVERELY CLIPPED WAVEFORMS FROM REACHING THE LOUDSPEAKERS, WHILST MAINTAINING FULL PEAK POWER.

2 X 350 WATTS @ 8 OHMS
2 X 650 WATTS @ 4 OHMS
2 X 1100 WATTS @ 2 OHMS

EXTRAS: NONE

MODIFICATIONS: NONE

HISTORY: NONE

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
