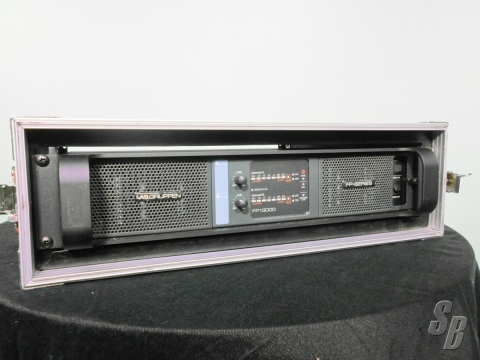

LAB GRUPPEN FP13000 (IN ROAD CASE)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 11, 2014 - Viewed 160 times

LAB.GRUPPEN FP13000 (YOM: ?) (S#: TBD) LIKE NEW (9-10)

FEATURES: GENERAL FEATURES:
2 CHANNEL TOURING AMPLIFIER WITH BINDING POSTS
HIGH POWER DENSITY – THE FP 13000 DELIVERS A TOTAL OF 13000 W (2 X 6500 W @ 2 OHMS) IN ONLY 2U
LAB.GRUPPEN SOUND QUALITY – FP 13000 AMPLIFIERS MAINTAIN THE IMPECCABLE SONIC PERFORMANCE STANDARDS SET BY THE ORIGINAL FP SERIES, WITH THE SAME DURABILITY AND EVEN GREATER EFFICIENCY.

NOMADLINK® NETWORK READY – MONITORING AND CONTROL OF KEY FUNCTIONS ACCESSIBLE VIA THE INTUITIVE DEVICECONTROL SOFTWARE AND THE ROBUST, DAISY-CHAINED NOMADLINK® NETWORK, AS WELL AS BY THE LEADING THIRD PARTY CONTROL PLATFORMS

PATENTED CLASS TD® AMPLIFIER TOPOLOGY – ROAD-PROVEN OUTPUT STAGE DELIVERS CLASS B AUDIO QUALITY WITH CLASS D EFFICIENCY

REGULATED SWITCH MODE POWER SUPPLY (R.SMPS™) – OUTPUT POWER REMAINS CONSTANT EVEN WITH SIGNIFICANT DROPS IN THE MAINS VOLTAGE

EFFICIENT COOLING SYSTEM – UNIQUE, LIGHTWEIGHT INTERCOOLER® COPPER COOLING SYSTEM DISSIPATES MORE HEAT TO ALLOW EXTENDED PEAK OUTPUT

ADJUSTABLE PARAMETERS – SELECTABLE GAIN, SCALABLE VOLTAGE PEAK LIMITER (VPL™), AND BRIDGE-MODE OPERATION ALLOW CUSTOM CONFIGURATION FOR ANY SYSTEM OR APPLICATION
XLR INPUT AND LINK CONNECTORS
HEAVY-DUTY BINDING POST OUTPUT CONNECTORS
COMPREHENSIVE PROTECTION AND WARNING – EXCESSIVE OUTPUT CURRENT, DC, HIGH TEMPERATURE, VERY HIGH FREQUENCY (VHF), SHORT CIRCUIT, OPEN LOAD, MAINS FUSE PROTECTION, AND SOFT START

POWER OUTPUT:
NUMBER OF CHANNELS: 2
PEAK TOTAL OUTPUT BOTH CHANNELS DRIVEN: 13000 W
PEAK OUTPUT VOLTAGE PER CHANNEL: 195 V
MAX. OUTPUT CURRENT PER CHANNEL: 82 A PEAK
MAX POWER RATING:
16 OHMS: 1200 WATTS X 2 CHAN.
8 OHMS: 2350 WATTS X 2 CHAN.
4 OHMS: 4400 WATTS X 2 CHAN.
2 OHMS: 6500 WATTS X 2 CHAN.
MAX POWER RATING BRIDGED:
BRIDGED, 16 OHMS: 4700 WATTS X 1 CHAN.
BRIDGED, 8 OHMS: 8800 WATTS X 1 CHAN.
BRIDGED, 4 OHMS: 13000 WATTS X 1 CHAN.

PERFORMANCE WITH GAIN: 35 DB AND VPL: 190 V
THD 20 HZ - 20 KHZ FOR 1 W: <0.1%
THD AT 1 KHZ AND 1 DB BELOW CLIPPING: <0.05%
Signal To Noise Ratio: >112 DBA
CHANNEL SEPARATION (CROSSTALK) AT 1 KHZ: >70 DB
FREQUENCY RESPONSE (1 W INTO 8 OHMS) +0/-3 DB: 2 HZ - 34 KHZ
INPUT IMPEDANCE: 20 KOHM
INPUT COMMON MODE REJECTION, CMR: 54 DB
OUTPUT IMPEDANCE @ 100 HZ: 56 MOHM

VOLTAGE PEAK LIMITER (VPL), MAX. PEAK OUTPUT
VPL, SELECTABLE PER CH: 195, 170, 140, 116, 100, 80, 66, 54V
VPL, SELECTABLE WHEN BRIDGED: 390, 340, 280, 232, 200, 160, 132, 108V
VOLTAGE PEAK LIMITER MODE (PER CH.): HARD / SOFT

GAIN AND LEVEL:
AMPLIFIER GAIN SELECTABLE (ALL CHANNELS) REAR-PANEL SWITCHES: 23, 26, 29, 32, 35, 38, 41, 44 DB
DEFAULT GAIN: 35 DB
LEVEL ADJUSTMENT (PER CH.): FRONT-PANEL POTENTIOMETER, 31 POSITION DETENTED FROM -INF TO 0 DB

CONNECTORS AND SWITCHES:

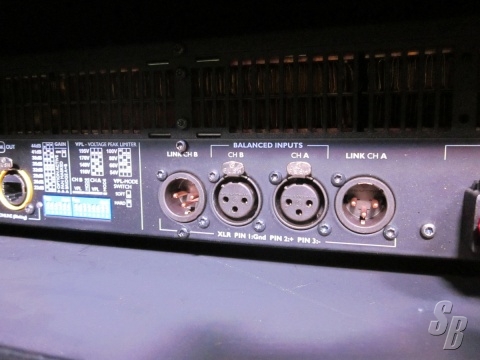

INPUT CONNECTORS (PER CH.): 3-PIN XLR, ELECTRONICALLY BALANCED

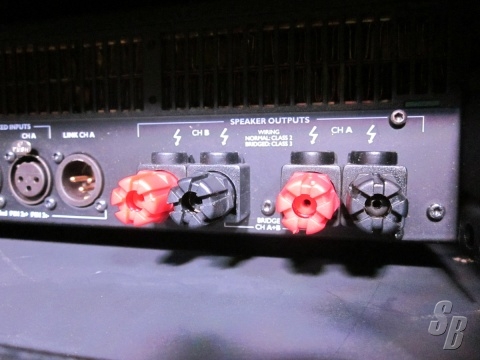

OUTPUT CONNECTORS (PER CH.): BINDING POSTS (2-POLE)
OUTPUT BRIDGE MODE: A+B - CH. A IS SIGNAL INPUT SOURCE

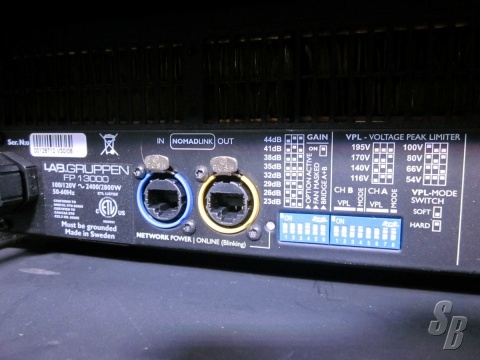

NOMADLINK® NETWORK: ON BOARD, 2 X RJ45 ETHERCON CONNECTORS, IN AND OUT
INTELLIGENT FANS (ON/OFF): YES, DEPENDING ON PRESENCE OF OUTPUT SIGNAL
POWER ON/OFF AND REMOTE ENABLE ON/OFF: INDIVIDUAL SWITCHES ON FRONT-PANEL
COOLING: TWO FANS, FRONT-TO-REAR AIRFLOW, TEMPERATURE CONTROLLED SPEED

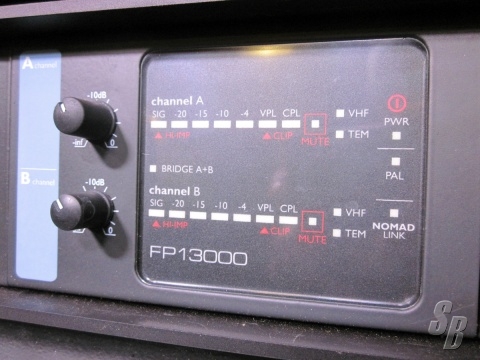

FRONT-PANEL INDICATORS:
COMMON: NOMADLINK NETWORK; POWER AVERAGE LIMITER (PAL) 2); POWER ON
PER CHANNEL: SIGNAL PRESENT / HIGH-IMPEDANCE; -20 DB, -15 DB, -10 DB AND -4 DB OUTPUT SIGNAL; VOLTAGE PEAK LIMITER (VPL); CURRENT PEAK LIMITER (CPL); VERY HIGH FREQUENCY (VHF); HIGH TEMPERATURE; FAULT; MUTE

POWER:
OPERATING VOLTAGE (230V / 115V NOMINAL): 130-265V / 65-135V
MINIMUM POWER-UP VOLTAGE 230V / 115V: 171V / 85V
POWER AVERAGE LIMITER (PAL): YES
SOFT START / INRUSH CURRENT DRAW YES / MAX. 5 A

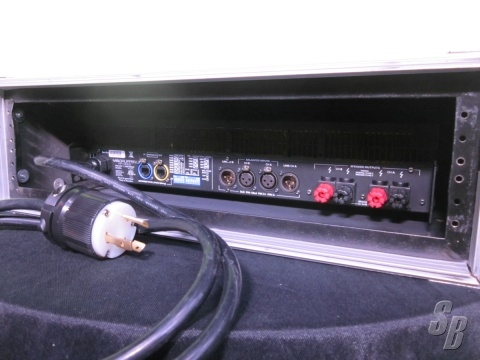

MAINS CONNECTOR: 230V CE: 16 A, CEE7; 115 V ETL: 30 A TWIST LOCK

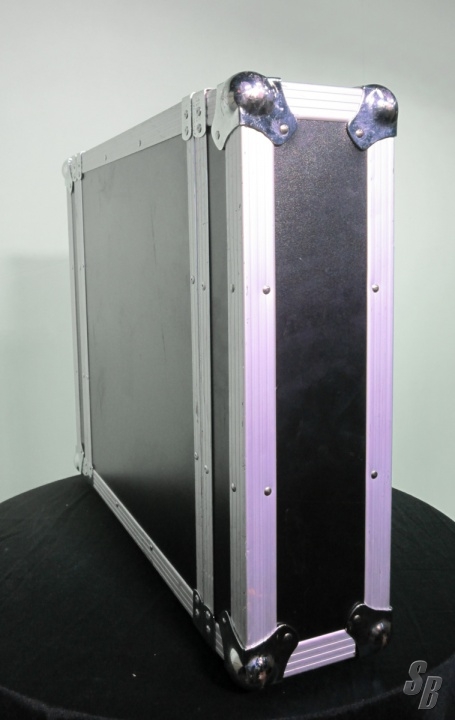

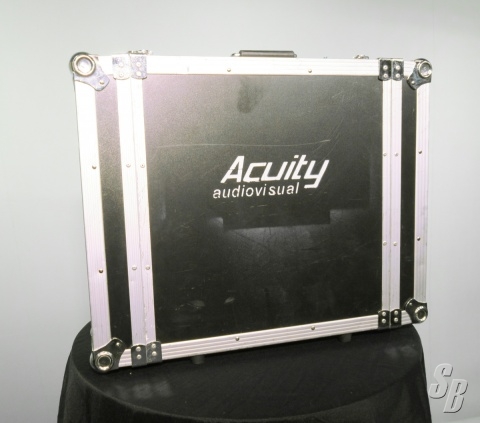

EXTRAS: ROAD CASE

MODIFICATIONS: N/A

HISTORY: LOCAL CORPORATE EVENTS ONLY

COMMENTS: N/A

THIS UNIT WAS NEVER TOURED
