ALLEN & HEATH GLD 80
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on October 24, 2014 - Viewed 250 times

THE ALLEN & HEATH GLD-80 IS A USER-FRIENDLY, COST EFFECTIVE AND SCALABLE LIVE DIGITAL MIXING SYSTEM, CONCEPTUALLY BASED ON THE HUGELY SUCCESSFUL DIGITAL ILIVE SERIES. A STANDARD GLD 32 INPUT SYSTEM OFFERS 28 XLR MIC INPUTS WITH PLUG AND PLAY I/O EXPANDERS ALLOWING EASY EXPANSION UP TO 48 INPUTS (44 XLR MIC INPUTS).

CONSOLE IS 2 YEARS OLD.

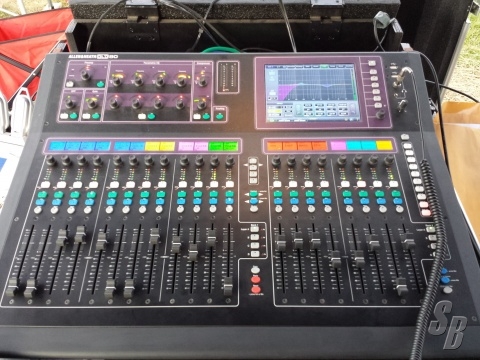

AT THE HEART OF THE SYSTEM IS THE GLD-80 MIXER, PROVIDING 48 INPUT PROCESSING CHANNELS, 8 STEREO FX RETURNS FED BY ILIVE'S ACCLAIMED FX EMULATIONS, 30 CONFIGURABLE BUSES, 20 MIX PROCESSING CHANNELS AND DSP POWER TO PROVIDE FULL PROCESSING WITHOUT COMPROMISE.

GLD-80 HAS AN ANALOG-STYLE CHANNEL PROCESSING CONTROL SECTION COMPLEMENTED BY A GRAPHICAL 8.4 INCH TOUCH SCREEN. A FULLY-CUSTOMIZABLE DRAG é®® DROP LAYOUT ALLOWS QUICK AND EASY ASSIGNMENT OF INPUTS AND MIXES TO FADER STRIPS. THERE ARE 20 FADER STRIPS IN 4 LAYERS, EACH WITH MOTORIZED FADER, A CHANNEL LCD DISPLAY WHICH CAN BE NAMED AND COLOR-CODED, PLUS A ROTARY CONTROL FOR DIRECT ACCESS TO GAIN, PAN AND AUX/FX SENDS. THE MIXERå…¨ LOCAL I/O COMPRISES 4 XLR MIC/LINE INPUTS, 4 XLR LINE OUTS, 4 RCA INPUTS, 2 RCA OUTPUTS, AND DIGITAL OUTPUTS IN SPDIF AND AES3 FORMATS.

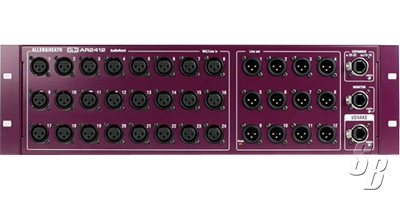

1 X AR2412 RACK (24 XLR INPUTS, 12 XLR OUTS) AR2412 ALSO INCLUDES A CONNECTION FOR PERSONAL MONITORING SYSTEMS.

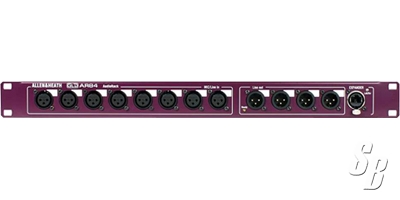

1 X AR84 EXPANDER RACK (8 XLR INPUTS, 4 XLR OUTS EACH) CAN BE CONNECTED OVER 120M CAT5 RUNS USING A&Hæ‹… DSNAKE PROTOCOL.
DSNAKE PROVIDES CONTROL TO THE REMOTE PREAMP, AND ALL MIC PREAMPS ARE SCENE RECALLABLE.

DIMENSION (UNPACKED) 28.7" X 22.7" X 6.2" (730 X 577 X 159MM)
COMES IN A&H FLIGHT CASE WITH SMALL DOG-HOUSE

UNPACKED WEIGHT 35 LBS (16KG)
