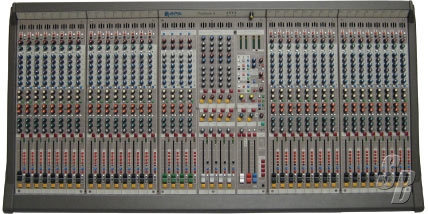

APB-DYNASONICS PRODESK-432 - 32 MONO INPUT CONSOLE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 10, 2014 - Viewed 270 times

APB-DYNASONICS PRODESK-432 - 32 MONO INPUT CONSOLE. 32 MIC/LINE MONO INPUT CHANNELS, 4 STEREO LINE INPUT CHANNELS, BASIC EQ TYPE, TRS INSERT TYPE.

PRODESK'S AUDIO DESIGN IS BASED ON OUR CRITICALLY ACCLAIMED SPECTRA SERIES CONSOLES. THIS INCLUDES THE USE OF MINIMUM PHASE-SHIFT CIRCUITRY, EXPRESSIVE EQ AND INTEGRATED MIC PREAMPLIFIERS USED IN A PROPRIETARY FRONT END CIRCUIT. IN ADDITION TO SUPERIOR AUDIO QUALITY, RELIABILITY AND SERVICEABILITY ARE ALSO PRIMARY DESIGN CRITERIA FOR PRODESK. INTERNAL CONSTRUCTION IS BASED UPON A SERIES OF PASSIVE MOTHER BOARDS AND MULTIPLE ACTIVE DAUGHTER BOARDS. THE ACTIVE ELECTRONICS OF A SINGLE INPUT CHANNEL IS DESIGNED ONTO TWO FIELD-REPLACEABLE ELECTRONICS MODULES. MODULAR MIC/LINE INPUT CHANNEL CONFIGURATIONS OF 16, 24, 32, 40 AND 48 ARE AVAILABLE PLUS ALL VERSION OF PRODESK-4 ALSO INCLUDE 4 STEREO LINE INPUT CHANNELS, ONE OF WHICH IS FITTED WITH USB DIGITAL AUDIO INPUTS. COSMETICS AND MECHANICAL STRUCTURES ARE SIMILAR TO SPECTRA, BUT WITH A NARROWER MODULE PITCH AND SHALLOWER FRONT TO BACK DIMENSIONS RESULTING IN A TRULY COMPACT DESIGN. SPECIAL PROVISION ARE PROVIDED FOR OVERALL REMOTE MUTING OF THE LEFT-RIGHT, CENTER, AND MONO OUTPUTS AS WELL AS GROUP, AUXILIARY AND MATRIX OUTPUTS BY A REAR PANEL OPTO-ISOLATED PHOENIX CONNECTOR.
PRODESK IS FITTED WITH THE SAME ULTRA RELIABLE PLUG IN POWER SUPPLY DEVELOPED FOR APB'S SPECTRA LINE OF CONSOLES. THESE AUTOMATIC SENSING SUPPLIES ARE DESIGNED TO OPERATE ON ALL CONVENTION WORLD VOLTAGES AND FREQUENCIES WITHOUT MODIFICATION. ALL BUT THE SMALLEST 16 MONO INPUT VERSION OF PRODESK MAY BE FITTED WITH AN OPTIONAL REDUNDANT (CURRENT SHARING) POWER SUPPLY. SPECIAL CARE HAS BEEN TAKEN IN THE DESIGN OF PRODESK TO REDUCE RF INTERFERENCE AND ELIMINATE ANY PIN-1 RELATED PROBLEMS.

PRODESK-4 FEATURE OVERVIEW:

AVAILABLE IN MODULAR BLOCKS OF 16, 24, 32, 40, AND 48 MIC/LINE INPUT CHANNELS.
ALL VERSIONS INCLUDE 4 STEREO LINE INPUT CHANNELS WITH SPLIT TRACK CAPABILITIES.
INPUT CHANNELS INCLUDE HIGH QUALITY 100MM FADERS, INTERNALLY ILLUMINATED MUTE AND
PFL SWITCHES, 6 SEGMENT CHANNEL METERING, 48 VOLT PHANTOM POWER SWITCH WITH LED, MIC/LINE,
PAD AND POLARITY REVERSE SWITCHES.
6 AUXILIARY SENDS ARE SWITCHABLE PRE/POST FADER IN PAIRS AND PRE/POST EQ AS A PRE FADER
GROUP AND INCLUDE 1 PAIR OF AUXILIARY SENDS THAT ARE SWITCHABLE BETWEEN MONO AND
STEREO OPERATION.
4 BAND EQ WITH SWEEPABLE MID-FREQUENCIES WITH A 1 OCTAVE BANDWIDTH AND EQ ON SWITCH
WITH LED,VARIABLE HIGH PASS FILTERS WITH A 20HZ-400HZ WITH ON SWITCH WITH LED.
OUTPUTS INCLUDE 6 AUXILIARY OUTPUTS, 4 ANALOG SUBGROUPS, 4 MATRIX OUTPUTS, LEFT/RIGHT,
CENTER, AND MONO (SUBWOOFER). ALL INCLUDE XLR BALANCED OUTPUT CONNECTORS, TRS PRE FADER
INSERT POINTS, AND TRS BALANCED BUS INPUTS.
DIGITAL USB STEREO INPUT AND RECORD OUTPUT.
FOUR (4) CHANNEL MUTE GROUP SYSTEM WITH INDIVIDUAL CHANNEL MUTE GROUP ACTIVE INDICATORS.
REMOTE MUTING OF ALL PRIMARY OUTPUTS USING A SINGLE OPTO-ISOLATED PHOENIX CONNECTOR AND
MAY BE CONFIGURED TO RESPOND TO AN EXTERNAL OPEN OR CLOSED (RELAY) CIRCUIT.
INTERNALLY ILLUMINATED PFL, AFL, AND MUTE INDICATORS ON ALL INPUT AND PRIMARY OUTPUT CHANNELS.
SPECTRA DERIVED CONSTRUCTION INCLUDES THE USE OF MOTHER AND DAUGHTER BOARD CONSTRUCTION
FOR EASY SERVICE AND UNCOMPROMISED PERFORMANCE.
LOW PHASE SHIFT AND EXTENDED BANDWIDTH DESIGN.
PLUG IN POWER SUPPLY (SAME UNIT AS USED ON SPECTRA CONSOLES) FOR ULTRA RELIABILITY. AN
OPTIONAL REDUNDANT POWER SUPPLY CAN BE ADDED TO ALL BUT THE 16 MONO INPUT CHASSIS SYSTEMS.
A CONSOLE COVER IS SUPPLIED WITH ALL MODELS OF PRODESK-4.
DEPTH: 23.5" MAX HEIGHT: 8.9" (WITHOUT OPTIONAL LAMPS).
WIDTH: 16 MONO INPUT 30.8", 24 MONO INPUT 38.8", 32 MONO INPUT 46.9", 40 MONO INPUT 55",
48 MONO INPUT 63.1"

PRODESK CONSOLE PRICING INCLUDES SINGLE POWER SUPPLY AND CONSOLE COVER.

MANUFACTURERS A STOCK BRAND NEW WITH FULL FACTORY WARRANTY. FOB, NJ.
