*INFORMATIONAL LISTING ONLY* APB-DYNASONICS PRODESK-832 - 32 MONO INPUT CONSOLE
[No inventory available]
Listing last update on October 24, 2023 - Viewed 394 times

*PRODUCT NO LONGER AVAILABLE - DISCONTINUED*

DID YOU KNOW? AS A MEMBER OF SOUNBROKER.COM YOU CAN TAKE ADVANTAGE OF OUR NETWORK AND SEE IF A SOUNDBROKER MEMBER HAS THE ITEM YOU NEED.

CLICK HERE TO POST A LISTING ON THE SOUNDBROKER.COM WANTED LISTINGS (OR GEAR WE NEED) AND GET NOTIFIED IF SOMEONE HAS IT OR POST IT ON OUR WEBSITE!

STILL CURRENT STATUS AS OF 03/01/2022 *** APB-DYNASONICS IS NOT ABLE TO CURRENTLY BUILD THIS ITEM - SOUNDBROKER IS NOT ABLE TO ACCEPT ORDERS AT THIS TIME ***

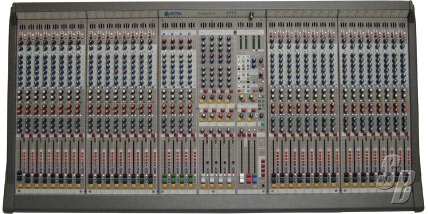

APB-DYNASONICS PRODESK-832 - 32 MONO INPUT CONSOLE. 32 MIC/LINE MONO INPUT CHANNELS, 4 STEREO LINE INPUT CHANNELS, BASIC EQ TYPE, TRS INSERT TYPE.

NOTE: AVAILABLE IN MODULAR BLOCKS OF 24, 32, 40, AND 48 MIC/LINE INPUT CHANNELS.

• ALL VERSIONS INCLUDE 4 STEREO LINE-INPUT CHANNELS WITH SPLIT-TRACK CAPABILITIES.
• INPUT CHANNELS INCLUDE HIGH QUALITY 100MM FADERS, INTERNALLY ILLUMINATED MUTE AND PFL SWITCHES, 6 SEGMENT
• CHANNEL METERING, 48 VOLT PHANTOM
• POWER SWITCH WITH LED, MIC/LINE, PAD AND POLARITY-REVERSE SWITCHES.
• 8 AUXILIARY SENDS ARE SWITCHABLE PRE/POST FADER IN PAIRS AND PRE/POST EQ AS A GROUP AND INCLUDE 2 PAIRS OF AUXILIARY SENDS THAT ARE SWITCHABLE
• BETWEEN MONO AND STEREO OPERATION, A 9TH SEND IS PROVIDED TO A DEDICATED MONO BUS BY WAY OF FIXED OR VARIABLE LEVEL ASSIGN SWITCHES FOR USE WITH SUB-WOOFERS OR AS AN ADDITIONAL POST-FADER AUX SEND.
• 4-BAND EQ WITH SWEEPABLE MID-FREQUENCIES WITH A 1 OCTAVE BANDWIDTH AND SWITCHABLE 60/120HZ LOW-FREQUENCY AND 8K/12KHZ HIGH-FREQUENCY EQ.
• A CHANNEL EQ-ON SWITCH WITH LED IS PROVIDED, VARIABLE HIGH-PASS FILTER WITH A 20HZ-400HZ RANGE WITH ON SWITCH AND LED.
• OUTPUTS INCLUDE 8 ANALOG SUBGROUPS, 8 MATRIX OUTPUTS, LEFT/RIGHT, CENTER, AND MONO (SUBWOOFER). ALL INCLUDE XLR BALANCED OUTPUT CONNECTORS, TRS PRE FADER INSERT POINTS, AND TRS BALANCED BUS INPUTS. STEREO USB DIGITAL OUTPUT DERIVED FROM L-R, CENTER, MONO, AUX 1-2 AND MATRIX 1-2.
• DIGITAL USB STEREO INPUT AND RECORD OUTPUT. DIGITAL INPUTS ASSIGNABLE TO ALL PRIMARY MIX BUSES VIA STEREO D INPUT OR STEREO PROGRAM INPUT.
• REMOTE MUTING OF ALL PRIMARY OUTPUTS USING A SINGLE OPTO-ISOLATED PHOENIX CONNECTOR.
• SPECTRA-DERIVED CONSTRUCTION INCLUDES THE USE OF MOTHER / DAUGHTER BOARD CONSTRUCTION FOR EASY SERVICE AND UNCOMPROMISED PERFORMANCE.
• LOW PHASE-SHIFT, DIRECT-COUPLED CIRCUITRY AND EXTENDED BANDWIDTH DESIGN.
• PLUG-IN POWER SUPPLY (SAME AS USED IN SPECTRA CONSOLES) FOR ULTRA RELIABILITY. AN OPTIONAL REDUNDANT POWER SUPPLY CAN BE ADDED TO ALL SIZES.
• DIMENSIONS: DEPTH: 27.25 (692MM) HEIGHT: 8.9 (226MM) WIDTH: 24 MONO INPUT 44.5 (1130MM) , 32 MONO INPUT 52.6 (1336MM),
• 40 MONO INPUT 60.7 (1542MM), 48 MONO INPUT 68.8 (1748MM)

  - PRODESK CONSOLE PRICING INCLUDES SINGLE POWER SUPPLY AND CONSOLE COVER.


CLICK HERE FOR PRODUCT DETAILS

MANUFACTURERS A STOCK BRAND NEW WITH FULL FACTORY WARRANTY. FOB, NJ.
