ID # 52657    CURRENT CATEGORY - CONSOLE

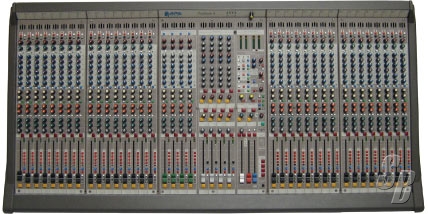

APB-DYNASONICS PRODESK-848 - 48 MONO INPUT CONSOLE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 10, 2014 - Viewed 208 times

APB-DYNASONICS PRODESK-848 - 48 MONO INPUT CONSOLE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]



APB-DYNASONICS PRODESK-848 - 48 MONO INPUT CONSOLE. 48 MIC / LINE MONO INPUT CHANNELS, 4 STEREO LINE INPUT CHANNELS, BASIC EQ TYPE, TRS INSERT TYPE.

AVAILABLE IN MODULAR BLOCKS OF 24, 32, 40, AND 48 MIC/LINE INPUT CHANNELS.
ALL VERSIONS INCLUDE 4 STEREO LINE-INPUT CHANNELS WITH SPLIT-TRACK CAPABILITIES.
INPUT CHANNELS INCLUDE HIGH QUALITY 100MM FADERS, INTERNALLY ILLUMINATED MUTE AND PFL SWITCHES, 6 SEGMENT CHANNEL METERING, 48 VOLT PHANTOM
POWER SWITCH WITH LED, MIC/LINE, PAD AND POLARITY-REVERSE SWITCHES.
8 AUXILIARY SENDS ARE SWITCHABLE PRE/POST FADER IN PAIRS AND PRE/POST EQ AS A GROUP AND INCLUDE 2 PAIRS OF AUXILIARY SENDS THAT ARE SWITCHABLE
BETWEEN MONO AND STEREO OPERATION, A 9TH SEND IS PROVIDED TO A DEDICATED MONO BUS BY WAY OF FIXED OR VARIABLE LEVEL ASSIGN SWITCHES FOR USE
WITH SUB-WOOFERS OR AS AN ADDITIONAL POST-FADER AUX SEND.
4-BAND EQ WITH SWEEPABLE MID-FREQUENCIES WITH A 1 OCTAVE BANDWIDTH AND SWITCHABLE 60/120HZ LOW-FREQUENCY AND 8K/12KHZ HIGH-FREQUENCY
EQ. A CHANNEL EQ-ON SWITCH WITH LED IS PROVIDED, VARIABLE HIGH-PASS FILTER WITH A 20HZ-400HZ RANGE WITH ON SWITCH AND LED.
OUTPUTS INCLUDE 8 ANALOG SUBGROUPS, 8 MATRIX OUTPUTS, LEFT/RIGHT, CENTER, AND MONO (SUBWOOFER). ALL INCLUDE XLR BALANCED OUTPUT CONNECTORS,
TRS PRE FADER INSERT POINTS, AND TRS BALANCED BUS INPUTS. STEREO USB DIGITAL OUTPUT DERIVED FROM L-R, CENTER, MONO, AUX 1-2 AND MATRIX 1-2.
DIGITAL USB STEREO INPUT AND RECORD OUTPUT. DIGITAL INPUTS ASSIGNABLE TO ALL PRIMARY MIX BUSES VIA STEREO D INPUT OR STEREO PROGRAM INPUT.
REMOTE MUTING OF ALL PRIMARY OUTPUTS USING A SINGLE OPTO-ISOLATED PHOENIX CONNECTOR.
SPECTRA-DERIVED CONSTRUCTION INCLUDES THE USE OF MOTHER / DAUGHTER BOARD CONSTRUCTION FOR EASY SERVICE AND UNCOMPROMISED PERFORMANCE.
LOW PHASE-SHIFT, DIRECT-COUPLED CIRCUITRY AND EXTENDED BANDWIDTH DESIGN.
PLUG-IN POWER SUPPLY (SAME AS USED IN SPECTRA CONSOLES) FOR ULTRA RELIABILITY. AN OPTIONAL REDUNDANT POWER SUPPLY CAN BE ADDED TO ALL SIZES.
DIMENSIONS: DEPTH: 27.25 (692MM) HEIGHT: 8.9 (226MM) WIDTH: 24 MONO INPUT 44.5 (1130MM) , 32 MONO INPUT 52.6 (1336MM),
40 MONO INPUT 60.7 (1542MM), 48 MONO INPUT 68.8 (1748MM)



CLICK HERE FOR PRODUCT DETAILS

MANUFACTURERS A STOCK BRAND NEW WITH FULL FACTORY WARRANTY. FOB, NJ.

Additional Details
ID#: 52657
Listing Type:
Standard
Model: PRODESK848
Manufacturer: APB DYNASONICS
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: OH, Canada
Updated: January 10, 2014
M.S.R.P.: $0.00
Asking Price: SOLD
