APB-DYNASONICS SPECTRA-C 24P - 24 MONO INPUT CONSOLE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 10, 2014 - Viewed 161 times

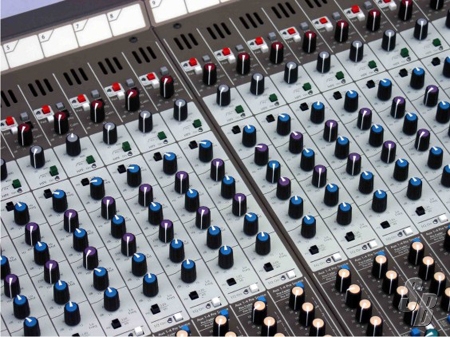

APB-DYNASONICS SPECTRA-C 24P - 24 MONO INPUT CONSOLE. 24 MIC/LINE MONO INPUTS, 4 STEREO LINE INPUT CHANNELS, BASIC EQ TYPE (HF/LF SWITCHED), TRS INSERT TYPE.

THE SPECTRA-C/CI AND SPECTRA-T/TI ARE HIGH PERFORMANCE ANALOG CONSOLES FROM APB-DYNASONICS DESIGNED TO OFFER TRULY EXCEPTIONAL SOUND QUALITY, VERSATILITY AND RELIABLE PERFORMANCE IN A RANGE OF FIXED INSTALLATION AND TOURING SOUND APPLICATIONS.

SPECTRA-C/CI AND SPECTRA-T/TI GENERAL FEATURES

AVAILABLE IN 5 CHASSIS SIZES WITH OPTIONAL 24-INPUT EXPANDER
MONO INPUT CHANNELS FEATURE HIGHEST QUALITY BURR-BROWN MICROPHONE PREAMPS
8 VCA GROUPS FOR INPUTS
OUTPUT VCA SYSTEM FOR LEFT, RIGHT, CENTER AND MONO OUTPUTS
USER-SELECTABLE VCA CONTROL ON ALL MATRIX OUTPUTS
THATï½® CORPORATION VCA ELEMENTS USED THROUGHOUT
12 MUTE GROUP SYSTEM (4 DISCRETE + 8 VCA-ASSIGNMENT LINKED)
10 AUXILIARY BUSES WITH PRE/POST FADER (4) AND PRE/POST EQ (2) SWITCHES
100MM HIGH-QUALITY FADERS ON AUX OUTPUTS WITH POLARITY REVERSE SWITCHES
AUX OUTPUTS HAVE PRE/POST ASSIGNMENT TO MATRIX SECTION AND ASSIGNMENTS TO LEFT,
RIGHT, CENTER AND MONO BUSES
4 STEREO/SPLIT-TRACK LINE INPUT CHANNELS INCLUDED ON ALL CONSOLE CONFIGURATIONS
INSERTS ON ALL PRIMARY OUTPUTS INCLUDING AUX AND MATRIX OUTPUTS
INTERNALLY ILLUMINATED SOLO AND MUTE SWITCHES
2 OR 3 SPEAKER (LCR) CONTROL ROOM MONITORING (FRONT PANEL SWITCHABLE)
2 BUS (MONO/STEREO) SOLO PFL SYSTEM, 3 BUS (MONO/STEREO/LCR) SOLO AFL SYSTEM
LEFT-RIGHT, CENTER AND MONO (SUB-WOOFER/AUX) ASSIGNMENT SYSTEM
SUBWOOFER MIX CAN BE DERIVED FROM DISCRETE MONO OR AUX ASSIGNMENT
15 X 4 MATRIX SYSTEM WITH INSERTS AND XLR BALANCED OUTPUTS
2 MONO ALTERNATE OUTPUTS WITH TRANSFORMER ISOLATED (JENSEN) BALANCED XLR OUTPUTS
STEREO (RECORD) ALTERNATE OUTPUT WITH TRS AND RCA OUTPUTS
1/8" AND 1/4" HEADPHONE OUTPUT CONNECTORS
TALKBACK SYSTEM WITH INT/EXT TB MIC AND 1 KHZ OSCILLATOR
6-SEGMENT LED METERING ON MONO INPUT CHANNELS
EIGHTEEN 15-SEGMENT LED METERS FOR OUTPUT AND SOLO MONITORING
LAMP CONNECTORS (4-PIN XLR) WITH DIMMER CONTROL (GOOSENECK LAMPS INCLUDED)
24 MONO-INPUT EXPANDER SYSTEM AVAILABLE
PRIMARY AND SECONDARY (INCLUDED) PLUG-IN POWER SUPPLIES WITH POWER FACTOR CORRECTION
(OPERATE IN EQUAL CURRENT SHARING MODE). A SINGLE SUPPLY WILL POWER THE CONSOLE SHOULD
A FAULT OCCUR TO EITHER SUPPLY.


SPECTRA CONSOLE PRICING INCLUDES TWO POWER SUPPLIES (X2 = P) , LAMPS AND CONSOLE COVER


CLICK HERE FOR PRODUCT DETAILS

MANUFACTURERS A STOCK BRAND NEW WITH FULL FACTORY WARRANTY. FOB, NJ.
