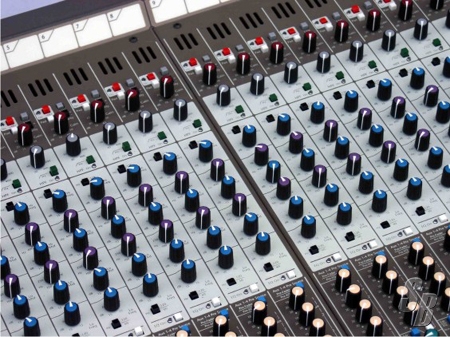

APB-DYNASONICS SPECTRA-T 40P (1 B-STOCK UNIT AVAILABLE) 40 MONO INPUT CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 10, 2014 - Viewed 171 times

B STOCK APB-DYNASONICS SPECTRA-T 40P - 40 MONO INPUT CONSOLE. 40 MIC/LINE MONO INPUT CHANNELS, 4 STEREO LINE INPUT CHANNELS, 4-BAND SWEEP EQ TYPE, TRS INSERT TYPE.

THE SPECTRA-C/CI AND SPECTRA-T/TI ARE HIGH PERFORMANCE ANALOG CONSOLES FROM APB-DYNASONICS DESIGNED TO OFFER TRULY EXCEPTIONAL SOUND QUALITY, VERSATILITY AND RELIABLE PERFORMANCE IN A RANGE OF FIXED INSTALLATION AND TOURING SOUND APPLICATIONS.

EACH OF THESE VCA-BASED MODELS IS AVAILABLE WITH 24, 32, 40, 48 AND 56 MONO INPUT CHANNELS AND ALL SIZES FEATURE 4 ADDITIONAL STEREO LINE-INPUT CHANNELS. A 24 CHANNEL MONO-INPUT EXPANDER IS ALSO AVAILABLE FOR USE WITH ALL OF THE AVAILABLE MODELS FOR BOTH SPECTRA-C/CI AND SPECTRA-T/TI.

FEATURE RICH, SPECTRA CONSOLES INCLUDE VCA CONTROL ON INPUTS AND OUTPUTS, MONO/STEREO/3-SPEAKER LCR MONITORING, AND INSERTS ON ALL PRIMARY OUTPUTS, INCLUDING THE AUXES AND MATRIXES. THE MASTER VCA OUTPUT FADER CAN SIMULTANEOUSLY CONTROL THE LEVELS OF LEFT, RIGHT, CENTER, MONO AND ANY OF THE FOUR MATRIX OUTPUTS. THE SPECTRA-C/CI AND SPECTRA-T/TI REPRESENT A UNIQUE, INVENTIVE APPROACH TO DESIGN THAT LITERALLY REDEFINES THE POTENTIAL OF LIVE-PERFORMANCE ANALOG CONSOLES FOR A NEW GENERATION OF USERS.

SPECTRA-T/TI EQ SECTION

THE SPECTRA-T/TI EQ IS SWEEPABLE IN ALL FOUR BANDS AND INCLUDES SHELVING/BELL SWITCHES ON THE HF/LF FREQUENCY BANDS. THE HF/LF BELL MODE FEATURES AN ASYMMETRIC RESPONSE, WITH 2/3 OCTAVE BOOST AND 1/4 OCTAVE CUT. THE TWO MID BANDS ARE SWITCHABLE BETWEEN 1 OCTAVE AND 1/3 OCTAVE BANDWIDTH IN BOTH BOOST AND CUT. SEPARATE ON SWITCHES WITH LED ARE PROVIDED FOR SPECTRA-T/TI'S EQ AND INSERT FUNCTIONS.

HIGH-PASS FILTER SWEEPABLE FROM 20HZ TO 400HZ AT -12DB PER OCTAVE
HF SWEEPABLE FROM 800HZ TO 16KHZ AND SWITCHABLE BETWEEN SHELVING AND ASYMMETRICAL
BELL-SHAPED CURVE WITH 2/3 OCTAVE BANDWIDTH IN BOOST MODE AND 1/4 OCTAVE BANDWIDTH IN CUT MODE
HMF SWEEPABLE FROM 400HZ TO 8KHZ AND SWITCHABLE BETWEEN 1 OCTAVE BANDWIDTH AND A
NARROW 1/3 OCTAVE BANDWIDTH
LMF SWEEPABLE FROM 100HZ TO 2KHZ AND SWITCHABLE BETWEEN 1 OCTAVE BANDWIDTH AND A NARROW
1/3 OCTAVE BANDWIDTH
LF SWEEPABLE FROM 20HZ TO 400HZ AND SWITCHABLE BETWEEN SHELVING AND ASYMMETRICAL
BELL-SHAPED CURVE WITH 2/3 OCTAVE BANDWIDTH IN BOOST MODE AND 1/4 OCTAVE BANDWIDTH IN CUT MODE

AN INSERT-ON SWITCH WITH LED IS PROVIDED ON SPECTRA-T/TI CONSOLES. ALL OTHER FEATURES OTHER THAN THE EQ PARAMETERS AND THE INSERT-ON SWITCH ARE IDENTICAL BETWEEN THE SPECTRA-C/CI AND SPECTRA-T/TI CONSOLES.


SPECTRA CONSOLE PRICING INCLUDES TWO POWER SUPPLIES (X2 = P) , LAMPS AND CONSOLE COVER

B STOCK FROM MANUFACTURER WITH FULL FACTORY WARRANTY, FOB NJ.
