APB SPECTRA T24+4P
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on March 16, 2016 - Viewed 227 times

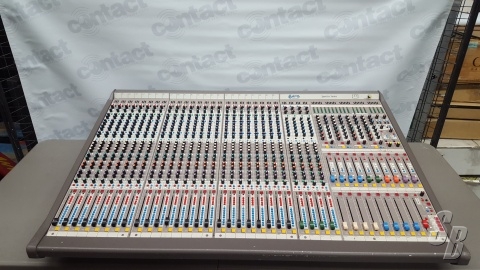

APB DYNASONICS SPECTRA T24+4P (YOM: 2006) (S#: FG-ST24P-0406012) SUPERB (8-9)

FEATURES: 24 ANALOG INPUTS WITH BURR-BROWN MIC PRE'S + 4 STEREO LINE INPUTS
MONO INPUT CHANNELS FEATURE HIGHEST QUALITY BURR-BROWN MICROPHONE PREAMPS
8 VCA GROUPS FOR INPUTS
OUTPUT VCA SYSTEM FOR LEFT, RIGHT, CENTER AND MONO OUTPUTS
USER-SELECTABLE VCA CONTROL ON ALL MATRIX OUTPUTS
THAT® CORPORATION VCA ELEMENTS USED THROUGHOUT
12 MUTE GROUP SYSTEM (4 DISCRETE + 8 VCA-ASSIGNMENT LINKED)
10 AUXILIARY BUSES WITH PRE/POST FADER (4) AND PRE/POST EQ (2) SWITCHES
100MM HIGH-QUALITY FADERS ON AUX OUTPUTS WITH POLARITY REVERSE SWITCHES
AUX OUTPUTS HAVE PRE/POST ASSIGNMENT TO MATRIX SECTION AND ASSIGNMENTS TO LEFT, RIGHT, CENTER AND MONO BUSES
4 STEREO/SPLIT-TRACK LINE INPUT CHANNELS INCLUDED ON ALL CONSOLE CONFIGURATIONS
INSERTS ON ALL PRIMARY OUTPUTS INCLUDING AUX AND MATRIX OUTPUTS
INTERNALLY ILLUMINATED SOLO AND MUTE SWITCHES
2 OR 3 SPEAKER (LCR) CONTROL ROOM MONITORING (FRONT PANEL SWITCHABLE)
2 BUS (MONO/STEREO) SOLO PFL SYSTEM, 3 BUS (MONO/STEREO/LCR) SOLO AFL SYSTEM
LEFT-RIGHT, CENTER AND MONO (SUB-WOOFER/AUX) ASSIGNMENT SYSTEM
SUBWOOFER MIX CAN BE DERIVED FROM DISCRETE MONO OR AUX ASSIGNMENT
15 X 4 MATRIX SYSTEM WITH INSERTS AND XLR BALANCED OUTPUTS
2 MONO ALTERNATE OUTPUTS WITH TRANSFORMER ISOLATED (JENSEN) BALANCED XLR OUTPUTS
STEREO (RECORD) ALTERNATE OUTPUT WITH TRS AND RCA OUTPUTS
1/8" AND 1/4" HEADPHONE OUTPUT CONNECTORS
TALKBACK SYSTEM WITH INT/EXT TB MIC AND 1 KHZ OSCILLATOR
6-SEGMENT LED METERING ON MONO INPUT CHANNELS
EIGHTEEN 15-SEGMENT LED METERS FOR OUTPUT AND SOLO MONITORING
LAMP CONNECTORS (4-PIN XLR) WITH DIMMER CONTROL (GOOSENECK LAMPS ARE NOT INCLUDED)
PRIMARY AND SECONDARY (INCLUDED) PLUG-IN POWER SUPPLIES WITH POWER FACTOR CORRECTION (OPERATE IN EQUAL CURRENT SHARING MODE). A SINGLE SUPPLY WILL POWER THE CONSOLE SHOULD A FAULT OCCUR TO EITHER SUPPLY.
THE SPECTRA-T EQ IS SWEEPABLE IN ALL FOUR BANDS AND INCLUDES SHELVING/BELL SWITCHES ON THE HF/LF FREQUENCY BANDS. THE HF/LF BELL MODE FEATURES AN ASYMMETRIC RESPONSE, WITH 2/3 OCTAVE BOOST AND 1/4 OCTAVE CUT. THE TWO MID BANDS ARE SWITCHABLE BETWEEN 1 OCTAVE AND 1/3 OCTAVE BANDWIDTH IN BOTH BOOST AND CUT. SEPARATE ON SWITCHES WITH LED ARE PROVIDED FOR SPECTRA-T/TI'S EQ AND INSERT FUNCTIONS.

HIGH-PASS FILTER SWEEPABLE FROM 20HZ TO 400HZ AT -12DB PER OCTAVE
HF SWEEPABLE FROM 800HZ TO 16KHZ AND SWITCHABLE BETWEEN SHELVING AND ASYMMETRICAL BELL-SHAPED CURVE WITH 2/3 OCTAVE
BANDWIDTH IN BOOST MODE AND 1/4 OCTAVE BANDWIDTH IN CUT MODE
HMF SWEEPABLE FROM 400HZ TO 8KHZ AND SWITCHABLE BETWEEN 1 OCTAVE BANDWIDTH AND A NARROW 1/3 OCTAVE BANDWIDTH
LMF SWEEPABLE FROM 100HZ TO 2KHZ AND SWITCHABLE BETWEEN 1 OCTAVE BANDWIDTH AND A NARROW 1/3 OCTAVE BANDWIDTH
LF SWEEPABLE FROM 20HZ TO 400HZ AND SWITCHABLE BETWEEN SHELVING AND ASYMMETRICAL BELL-SHAPED CURVE WITH 2/3 OCTAVE BANDWIDTH IN BOOST MODE AND 1/4 OCTAVE BANDWIDTH IN CUT MODE

AN INSERT-ON SWITCH WITH LED IS PROVIDED ON SPECTRA-T CONSOLES. ALL OTHER FEATURES OTHER THAN THE EQ PARAMETERS AND THE INSERT-ON SWITCH ARE IDENTICAL BETWEEN THE SPECTRA-C/CI AND SPECTRA-T/TI CONSOLES.

EXTRAS: MANUAL, COVER, REDUNDANT POWER SUPPLY AND IEC'S INCLUDED WITH EACH CONSOLE.
2X ROAD CASES AVAILABLE INCLUDED IN PRICE.


MODIFICATIONS: NONE

HISTORY: WE ARE THE CANADIAN DISTRIBUTOR FOR APB DYNASONICS AND ARE LOOKING TO SELL OUR DEMONSTRATION UNITS AT A SEVERELY DISCOUNTED PRICE. THESE CONSOLES WERE USED AS SALES SAMPLES AT TRADE SHOWS WITH MINIMAL USAGE AND ARE IN GREAT CONDITION.

COMMENTS: 1 APB-DYNASONICS PRODESK432 ALSO AVAILABLE.

THIS UNIT WAS NEVER TOURED
