CREST SERIES X-4 32 MIXER BOARD W X SERIES 5A POWER SUPPLY
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on March 14, 2014 - Viewed 333 times

CREST SERIES X-FOUR (YOM: ?) (S#: FAXX4HSFCXX-0010212 BOARD) SUPERB (8-9)

FEATURES: IT IS 36 FRAMES, 24 MONO CHANNELS AND 4 STEREO
FOUR-BAND EQ WITH SWEEPABLE MID-BANDS AND HIGH-PASS FILTERS ON ALL INPUTS
EIGHT-CHANNELS OF FOUR-BAND OUTPUT EQ—LOCATED ON THE SIX AUX
AND FOUR MATRIX OUTPUTS: SWITCHABLE TO GROUP, LEFT, RIGHT, AND MONO
(CENTER) OUTPUT CHANNELS
INCLUSION OF OUTPUT EQ REDUCES THE NEED FOR EXTERNAL PROCESSING
AND ITS ASSOCIATED WIRING
FADER REVERSE FUNCTION OPTIMIZES CONSOLE FOR FRONT-OF-HOUSE
OR MONITOR-MIX APPLICATIONS
MULTIPLE OUTPUTS, INCLUDING ALTERNATE OUTPUT, MATRIX 1–2
AND DEDICATED ASSISTIVE LISTENING OUTPUTS
DIRECT-OUTPUT ON ALL MONO INPUT CHANNELS
FIVE-SEGMENT LED LEVEL INDICATION ON ALL MONO INPUT MODULES, WITH VARIABLEINTENSITY
SIGNAL PRESENT INDICATOR AND MULTIPLE SAMPLE-POINT PEAK INDICATOR
SIX AUXILIARY MIXES, WITH AUX 5/6 SWITCHABLE TO STEREO-OPERATION
STEREO PFL AND AFL SOLO SYSTEM FEATURES
DEDICATED LEFT AND RIGHT SOLO-METERING
DISCRETE BUS ASSIGNMENT TO GROUPS, LEFT/RIGHT AND MONO OUTPUTS
TRUE LCR PANNING AVAILABLE ON MONO INPUT CHANNELS
ALL SOLO (PFL/AFL) AND MUTE BUTTONS ILLUMINATE WHEN ACTIVE
SEPARATE GROUND-COMPENSATED INSERT SENDS AND BALANCED RETURNS
FULLY-BALANCED PRIMARY OUTPUTS AND BALANCED MIC AND LINE INPUTS
TALKBACK INDIVIDUALLY-ASSIGNABLE TO EACH MAIN, AUX, AND GROUP OUTPUT
LOW-PROFILE LED METERING—NINE 15-SEGMENT METERS:
FOUR GROUPS, LEFT, RIGHT, MONO (CENTER) AND SOLO-LEFT/SOLO-RIGHT
TRANSFORMER ISOLATION (OPTIONAL) ON MIC INPUTS
AND LEFT, RIGHT, AND MONO OUTPUTS

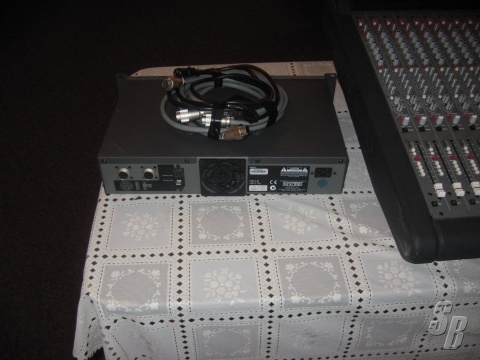

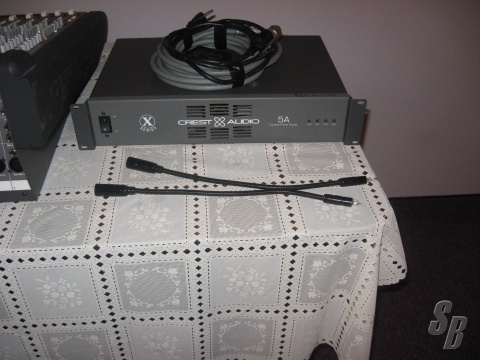

EXTRAS: X SERIES 5A POWER SUPPLY, ALL CABLES, 2 FLEX LIGHTS

MODIFICATIONS: NO MODIFICATIONS

HISTORY: USED IN SCHOOL.

COMMENTS: AMP WAS REPAIRED IN 2004

THIS UNIT WAS NEVER TOURED
