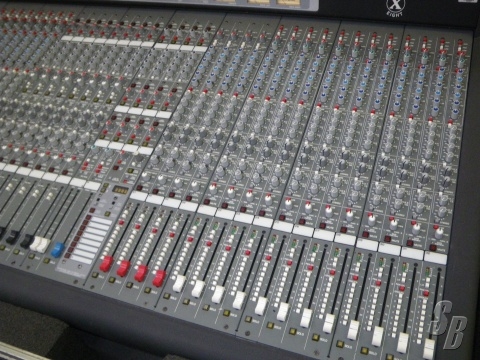

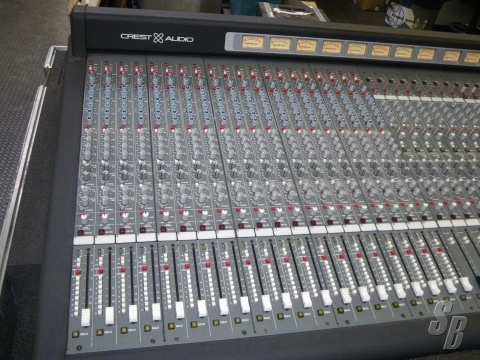

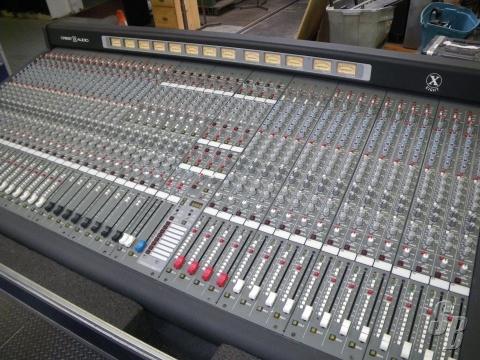

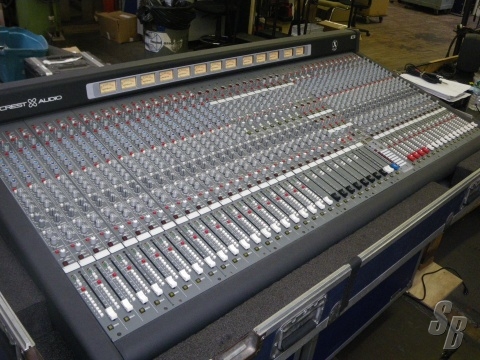

CREST X-EIGHT (YOM: ?) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on April 13, 2017 - Viewed 158 times

CREST X-EIGHT (YOM: ?) (S#: TBD) SUPERB (8-9)
A LIVE PERFORMANCE, FRONT-OF-HOUSE CONSOLE SUITABLE FOR VETERANS AND BEGINNERS ALIKE, THE X-EIGHT RT INCLUDES IDENTICAL FOUR-BAND EQ ON ALL MONO
AND STEREO INPUT CHANNELS.

DESCRIPTION:

THE X-EIGHT RT CONSOLE IS DESIGNED SPECIFICALLY FOR SOUND CONTRACTING, INDUSTRIAL, RENTAL, AND INSTALLATION APPLICATIONS.

AUXILIARY SENDS 5/6 AND 7/8 MAY BE SWITCHED BETWEEN MONO OR STEREO OPERATION.

SIGNAL MONITORING IS PROVIDED ON ALL INPUT AND OUTPUT FADER CHANNELS, ASSISTING THE OPERATOR IN SETTING CORRECT GAIN STRUCTURE THROUGHOUT THE CONSOLE.

STEREO FULL-FACILITY INPUT CHANNELS ARE USED FOR EFFECT-RETURNS ON ALL FADERS.

INDEPENDENT RECORDING OUTPUT AND TAPE MONITORING FACILITIES ARE PROVIDED THAT WILL NOT INTERFERE WITH LIVE-PERFORMANCE PRODUCTION,
AND WHICH MAY ALSO BE USED AS SPECIAL-EFFECTS OUTPUTS AND ADDITIONAL LINE-INPUT FACILITIES FOR THEATRICAL APPLICATIONS. A MICROPROCESSOR-
BASED MUTING SYSTEM IS PROVIDED ON BOTH INPUTS AND OUTPUTS, AND MAY BE OPERATED MANUALLY OR IN SEQUENTIAL-MODE

FEATURES:
• FOUR-BAND EQ WITH SWEEPABLE MID-BANDS AND HIGH-PASS FILTERS ON ALL INPUTS
• SEPARATE EIGHT-TRACK RECORD OUTPUT AND MONITOR INPUTS ALLOW LIVE-SOUND
RECORDING WITHOUT COMPROMISING THE HOUSE-MIX
• MICROPROCESSOR-BASED MUTING SYSTEM ENABLES OUTPUTS
TO BE USED FOR SPECIAL-EFFECTS IN THEATRICAL APPLICATIONS
• MULTIPLE OUTPUTS, INCLUDING ALTERNATE OUTPUT, MATRIX 1–4
AND DEDICATED ASSISTIVE LISTENING OUTPUTS
• DIRECT-OUTPUT ON ALL MONO INPUT CHANNELS
• FIVE-SEGMENT LED LEVEL INDICATOR ON ALL MONO INPUT MODULES, WITH VARIABLE
INTENSITY SIGNAL PRESENT INDICATOR AND MULTIPLE SAMPLE-POINT PEAK INDICATOR
• EIGHT AUXILIARY MIXES, WITH AUX 5/6 AND AUX 7/8 SWITCHABLE TO STEREO-OPERATION
• STEREO SOLO SYSTEM, FEATURES SWITCHABLE AFL/PFL MODE
AND LAST-PRESSED FUNCTIONS, WITH MASTER SOLO CLEAR SWITCH
• DISCRETE BUS ASSIGNMENT TO GROUPS, LEFT/RIGHT AND MONO OUTPUTS
• TRUE LCR PANNING AVAILABLE ON MONO INPUT CHANNELS
• SEPARATE GROUND-COMPENSATED INSERT SENDS AND BALANCED RETURNS
• FULLY-BALANCED PRIMARY OUTPUTS AND BALANCED MIC AND LINE INPUTS
• METER BRIDGE—THIRTEEN MECHANICAL METERS WITH SOLID-STATE ILLUMINATION:EIGHT GROUPS, LEFT, RIGHT, MONO (CENTER) AND SOLO-LEFT/SOLO-RIGHT

SPECIFICATIONS:

V. 1.0 1/24/00
+0/-1DB 20HZ–20KHZ REF 1KHZ—ANY INPUT TO ANY OUTPUT
ANY OUTPUT <.01% THD 20HZ&NDASH;20KHZ @ +15DBU OUT
MIC EIN BETTER-THAN -128DBU 20HZ&NDASH;20KHZ&MDASH;150OHM SOURCE, 60DB GAIN
CHANNEL MUTE >80DB CHANNEL ROUTING >80DB
CHANNEL FADER ATTENUATION >90DB AUX SEND ATTENUATION >75DB
< +/- 30 DEGREES, 20HZ&NDASH;20KHZ&MDASH;MIC-IN TO MAIN-OUT
MIC-IN XLR 4K OHM BALANCED&MDASH;MAX VOLTAGE GAIN TO LEFT/RIGHT BALANCED OUT = 98DB
LINE-IN TRS >10K OHMS BALANCED
LEFT/RIGHT/MONO&MDASH;GROUP, AUX, MATRIX&MDASH;MONITOR-OUT ALL 100 OHMS BALANCED
HEADPHONES TO DRIVE > EIGHT-OHMS
SEND 50 OHMS GROUND-COMPENSATED ON TRS JACK
RETURN >10K OHMS BALANCED ON TRS JACK
+4DBU MAX LEVEL +26DBU BALANCED INTO >1K OHMS
HIGH FREQ +/- 15DB SHELF AT 12KHZ
HI-MID FREQ +/- 15DB BELL FREQ RANGE 400HZ&NDASH;8KHZ Q=1.5
LOW-MID FREQ +/- 15DB BELL FREQ RANGE 80HZ&NDASH;2KHZ Q=1.5
LOW FREQ +/- 15DB BELL-BOOST /SHELF-CUT FREQ CENTER 80HZ Q=.7 ON BOOST
HIGH-PASS FILTER -12DB/OCTAVE FREQ RANGE 20HZ&NDASH;400HZ
SEPARATE ON-SWITCHES FOR EQ AND HIGH-PASS FILTER
EIGHT INDEPENDENT TAPE RETURNS&MDASH;WITH ASSIGNMENT TO MAIN LEFT/RIGHT/MONO BUSES
PLUS AUX-SENDS FOR AUX 5&NDASH;8
FIVE-SEGMENT LED LADDER WITH VU-TYPE RESPONSE&MDASH;DISPLAYS PRE-FADER SIGNAL LEVEL
TOP RED-LED WARNS OF IMPENDING OVERLOAD&MDASH;ANYWHERE WITHIN THE CHANNEL, LOWEST GREEN-LED SHOWS SIGNAL-PRESENT
THIRTEEN MECHANICAL VU-TYPE METERS WITH LED-ILLUMINATION
EIGHT-METERS SHOWING GROUP-OUTS
THREE-METERS SHOWING MAIN-OUTS (LEFT/RIGHT/MONO), AND TWO DEDICATED SOLO-METERS
PINK-NOISE GENERATOR CAN FEED THE TALK-BACK SECTION
CHASSIS IS POWDER-COATED 14-GAUGE GALVANIZED STEEL WITH INTERNAL-BRACING
MODULES ARE POWDER-COATED 18-GAUGE GALVANIZED STEEL WITH BAKED-EPOXY SCREENING

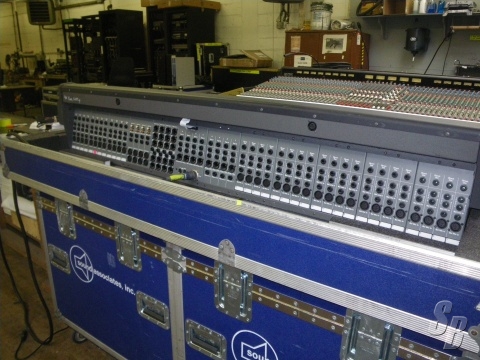

EXTRAS: COMES WITH ROAD CASE AND LIGHTS.

MODIFICATIONS: NONE

HISTORY: THIS WAS USED IN BROADWAY THEATERS.

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
