DIGIDESIGN VENUE D-SHOW SYSTEM (YOM: 2008) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 18, 2009 - Viewed 284 times

DIGIDESIGN VENUE D-SHOW SYSTEM (YOM: 2008) (S#: TBD) SUPERB (8-9)

FEATURES: THIS SYSTEM INCLUDES THE FOLLOWING COMPONENTS:

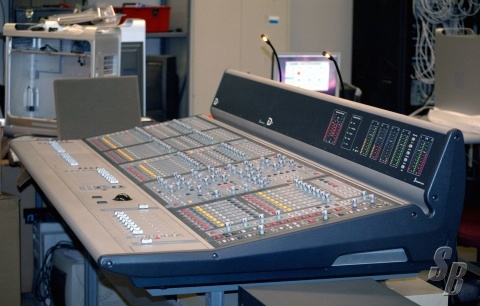

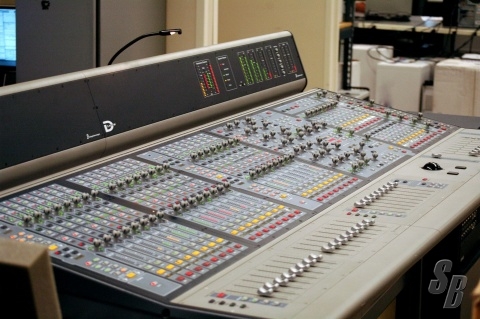

-D-SHOW MAIN CONSOLE WITH SIDECAR (24 CHANNEL FADERS, 8 BUS FADERS, AND MAIN FADER)

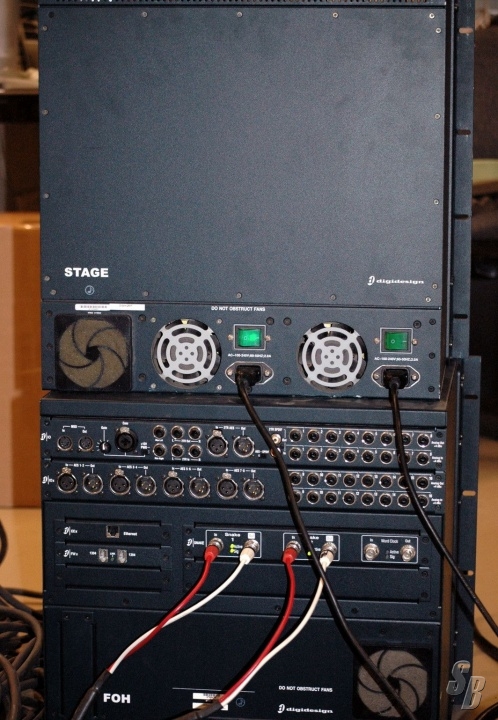

-FRONT OF HOUSE RACK EXPANDED WITH 8 ADD'L AES/EBU INPUTS AND OUTPUTS AND A TOTAL OF 16 TRS INPUTS AND OUTPUTS

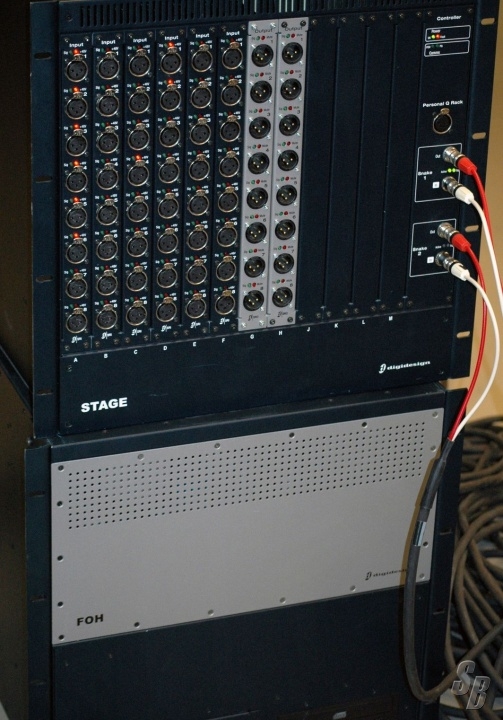

-STAGE RACK WITH 48 MIC / LINE INPUTS, EXPANDED TO INCLUDE 16 LINE OUTPUTS
-3 DSP MIX ENGINE CARDS IN FOH RACK
-DSHOW ECX ETHERNET CARD
-DSHOW FWX PRO TOOLS LE RECORDING OPTION
-TWO 250' DSHOW SNAKE CABLES (BNC)
-19' LCD MONITOR WITH VIDEO MONITOR MOUNTING ARM
-MULTIPLE PLUGINS (SEE "EXTRAS" BELOW)

DIGIDESIGN VENUE D-SHOW SYSTEM FEATURES:

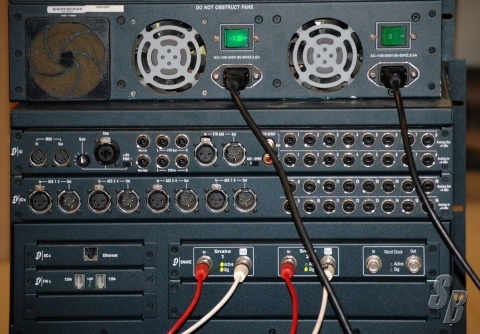

D-SHOW CONSOLE WITH REDUNDANT POWER SUPPLIES
ADDITIONAL D-SHOW MIX PRO CARD
STAGE RACK OUTPUT CARD
FOH IOX CARD
D-SHOW FWX CARD
D-SHOW SNAKE
19" LCD DISPLAY
ECX ETHERNET OPTION CARD

D-SHOW CONSOLE WITH REDUNDANT POWER SUPPLIES
VENUE'S D-SHOW FEATURES AN EXTREMELY POWERFUL, PRECISE, AND FLEXIBLE DIGITAL LIVE SOUND MIXING ENGINE, PROVIDING INCREDIBLE SOUND QUALITY, HEADROOM, AND FIDELITY. INTERNAL 48-BIT PROCESSING PROVIDES UNPARALLELED RESOLUTION FOR THE ONBOARD EQ AND DYNAMICS SECTIONS, AND OFFERS UNCOMPROMISED HEADROOM ON MIX BUSSES. EVERY CHANNEL OF THE D-SHOW CONSOLE IS EQUIPPED WITH DELAY, FULL 4-BAND PARAMETRIC EQ (INCLUDING ADDITIONAL 2ND ORDER HPF), AND TWO DYNAMICS PROCESSORS. PLUS, D-SHOW ALSO SUPPORTS DSP EFFECTS PLUG-IN PROCESSING AND FEATURES AN INTEGRATED RECORDING AND PLAYBACK OPTION FOR INDUSTRY-STANDARD DIGIDESIGN PRO TOOLS SYSTEMS.

MULTIPLE REDUNDANT SYSTEMS FOR MAXIMUM RELIABILITY
VENUE WAS PURPOSE-BUILT FROM THE GROUND UP SPECIFICALLY TO SERVICE THE STRINGENT REQUIREMENTS OF LIVE AND CONCERT SOUND REINFORCEMENT. MULTIPLE REDUNDANT SUBSYSTEMS ENSURE THAT AUDIO CONTINUES TO PASS THROUGH TO THE SPEAKERS, EVEN IN THE UNLIKELY EVENT OF A SYSTEM RESTART. MOREOVER, OPERATORS RETAIN COMPLETE CONTROL OVER CHANNEL MUTES AND FADERS DURING A RESTART - AN INDUSTRY FIRST. THE DUAL-REDUNDANT POWER SUPPLIES FOR ALL CRITICAL COMPONENTS AND DUAL-REDUNDANT SNAKES WITH AUTO-SWITCHOVER ENSURE A FAIL-SAFE ENVIRONMENT. VENUE HAS ALSO BEEN DROP, G-FORCE, AND TEMPERATURE EXTREME TESTED, TIRELESSLY QA'D, FUNCTIONALLY REVISITED, AND THOROUGHLY FIELD-TESTED ON THE ROAD AND IN VARIOUS INSTALLATIONS TO ENSURE NON-STOP, SOLID PERFORMANCE. WHAT'S MORE, VENUE IS BACKED BY DIGIDESIGN'S RENOWNED CUSTOMER SUPPORT, WITH ON-ROAD REPLACEMENT SERVICE AND AUTHORIZED REPAIR CENTERS LOCATED IN MAJOR CITIES AROUND THE WORLD.

D-SHOW MIX PRO CARD
THE ADDITIONAL D-SHOW MIX PRO CARD ALLOWS OPERATORS TO INCREASE THE MAXIMUM NUMBER OF CHANNELS, SUPPORT A SECOND STAGE RACK FOR STAGE INPUT CONFIGURATIONS FROM 49-96 INPUTS, RUN MORE GRAPHIC EQUALIZERS SIMULTANEOUSLY, AND RUN MORE PLUG-INS. SINCE THE SAME CARD TYPE PROVIDES ALL THIS EXPANSION, YOU CAN REASSIGN THE POWER FROM SHOW TO SHOW, ALLOWING YOU TO TAILOR THE PROCESSING REQUIREMENTS TO THE GIG. IN ADDITION, ANY DSP CARD CAN PERFORM ANY FUNCTION, SO A SPARE CARD NOT REQUIRED FOR PLUG-IN EXPANSION MAY BE CARRIED AS A BACKUP MIX-ENGINE CARD TO INSURE AGAINST FIELD FAILURES.

STAGE RACK OUTPUT CARD
EACH SRO (STAGE RACK OUTPUT) OUTPUT CARD PROVIDES EIGHT BALANCED ANALOG LINE-LEVEL OUTPUTS. A GREEN SIGNAL PRESENCE LED AIDS IN TROUBLESHOOTING. A RED OUTPUT MUTE LED SHOWS THE ACTION OF THE OUTPUT MUTING RELAYS, DESIGNED TO ELIMINATE POWER-ON TRANSIENTS. SRI AND SRO CARDS ARE USER-INSTALLED OPTIONS, ALLOWING OPERATORS TO EXPAND A RACK CONFIGURATION AS NEEDED.

FOH IOX CARD
THE FOH IOX CARD FEATURES EIGHT AES DIGITAL INPUTS AND OUTPUTS, ALLOWING OPERATORS TO INTEGRATE OUTBOARD GEAR WITH DIGITAL CONNECTIONS. IN ADDITION, THE FOH IOX CARD EXPANDS THE INSERT AND DIRECT OUTPUT CAPABILITY AT FOH BY ADDING EIGHT BALANCED ANALOG INPUTS AND OUTPUTS ON TRS JACKS, ALLOWING CONNECTION TO VIRTUALLY ANY TYPE OF OUTBOARD GEAR. ALL I/O CONNECTIONS ARE FULLY ROUTABLE IN THE DIGITAL PATCHBAY, FACILITATING EASY ACCESS TO ANY INTERNAL DIGITAL PATHWAY.

D-SHOW FWX CARD
THE FWX OPTION CARD IS A FIREWIRE-BASED OPTION FOR THE VENUE FOH RACK OR MIX RACK THAT PROVIDES UP TO 18 CHANNELS OF INTEGRATED PRO TOOLS LE RECORDING AND PLAYBACK WITH YOUR VENUE SYSTEM - NO PRO TOOLS LE HARDWARE REQUIRED. SIMPLY USE THE CARD TO CONNECT YOUR VENUE SYSTEM, VIA FIREWIRE, TO A COMPATIBLE WINDOWS- OR MAC-BASED COMPUTER RUNNING PRO TOOLS LE SOFTWARE. YOU CAN INSTALL ONE FWX OPTION CARD INTO A MIX RACK OR FOH RACK.

D-SHOW SNAKE
VENUE'S DIGITAL SNAKE REPLACES THE BULKY AND EXPENSIVE TRADITIONAL MULTI-CHANNEL SNAKE. IN ADDITION TO LIGHTER WEIGHT AND LOWER COST, IT HAS THE ADDED BENEFIT OF PROVIDING COMPLETE ISOLATION FROM GROUND LOOPS BETWEEN THE STAGE AND MIX POSITIONS. VENUE'S DIGITAL SNAKE IS A DUAL-REDUNDANT SYSTEM THAT USES AFFORDABLE STANDARD COAXIAL CABLE WITH BNC CONNECTORS AND TRANSPORTS UP TO 48 SIGNALS BI-DIRECTIONALLY OVER DISTANCES OF UP TO 500 FEET.

19" LCD DISPLAY
THIS DISPLAY DELIVERS BRIGHTNESS AND A HIGH CONTRAST RATIO, MAKING IT EASIER TO NAVIGATE. PLUS, IT GENERATES ALMOST NO HEAT AT ALL.

ECX ETHERNET OPTION CARD
THE ECX ETHERNET OPTION CARD IS AN OPTION FOR THE VENUE FOH RACK THAT ENABLES YOU TO CONTROL A VENUE SYSTEM REMOTELY OVER A WIRED OR WIRELESS ETHERNET NETWORK. USING A COMPATIBLE ETHERNET-EQUIPPED CLIENT DEVICE, SUCH AS A LAPTOP OR DESKTOP COMPUTER (SOLD SEPARATELY), YOU CAN REMOTELY CONTROL ALL VENUE SYSTEM CO

EXTRAS: A ONE YEAR WARRANTY IS INCLUDED BY THE SELLER. UNLIMITED PHONE TECHNICAL SUPPORT IS INCLUDED WITH PURCHASE FOR THE SERVICE LIFE OF THE CONSOLE, AS WELL.

THE FOLLOWING PLUGINS ARE INCLUDED AND PRE-AUTHORIZED TO AN INCLUDED ILOK KEY. THESE PLUGINS ARE VALUED AT OVER $7,000:

-DIGIDESIGN ELEVEN
-DIGIDESIGN IMPACT
-DIGIDESIGN REVERB ONE
-DIGIDESIGN REVIBE
-DIGIDESIGN SMACK!
-DIGIDESIGN / BOMB FACTORY BF-3A
-DIGIDESIGN / BOMB FACTORY CLASSIC COMPRESSORS
-DIGIDESIGN / BOMB FACTORY MOODERFOOGER BUNDLE
-DIGIDESIGN / BOMB FACTORY PULTEC BUNDLE
-DIGIDESIGN / BOMB FACTORY SLIGHTLY RUDE COMPRESSOR
-DIGIDESIGN / BOMB FACTORY FAIRCHILD 660 AND 670
-DIGIDESIGN / BOMB FACTORY JOEMEEK BUNDLE
-DIGIDESIGN / BOMB FACTORY VOCE BUNDLE
-FOCUSRITE D2
-FOCUSRITE D3
-LINE 6 AMP FARM
-LINE 6 ECHO FARM
-TROODON TROOTRACE BUNDLE

MODIFICATIONS: UNIT HAS BEEN UPDATED WITH CURRENT OS AND CURRENT VERSIONS OF ALL PLUGINS AS OF JULY 1, 2009, THOROUGHLY CLEANED AND TESTED BY A DIGIDESIGN FACTORY-AUTHORIZED SERVICE CENTER.

THE SELLER IS INCLUDING A ONE YEAR WARRANTY (PARTS AND LABOR), AND UNLIMITED TECHNICAL SUPPORT FOR THE SERVICE LIFE OF THE CONSOLE, VIA WEB OR TOLL-FREE PHONE.

HISTORY: THIS UNIT HAS SEEN VERY LITTLE USE. IT WAS INSTALLED IN A THEATER AND USED ONLY BRIEFLY. NEVER TOURED OR USED OUTDOORS. IT IS IN IMMACULATE CONDITION.

COMMENTS: N/A

THIS UNIT WAS NEVER TOURED
