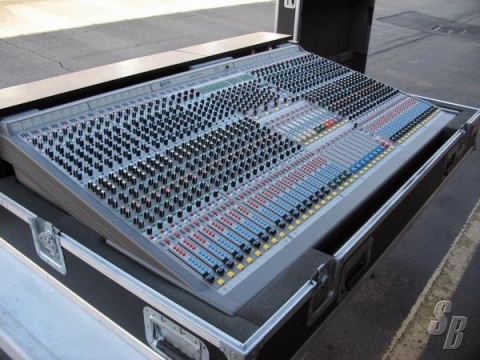

LIKE NEW APB SPECTRA-T 32 CHANNEL CONSOLE W/ CASE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 15, 2008 - Viewed 299 times

DESCRIPTION: APB DYNASONICS SPECTRA-T 32 (YOM: 2007) (S#: TBD) LIKE NEW (9-10)

FEATURES: SPECTRA-T/TI EQ SECTION

THE SPECTRA-T/TI EQ IS SWEEPABLE IN ALL FOUR BANDS AND INCLUDES SHELVING/BELL SWITCHES ON THE HF/LF FREQUENCY BANDS. THE HF/LF BELL MODE FEATURES AN ASYMMETRIC RESPONSE, WITH 2/3 OCTAVE BOOST AND 1/4 OCTAVE CUT. THE TWO MID BANDS ARE SWITCHABLE BETWEEN 1 OCTAVE AND 1/3 OCTAVE BANDWIDTH IN BOTH BOOST AND CUT. SEPARATE ON SWITCHES WITH LED ARE PROVIDED FOR SPECTRA-T/TI'S EQ AND INSERT FUNCTIONS.

* HIGH-PASS FILTER SWEEPABLE FROM 20HZ TO 400HZ AT -12DB PER OCTAVE
* HF SWEEPABLE FROM 800HZ TO 16KHZ AND SWITCHABLE BETWEEN SHELVING AND ASYMMETRICAL BELL-SHAPED CURVE WITH 2/3 OCTAVE BANDWIDTH IN BOOST MODE AND 1/4 OCTAVE BANDWIDTH IN CUT MODE
* HMF SWEEPABLE FROM 400HZ TO 8KHZ AND SWITCHABLE BETWEEN 1 OCTAVE BANDWIDTH AND A NARROW 1/3 OCTAVE BANDWIDTH
* LMF SWEEPABLE FROM 100HZ TO 2KHZ AND SWITCHABLE BETWEEN 1 OCTAVE BANDWIDTH AND A NARROW 1/3 OCTAVE BANDWIDTH
* LF SWEEPABLE FROM 20HZ TO 400HZ AND SWITCHABLE BETWEEN SHELVING AND ASYMMETRICAL BELL-SHAPED CURVE WITH 2/3 OCTAVE BANDWIDTH IN BOOST MODE AND 1/4 OCTAVE BANDWIDTH IN CUT MODE

AN INSERT-ON SWITCH WITH LED IS PROVIDED ON SPECTRA-T/TI CONSOLES. ALL OTHER FEATURES OTHER THAN THE EQ PARAMETERS AND THE INSERT-ON SWITCH ARE IDENTICAL BETWEEN THE SPECTRA-C/CI AND SPECTRA-T/TI CONSOLES.


SPECTRA-C/CI AND SPECTRA-T/TI GENERAL FEATURES

* AVAILABLE IN 5 CHASSIS SIZES WITH OPTIONAL 24-INPUT EXPANDER
* MONO INPUT CHANNELS FEATURE HIGHEST QUALITY BURR-BROWN MICROPHONE PREAMPS
* 8 VCA GROUPS FOR INPUTS
* OUTPUT VCA SYSTEM FOR LEFT, RIGHT, CENTER AND MONO OUTPUTS
* USER-SELECTABLE VCA CONTROL ON ALL MATRIX OUTPUTS
* THAT® CORPORATION VCA ELEMENTS USED THROUGHOUT
* 12 MUTE GROUP SYSTEM (4 DISCRETE + 8 VCA-ASSIGNMENT LINKED)
* 10 AUXILIARY BUSES WITH PRE/POST FADER (4) AND PRE/POST EQ (2) SWITCHES
* 100MM HIGH-QUALITY FADERS ON AUX OUTPUTS WITH POLARITY REVERSE SWITCHES
* AUX OUTPUTS HAVE PRE/POST ASSIGNMENT TO MATRIX SECTION AND ASSIGNMENTS TO LEFT, RIGHT, CENTER AND MONO BUSES
* 4 STEREO/SPLIT-TRACK LINE INPUT CHANNELS INCLUDED ON ALL CONSOLE CONFIGURATIONS
* INSERTS ON ALL PRIMARY OUTPUTS INCLUDING AUX AND MATRIX OUTPUTS
* INTERNALLY ILLUMINATED SOLO AND MUTE SWITCHES
* 2 OR 3 SPEAKER (LCR) CONTROL ROOM MONITORING (FRONT PANEL SWITCHABLE)
* 2 BUS (MONO/STEREO) SOLO PFL SYSTEM, 3 BUS (MONO/STEREO/LCR) SOLO AFL SYSTEM
* LEFT-RIGHT, CENTER AND MONO (SUB-WOOFER/AUX) ASSIGNMENT SYSTEM
* SUBWOOFER MIX CAN BE DERIVED FROM DISCRETE MONO OR AUX ASSIGNMENT
* 15 X 4 MATRIX SYSTEM WITH INSERTS AND XLR BALANCED OUTPUTS
* 2 MONO ALTERNATE OUTPUTS WITH TRANSFORMER ISOLATED (JENSEN) BALANCED XLR OUTPUTS
* STEREO (RECORD) ALTERNATE OUTPUT WITH TRS AND RCA OUTPUTS
* 1/8" AND 1/4" HEADPHONE OUTPUT CONNECTORS
* TALKBACK SYSTEM WITH INT/EXT TB MIC AND 1 KHZ OSCILLATOR
* 6-SEGMENT LED METERING ON MONO INPUT CHANNELS
* EIGHTEEN 15-SEGMENT LED METERS FOR OUTPUT AND SOLO MONITORING
* LAMP CONNECTORS (4-PIN XLR) WITH DIMMER CONTROL (GOOSENECK LAMPS INCLUDED)
* 24 MONO-INPUT EXPANDER SYSTEM AVAILABLE
* PRIMARY AND SECONDARY (INCLUDED) PLUG-IN POWER SUPPLIES WITH POWER FACTOR CORRECTION (OPERATE IN EQUAL CURRENT SHARING MODE). A SINGLE SUPPLY WILL POWER THE CONSOLE SHOULD A FAULT OCCUR TO EITHER SUPPLY.

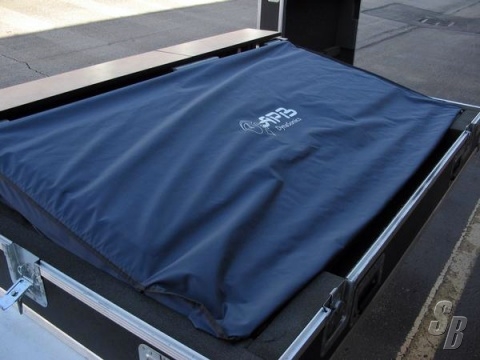

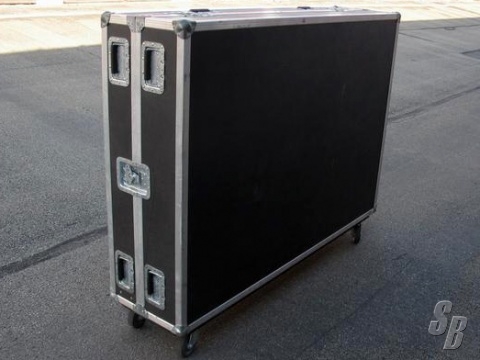

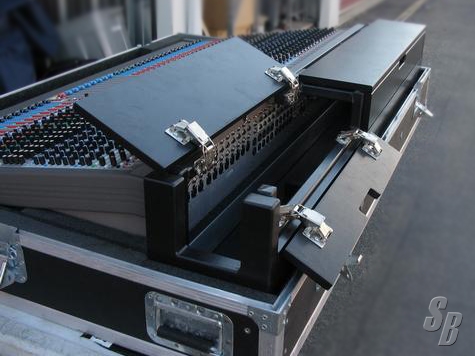

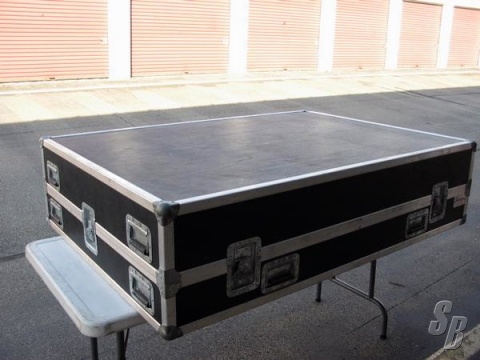

EXTRAS: - INCLUDED CARAVAN CASE WITH DOG HOUSE.

-THIS CONSOLE IS A VCA BASED CONSOLE

MODIFICATIONS: CONSOLE WAS JUST CLEANED AND RE-WORKED AT THE APB FACTORY.

HISTORY: PURCHASED MID 2007 USED FOR 4 SHOWS.

COMMENTS: SEVERAL PICTURES AVAILABLE.

THIS UNIT WAS NEVER TOURED
