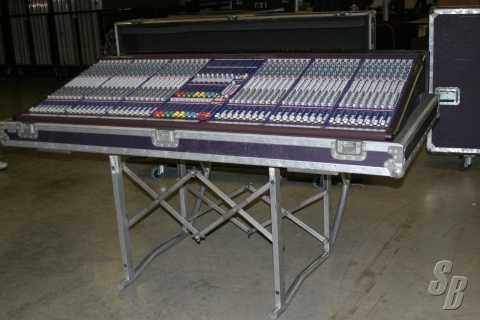

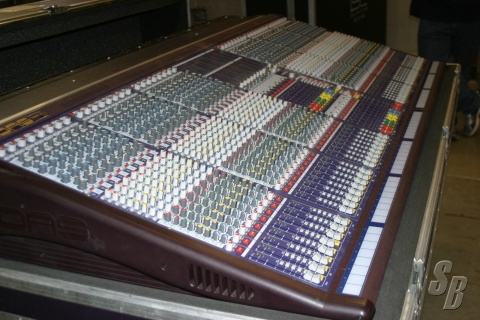

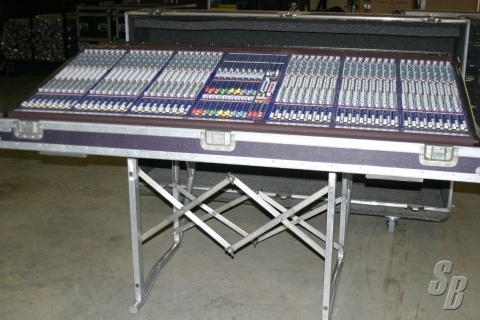

MIDAS SIENA 480 48X16 CONSOLE
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on October 22, 2014 - Viewed 192 times

MIDAS SIENA 480 (YOM: ?) (S#: TBS) SUPERB (8-9)

FEATURES: PREMIUM QUALITY PREAMP - THE SIENA MIC AMPS CAN HANDLE INPUT LEVELS UP TO +21DB. THE HIGH CMR MEANS EXCELLENT PERFORMANCE WITH LONG MULTICORE RUNS AND PASSIVE MIC SPLITS.
SWITCHED INSERT POINTS - INVALUABLE FOR QUICK SET-UPS.
MIDAS 4-BAND SWEPT EQ - SIENA EQ HAS BEEN DESIGNED TO GIVE THE SAME LEGENDARY POWER, RESPONSE AND “FEEL” AS THE WORLD-RENOWN XL AND HERITAGE SERIES CONSOLES. ALL OF WHICH ARE PROVEN IN DUAL-PURPOSE ROLES.
16 MIX OUTPUTS - ALL 16 MIX SENDS ARE GLOBALLY SWITCHED MONO/STEREO IN PAIRS. THIS FORMAT COMBINES MAXIMUM FLEXIBILITY WITH MINIMUM SET-UP TIME. THE MASTER MIX OUTPUTS ARE CONFIGURABLE TO SUIT THE MODE OF OPERATION. RUN 16 MONO MIXES AND A STEREO MIX, OR 9 DISCRETE STEREO MIXES, OR ANY COMBINATION OF MONO AND STEREO. MIX OUTPUTS FEATURE HIGH CURRENT OUTPUT DRIVERS, AND CAN DELIVER +21DB BEFORE CLIP. NEVER RUN OUT OF “DRIVE”.
SELF CLEANING 100MM MONORAIL FADERS - HIGHLY ACCURATE, ESSENTIAL WHEN RELYING ON FADER POSITION TO SHOW RELATIVE LEVELS.
5 “SOFT-CIRCUIT” MUTE GROUPS - QUICK, SILENT MUTING/UNMUTING OF MULTIPLE INPUTS AND OUTPUTS.
MONO/STEREO CHANGEOVER - THE MONO/STEREO CHANGEOVER FUNCTION NOT ONLY SWITCHES THE INPUT MIX CONTROLS FROM A LEVEL/LEVEL ARRANGEMENT TO A PAN/LEVEL ARRANGEMENT WITH SINGLE PRE/POST SWITCH PER PAIR, IT ALSO RECONFIGURES THE ASSOCIATED DIRECT INPUTS TO MONO OR STEREO OPERATION. IN ADDITION MIX 1-8 AFL IS ALSO RECONFIGURED FOR MONO OR STEREO OPERATION AUTOMATICALLY.
REDUNDANT PSU CAPABILITY - EVERY SIENA CONSOLE HAS BACKUP PSU CAPABILITY. SIENA 320, 400, 480, 560 AND 640 MODELS HAVE REDUNDANCY AS STANDARD. INTERNAL PSUS ARE AUTO-VOLTAGE SENSING, CURRENT SHARING AND AUTO-CHANGEOVER.
TALKBACK SYSTEM - TALK TO INDIVIDUAL OUTPUTS OR MULTIPLE OUTPUTS SIMULTANEOUSLY. EXTERNAL TALK LINE IN & OUT, FOR LINKING TO OTHER CONSOLES.
STEREO SOLO BUSS WITH MODE SWITCHING - FOR MONITOR ENGINEERS, THE ABILITY TO KNOW EXACTLY WHAT IS HAPPENING WITH MULTIPLE REMOTE MIXES AT ANY ONE TIME IS CRUCIAL. SIENA’S LOGIC SOLO SYSTEM PROVIDES MONO AND STEREO SOLO OUTPUTS, EACH WITH ITS’ OWN MUTE SWITCH, AND SEPARATE PFL/AFL SELECTION FOR BOTH INPUTS AND OUTPUTS.
SOLO TRACKING SYSTEM - VIEW YOUR OUTBOARD KLARK TEKNIK HELIX EQ AT THE TOUCH OF A SOLO SWITCH. SIENA SOLO BUSS HAS AN RS232 CONTROL INTERFACE WITH KLARK TEKNIK HELIX DIGITAL EQ SYSTEMS.
CLEAR AND COMPREHENSIVE METERING - 16-SEGMENT OUTPUT METERS THAT SHOW EACH OF THE 18 MASTER MIX BUSSES SIMULTANEOUSLY AND FOUR SEGMENT LED INPUT METERS ON ALL INPUT CHANNELS.

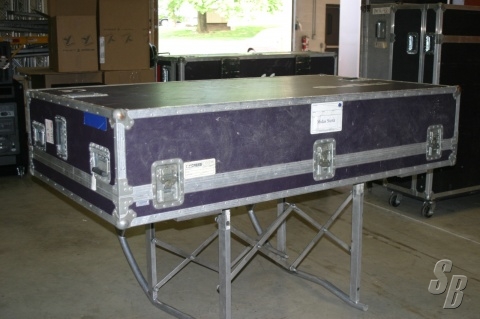

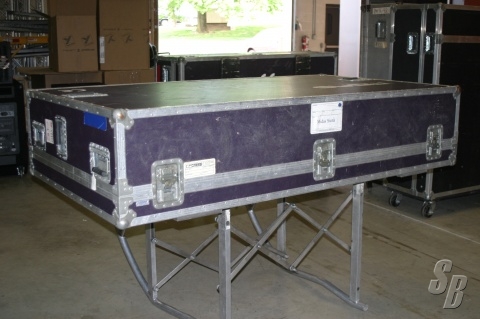

EXTRAS: POWER SUPPLY AND FLIGHT CASE

MODIFICATIONS: NO

HISTORY: PRODUCTION

COMMENTS: NO

THIS UNIT WAS NEVER TOURED
