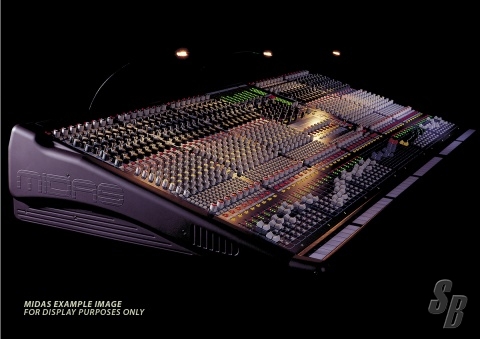

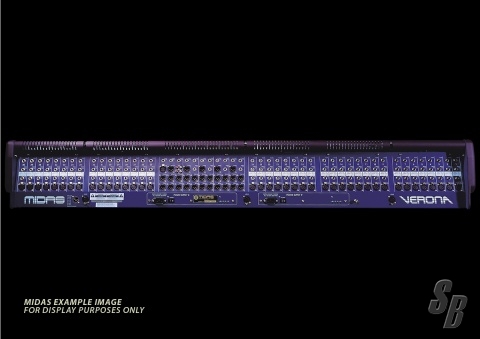

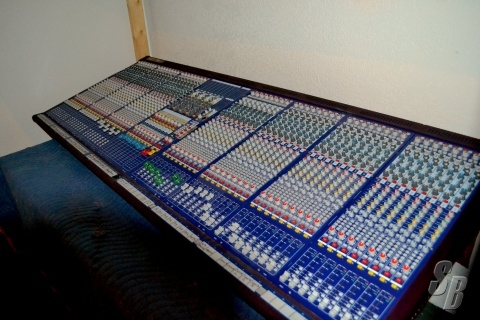

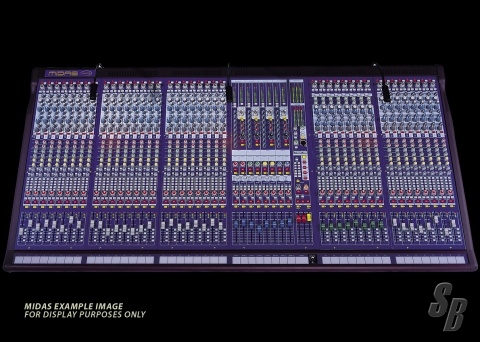

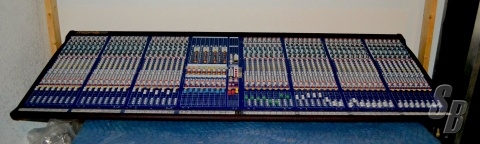

MIDAS VERONA V/560/8/IP MIXING CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 13, 2015 - Viewed 374 times

MIDAS VERONA 560 (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: TOTAL # OF INPUTS: 56

MIC/LINE INPUTS:
56 LINE- 1/4" PHONE
56 MIC- 3-PIN XLR

STEREO LINE INPUTS:
4 STEREO- L/R 1/4" PHONE

IN-LINE INPUTS/RETURNS: NO
AUX SENDS: 4 AUX SENDS: BALANCED XLR MALE
AUX RETURNS: NO

INSERTS:
56 LINE- TRS 1/4" PHONE
8 GROUP- TRS 1/4" PHONE
2 STEREO OUT- TRS 1/4" PHONE

BUS (GROUP) OUTPUTS: 4 GROUP OUTPUTS: 1/4" PHONE

2 TRK MASTER I/O:
MAIN OUTPUTS- LEFT / RIGHT / MONO (SUB) BALANCED 3-PIN XLR
2TRK IN: L/R RCA PHONO
2TRK OUT: L/R RCA PHONO

ALT I/O: NO
MONITOR OUTPUTS: MONITOR OUT- L/R 1/4" PHONE

EQ SECTION HI PASS SLOPE: 12DB/OCT
HI PASS FREQUENCY: 80HZ
TREBLE GAIN: +15 TO -15DB
TREBLE FREQUENCY: 12K
HI MID GAIN: +15 TO -15DB
HI MID FREQUENCY: 400HZ TO 8KHZ
HI MID BANDWIDTH: 1 OCT. (Q=1.4)
LO MID GAIN: +15 TO -15DB
LO MID FREQUENCY: 100HZ TO 2KHZ
LO MID BANDWIDTH: 1OCT. (Q=1.4)
BASS GAIN: +15DB TO -15DB
BASS SHELVING FREQUENCY: 80HZ

SOLO/MUTE: MUTE / PFL ON ALL CHANNELS
CHANNEL LEVEL CONTROL: FADERS
TRIM/GAIN CONTROL ROTARY POTENTIOMETERS
PHANTOM POWER: +48V PHANTOM POWER (ALL MONO CHANNELS)
METERING: PEAK METERS
SIGNAL-TO-NOISE RATIO: SUMMING NOISE -90DBU
TOTAL HARMONIC DISTORTION (THD): TYP. 0.0007%


EXTRAS: THIS ITEM DOES NOT COME WITH ANY EXTRAS.

MODIFICATIONS: THIS ITEM IS READY FOR YOUR VENUE IMMEDIATELY!

HISTORY: THIS MIXING CONSOLE WAS USED IN A CHURCH BY A PROFESSIONAL SOUND ENGINEER.

COMMENTS: GREAT CONDITION. EXCELLENT MIXING CONSOLE THAT CAN BE YOURS TODAY!

THIS UNIT WAS NEVER TOURED
