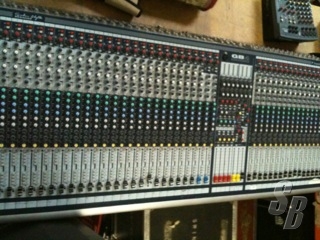

SOUNDCRAFT 40 CH GB4
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 24, 2010 - Viewed 142 times

SOUNDCRAFT 40 CH GB4 (YOM: ?) (S#: RW5693SM050724) AVERAGE FOR AGE (6-7)

FEATURES: SOUNDCRAFT GB4 40X8 MIXER FOR SALE. NO CASE. ALTHOUGH LARGELY CONVENTIONAL IN LAYOUT, THE GB4 DOES HAVE SOME UNIQUE MECHANICAL FEATURES. THE RUGGED STEEL CHASSIS HAS A SLOPING REAR CONNECTOR PANEL SO THAT IT IS EASIER TO CONFIGURE FROM THE FRONT OF THE DESK, WHILE THE INTEGRAL POWER SUPPLY HAS A LINK OPTION FOR AN EXTERNAL BACK-UP PSU.

FOUR MUTE GROUPS ALLOW SEVERAL CHANNELS TO BE MUTED SIMULTANEOUSLY, WHILE ANOTHER UNIQUE FACILITY IS THE LIMITER ON A SET OF DEDICATED RECORD OUTPUTS THAT MAKES IT EASIER TO CREATE A STEREO RECORDING OF THE MIX.

THE CONSOLE ALSO FEATURES AN OUTPUT MATRIX WITH SEVEN FEEDS TO FOUR OUTPUTS, BEING FED FROM THE GROUP BUSSES AND MAIN L, R AND C (MONO) OUTPUTS.

THE GB4 OFFERS A COMPREHENSIVE SET OF FUNCTIONS AND FACILITIES IN A SMALL AND COST-EFFECTIVE FOOTPRINT, AND DELIVERS THE HIGH PERFORMANCE AND RELIABILITY YOU WOULD EXPECT FROM A SOUNDCRAFT PRODUCT.

MONO INPUT MODULE
MIC INPUT: A BALANCED XLR CONNECTOR ACCEPTS BALANCED OR UNBALANCED MIC SIGNALS.

LINE INPUT: A BALANCED 1/4" JACK ACCEPTS BALANCED OR UNBALANCED LINE LEVEL SOURCES, SUCH AS KEYBOARDS. +48 PHANTOM POWER: INDIVIDUALLY SWITCHABLE ON EVERY CHANNEL. PHASE REVERSE: INDIVIDUALLY SWITCHABLE ON EVERY CHANNEL.

INPUT STAGE: PRECISION, LOW NOISE MIC PREAMPS DELIVER CONTINUOUSLY VARIABLE GAIN BETWEEN 5DB AND 60DB HIGH PASS FILTER: PROVIDES 18DB/OCTAVE ATTENUATION BELOW 100HZ. INSERT: THE INSERT POINT ON EVERY CHANNEL IS PRE-EQ, PRE-FADER. DIRECT OUTPUT: A PRE-/POST-FADER SWITCHABLE DIRECT OUTPUT IS AVAILABLE ON EVERY MONO CHANNEL.

EQ SECTION: THE 4-BAND EQUALISER SECTION PROVIDES HF/LF SHELVING AND SWEPT LO-MID AND HI-MID FREQUENCIES. THE EQ SECTION CAN BE SWITCHED IN AS DESIRED WITH THE EQ BUTTON. AUXILIARY SENDS: 8 AUXILIARY SENDS HAVE FLEXIBLE PRE/POST SWITCHING. AUXES 1-4 ARE PRE-FADER AND, IN NORMAL OPERATION, ARE ROUTED TO THE ROTARY AUX MASTERS 1-4. IN SWAP MODE, THEY ARE ROUTED TO GROUP FADERS 1-4 AND GROUP METERS 1-4, IDEAL FOR MONITOR MIXING APPLICATIONS. ROUTING: THE SIGNAL ON EACH FADER CAN BE ROUTED TO THE L-R MIX (VIA THE PAN CONTROL), THE C (MONO) BUS AND GROUPS 1&2 AND 3&4.

PAN: ENABLES ODD/EVEN GROUPS OR L-R MIX BUS TO BE ACCESSED INDIVIDUALLY. SOLO/PFL: EACH CHANNEL CAN BE SOLOED PRE-FADER, POST-EQ TO CHECK LEVELS. 100MM FADER: PROVIDES ACCURATE, CONSISTENT CONTROL OF AUDIO LEVELS.

METERING: A 4-SEGMENT LED DISPLAY ON EACH FADER STRIP PROVIDES AN INSTANT REFERENCE FOR THE SIGNAL LEVEL ON THAT CHANNEL.

STEREO INPUT MODULE TWO STEREO INPUTS ALLOW CONNECTION OF STEREO SOURCES, OR USE AS SOPHISTICATED EFFECTS RETURNS.

CONNECTIONS: EACH CHANNEL IS EQUIPPED WITH BOTH BALANCED JACK AND XLR PAIRS. THE LEFT OR RIGHT INPUT CAN BE SELECTED, IF REQUIRED, AS A SINGLE, MONO SOURCE TO BE ROUTED TO BOTH PATHS. ALTERNATIVELY BOTH THE LEFT AND RIGHT SIGNALS CAN BE MONO-SUMMED.

EQ SECTION: THE 4-BAND EQUALISER SECTION PROVIDES HF/LF SHELVING AND FIXED-FREQUENCY LO-MID AND HI-MID BOOST/ATTENUATION.

GROUP SECTION

GROUP OUTPUTS: A BALANCED XLR OUTPUT IS PROVIDED FOR EACH GROUP.

INSERT POINTS: PRE-FADE INSERT POINTS ARE PROVIDED ON JACK CONNECTORS.

GROUP METERING: FOUR 12-SEGMENT PEAK READING BARGRAPH METERS DISPLAY GROUP (OR AUX 1-4 IN SWAP MODE) OUTPUT LEVELS.

MATRIX ASSIGNMENT: FOUR ROTARY CONTROLS PER GROUP ALLOW INDIVIDUAL ASSIGNMENT TO MATRICES 1-4.

MATRIX MASTERS: THE LEVEL AT EACH MATRIX OUTPUT (BALANCED JACK) ON THE REAR PANEL IS CONTROLLED BY A ROTARY CONTROL, WITH A BUTTON FOR AFL.

AUXILIARY MASTERS: THE LEVEL AT EACH AUXILIARY OUTPUT (BALANCED JACK) ON THE REAR PANEL IS CONTROLLED BY A ROTARY CONTROL WITH A BUTTON FOR AFL.

GROUP/AUX SWAP: FOUR PUSH BUTTONS SWAP THE FUNCTIONS OF AUXILIARY 1-4 MASTER ROTARY CONTROLS AND GROUP MASTER FADERS. NB: THESE 12-SEGMENT PEAK READING BARGRAPH METERS ALWAYS DISPLAY THE SIGNAL SELECTED TO THE GROUP FADERS, I.E. GROUPS 1-4 IN NORMAL OPERATION, OR AUXES 1-4 WHEN USED IN SWAP MODE.

ROUTING: THE SIGNAL ON EACH GROUP FADER CAN BE ROUTED TO EITHER THE L-R MIX (VIA THE PAN CONTROL) OR TO THE C (MONO) BUS. 100MM GROUP FADERS: PROVIDE 10DB OF EXTRA GAIN ABOVE THE ZERO MARK, WHILST STILL ENSURING SMOOTH OPERATION. EACH GROUP IS ALSO EQUIPPED WITH AFL.

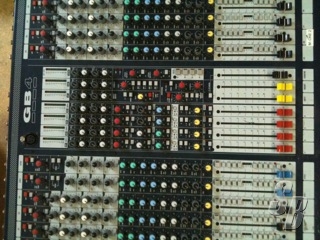

MASTER SECTION CONNECTIONS: L-R MIX AND C (MONO) BUS OUTPUTS APPEAR ON BALANCED XLR WITH JACK INSERT POINTS. THE L-R MIX IS ALSO PROVIDED ON TWO PAIRS OF BALANCED JACK OUTPUTS AND ONE PAIR OF RCA/PHONO OUTPUTS. A BALANCED XLR INPUT ALLOWS A TALKBACK MIC TO BE CONNECTED AND AN RCA/PHONO PAIR ALLOWS CONNECTION OF A 2-TRACK DEVICE. METERING: THREE 12-SEGMENT PEAK READING BARGRAPH METERS DISPLAY L-R MIX AND C (MONO) BUS OUTPUT LEVELS. MATRIX ASSIGNMENT: ANY OF THE FOUR GROUP MASTERS, LEFT, RIGHT AND C (MONO) BUSES CAN BE ROUTED TO ANY OF THE FOUR MATRIX OUTPUTS VIA INDIVIDUAL ROTARY CONTROLS.

TALKBACK: CAN BE ROUTED TO ALL GROUPS AND/OR AUX 1-2, 3-4, 5-6 & 7-8. A ROTARY CONTROL GOVERNS LEVEL. STEREO RETURNS: TWO ARE PROVIDED. STE RET 1 AND 2 CAN BE ROUTED TO GROUPS 1/2 AND 3/4 RESPECTIVELY, OR THE MAIN L-R MIX.

REC/ALT OUTPUT: POST-FADE SEND FROM THE L-R MIX. THE C (MONO) BUS MAY BE ADDED AND/OR THE MIX CAN BE MONO SUMMED. A ROTARY CONTROL GOVERNS LEVEL AND A SWITCHABLE LIMITER IS PROVIDED. MONITORING: THE `2TK' INPUTS, C (MONO) BUS OR L-R MIX CAN BE SELECTED FOR THE CONTROL ROOM OUTPUTS AND HEADPHONES. LEVELS ARE GOVERNED BY ROTARY CONTROLS. THE `2TK' INPUTS CAN ALSO BE ADDED TO THE L-R MIX VIA THE `2TK TO MIX' BUTTON.

EXTRAS: NO CASE OR LITES

MODIFICATIONS: NONE

HISTORY: USED IN A REHEARSAL ROOM

COMMENTS: JUST SERVICED AT SOUNDCRAFT IN NORTHRIDGE.

THIS UNIT WAS NEVER TOURED
