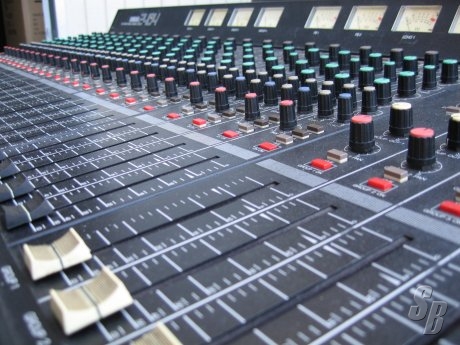

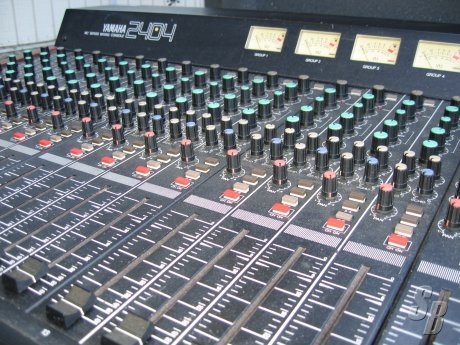

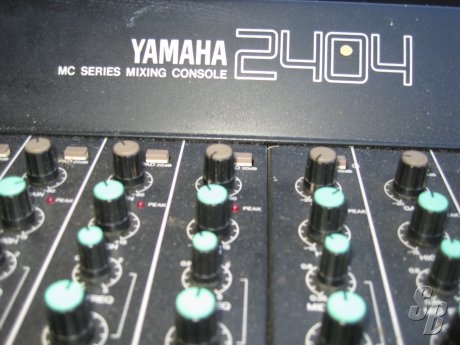

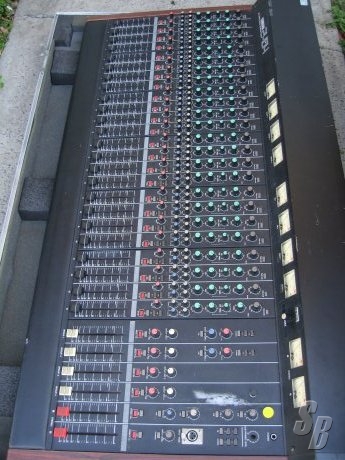

YAMAHA 2404 MC 24CH MIXING BOARD
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 29, 2007 - Viewed 174 times

DESCRIPTION: YAMAHA 2404 MC (?) (S#: TBA) SUPERB (8-9)

FEATURES: 24 CHANNEL MIXER | 4 SUB MIXES | STEREO OUT | 2 MONITOR SENDS | 2 AUX SENDS

* XLR AND 1/4" INPUTS ON EACH CHANNEL
* 3-BAND CHANNEL EQ WITH SWEEPABLE MID
* PHANTOM POWER SUPPLY
* BALANCED XLR CONNECTORS ON ALL PRIMARY INPUT AND OUTPUT CHANNELS FOR COMPLETE COMPATIBILITY WITH VIRTUALLY ALL PROFESSIONAL EQUIPMENT
* 8 MIXING BUSSES
* 4 PROGRAM, 2 ECHO, AND 2 FOLDBACK AND A STEREO MASTER BUSS
* INSERT MATCH POINTS ON ALL INPUT CHANNELS AND PROGRAM BUSSES OFFER MAXIMUM FLEXIBILITY
* INPUT CHANNEL EQUALIZERS OFFER A FULL 15DB OF FILTERING IN 3 BANDS WITH A SWEEPABLE MIDRANGE CONTROL FOR EXTRA FINE EQ CONTROL
* ON/OFF SWITCHES ON ALL INPUT CHANNEL GREATLY SIMPLIFY CHANNEL PUNCH-IN/OUT OPERATION
* PROVIDES 4 INPUT CHANNEL SELECTIONS FOR EASE AND CONVENIENCE WHEN USING PHANTOM-POWERED MICROPHONES
* A SOPHISTICATED CUE SYSTEM ALLOWS OPERATOR TO MONITOR VIA HEADPHONES ALL INPUTS, BUSSES, AND/OR EFFECTS WITHOUT ALTERING OR INTERRUPTING MIX
* SWITCHABLE PADS AND GAIN CONTROLS ON ALL CHANNELS ALLOW CHANNEL SENSITIVITY TO BE SET TO ACCEPT MICROPHONES, ELECTRICAL INSTUMENTS, OR OUTPUT FROM NEARLY ANY SIGNAL PROCESSING EQUIPMENT
* ILLUMINATED, HIGHLY PRECISE VU METERS ARE SWITCHABLE TO PROVIDE ACCURATE MONITORING OF PROGRAM, FOLDBACK, ECHO, AND STEREO MIXING BUSSES. INDEPENDENT METERS ARE FEATURED FOR EACH BUSS; BUILT IN PEAK LEDS INDICATE HIGH LEVEL PEAKS TO AVOID EVEN MOMENTARY DISTORTION
* PEAK LEDS ON EACH CHANNEL LIGHT WHENEVER POST-EQ/PREFADER SIGNAL COMES WITHIN 3 DB OF CLIPPING
* SOPHISTICATED TALKBACK SYSTEM PERMITS TOTAL COMMUNICATION BETWEEN OPERATOR, CREW AND PERFORMERS
* PAN AND GROUP ASSIGNMENT SWITCHES ON ALL INPUTS AND ALLOW CHANNEL SIGNALS TO BE EITHER INDEPENDENTLY ASSIGNED TO ONE OF THE PROGRAM BUSSES OR SIMULTANEOUSLY PANNED BETWEEN GROUPS 1 & 2, AND 3 & 4

SOMETIMES THE OLDER TECHNOLOGY OFFERS YOU A UNIQUE SOUND AND TONES THAT ARE VERY DESIRABLE IN SOME VENUES ... THIS BOARD HAS SOME SCRATCHES AND DINGS , BUT EVERYTHING WORKS AS FAR AS WE KNOW

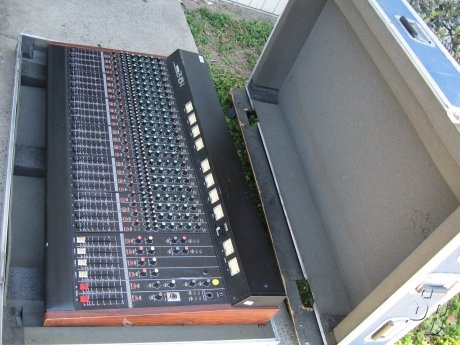

EXTRAS: ROAD CASE

MODIFICATIONS: NOPE

HISTORY: CHURCH ENVIRONMENT

COMMENTS: PICK UP AVAILABLE

THIS UNIT WAS NEVER TOURED
