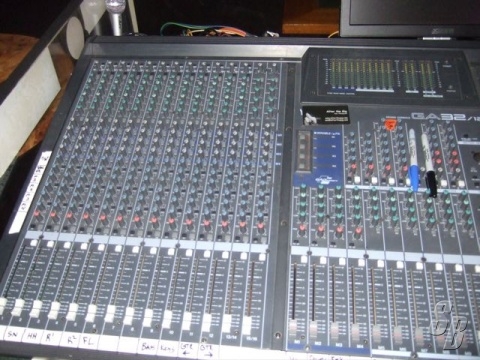

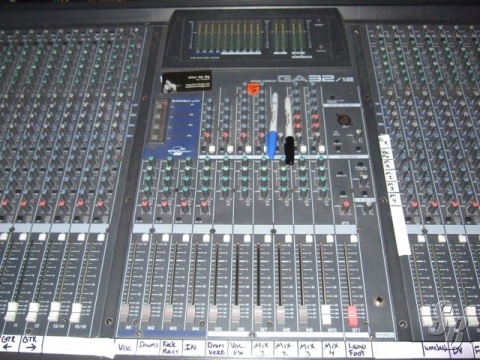

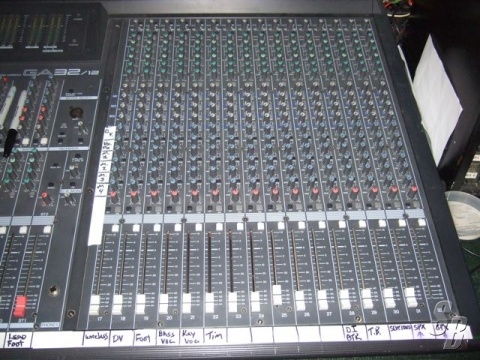

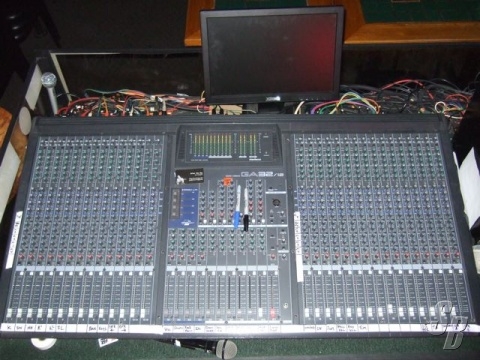

YAMAHA GA 32/12
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 11, 2009 - Viewed 204 times

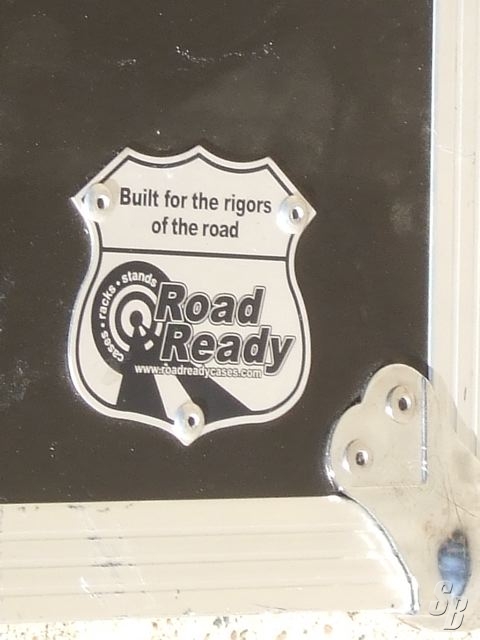

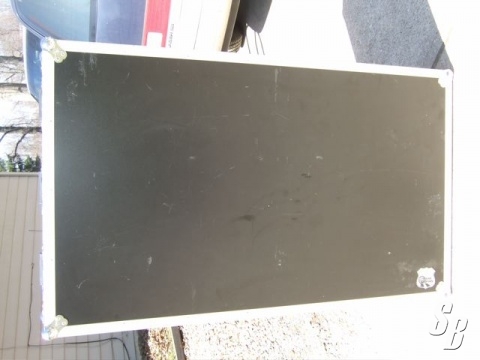

YAMAHA GA 32/12 WITH ROADCASE IN GOOD CONDITION: SN:TBD

FREQUENCY RESPONSE 20 HZ-20 KHZ + 1DB, -2DB, +4 DB 600 OHM (ST1 OUT, ST2 OUT, MIX OUT, MATRIX OUT)
TOTAL HARMONIC DISTORTION <0.1% AT 20HZ-20KHZ, +14 DB 600 OHM (ST1 OUT, ST2 OUT, MIX OUT, MATRIX OUT)
HUM AND NOISE RS = 150 OHM, 20 HZ-20 KHZ
MAXIMUM VOLTAGE GAIN 84 DB CH IN TO ST1 OUT, 84DB CH IN TO MIX OUT, 58 DB ST IN TO ST1 OUT, 58 DB ST IN TO MIX OUT
CROSSTALK AT 1 KHZ -70 DB ADJACENT INPUT; -70 DB INPUT TO OUTPUT
GAIN CONTROL 44 DB VARIABLE
CHANNEL INPUT PAD 0 DB/26 DB
CHANNEL INPUT HPF 80 HZ 12 DB/OCT
INPUT CHANNEL EQUALIZATION + OR - 15 DB MAXIMUM; HIGH 10 KHZ* SHELVING; HI-MID 400 HZ - 8 KHZ PEAKING; LO-MID 80HZ - 1.6 KHZ PEAKING; LOW 100 HZ* SHELVING
ST INPUT CHANNEL EQUALIZATION + OR - 15 DB MAXIMUM; HIGH 10 KHZ* SHELVING; HI-MID 3 KHZ PEAKING; LO-MID 800HZ PEAKING; LOW 100 HZ* SHELVING
MIX OUT EQUALIZATION + OR - 15 DB MAXIMUM; HIGH 10 KHZ* SHELVING; MID 300 HZ - 6 KHZ PEAKING; LOW 100 HZ* SHELVING

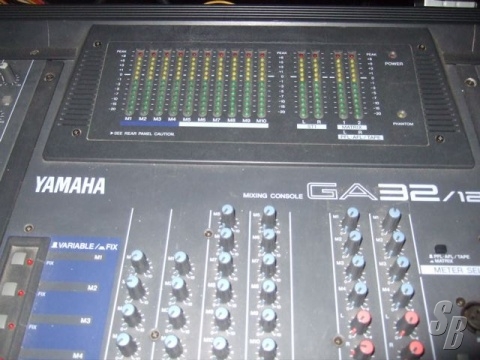

METERS 13 POINTS LED X 14
CHANNEL PEAK INDICATORS AN INDICATOR FOR EACH CHANNEL TURNS ON WHEN THE PRE-CHANNEL FADER SIGNAL IS - 3 DB BELOW CLIPPING.
PHANTOM POWER +48V (BALANCED)

FOB: OH
