YAMAHA M3000 40C
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 01, 2010 - Viewed 192 times

YAMAHA M3000 40C (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: THE M3000-40C PROVIDES A GENEROUS NUMBER OF INPUT
MODULES; 40 MONAURAL AND 4 STEREO (THE M3000-24
PROVIDES 24 MONAURAL AND 4 STEREO). STEREO OUTPUT, 16
MIX OUTPUTS, AND 8 MATRIX OUTPUTS ARE PROVIDED IN
ADDITION. THE M3000 IS SUITABLE FOR USE IN A WIDE
RANGE OF APPLICATIONS, SUCH AS THE MAIN MIXER FOR
SOUND REINFORCEMENT, AS A MONITOR MIXER, OR IN BUILDING
INSTALLATIONS.
• THE GA DIVERSITY FUNCTION ALLOWS EACH PAIR OF MIX
BUSES 1/2–7/8 TO BE SWITCHED BETWEEN GROUP BUS
(FIXED OUTPUT LEVEL FROM THE INPUT CHANNELS) AND AUX
BUS (VARIABLE OUTPUT LEVEL FROM THE INPUT CHANNELS).
BUS CONFIGURATION CAN BE SET UP AS NEEDED.
• THE SCENE MEMORY FUNCTION ALLOWS THE ON/OFF STATUS
OF THE MONO/STEREO INPUT CHANNELS, MIX OUT 1–16,
AND STEREO A OUT TO BE SAVED AS ONE OF 128
“SCENES.” SCENES CAN BE SELECTED FROM THE FRONT PANEL,
OR BY MIDI PROGRAM CHANGE MESSAGES FROM AN EXTERNAL
DEVICE. IN ADDITION, MIDI CONTROL CHANGE MESSAGES
TRANSMITTED FROM AN EXTERNAL DEVICE CAN BE USED
TO SWITCH THE INDIVIDUAL ON/OFF STATUS OF INPUT CHANNELS
OR BUS OUTPUTS CHANNELS.
• BY MODIFYING INTERNAL SETTINGS, SCENE MEMORY NUMBERS
1–8 CAN BE USED AS MUTE GROUPS. IN THIS CASE, UP
TO EIGHT MUTE (ON/OFF) SETTINGS CAN BE ADDED/DEFEATED
INDIVIDUALLY.
• EIGHT VCA MASTER FADERS ALLOW THE GAIN OF MULTIPLE
INPUT CHANNELS TO BE CONTROLLED AS A GROUP. BY GROUPING
THE DESIRED INPUT CHANNELS AND ASSIGNING THEM TO A
VCA MASTER FADER, YOU CAN ADJUST THE MIX AS APPROPRIATE
FOR THE ON-STATE ACTION USING THE VCA MASTER FADERS
ALONE.
• THE MONO INPUT CHANNELS PROVIDE A 26 DB PAD, HPF,
PHASE SWITCH, FOUR-BAND PARAMETRIC EQ, AND 100 MM
FULL STROKE FADERS AS WELL AS DIRECT OUT JACKS. PHANTOM
POWER IS ALSO PROVIDED, AND CAN BE SWITCHED ON/
OFF INDIVIDUALLY.
• THE M3000-40C FEATURES A CENTER MASTER DESIGN THAT
PLACES THE MASTER SECTION IN THE MIDDLE OF THE MIXER
FOR SUPERIOR OPERABILITY.
• ALL INPUT CHANNELS PROVIDE A PFL SWITCH, AND AN AFL
SWITCH IS PROVIDED FOR MATRIX OUT 1–8/MIX OUT
1–16/STEREO A OUT/STEREO B OUT. THIS MAKES IT
EASY TO CHECK YOUR INPUT/OUTPUT SOURCES.
• EIGHT INDEPENDENT MATRICES ARE PROVIDED. THE SIGNALS
FROM MIX OUT 1–16/STEREO A OUT AND DEDICATED
INPUT JACKS CAN BE MIXED AT THE DESIRED LEVELS, AND OUTPUT
FROM MATRIX OUT JACKS 1–8. THIS CAPABILITY CAN
BE USED FOR FOLDBACK OR AS A MIX FOR INDIVIDUAL SPEAKERS/
AMPS.
• ALL MONO INPUT CHANNELS, STEREO BUSES, AND MIX BUSES
PROVIDE AN INSERT I/O JACK. EXTERNAL EFFECT PROCESSORS
CAN BE INSERTED AS NECESSARY.
• THE TALKBACK SIGNAL AND TEST TONE OSCILLATORS CAN BE
SENT TO ANY OF THE MIX BUSES 1-2–13/16 OR THE STEREO
BUSES.
• AS MONITOR SOURCES FOR THE MONITOR OUTPUT, YOU CAN
SELECT (IN ADDITION TO STEREO A OUT), PFL FROM THE
INPUT CHANNELS, AFL/PFL FROM MATRIX OUT 1–8/
MIX OUT 1–16/STEREO A OUT/STEREO B OUT, OR
2TR IN 1/2.

EXTRAS: MANUAL AVAILABLE ONLINE

MODIFICATIONS: NO MODIFICATION HAS BEEN MADE.

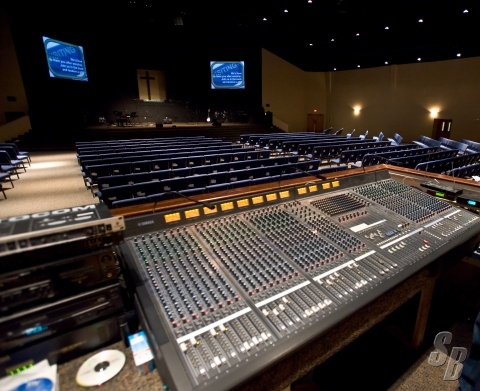

HISTORY: THIS UNIT WAS USED FOR THE PAST APPR. 9 YEARS AS THE MIXING CONSOLE FOR OUR CHURCH.

COMMENTS: COULD NEED A GOOD DUSTING

THIS UNIT WAS NEVER TOURED
