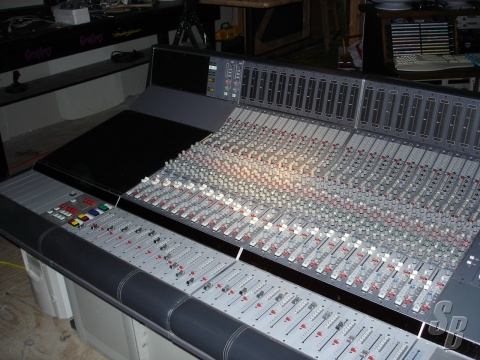

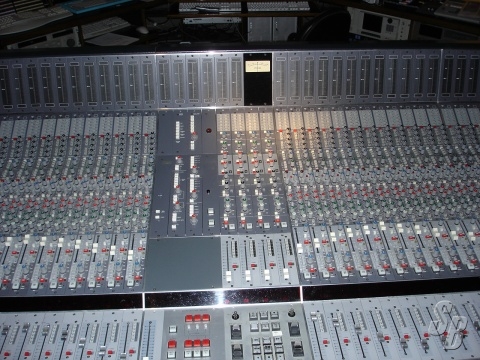

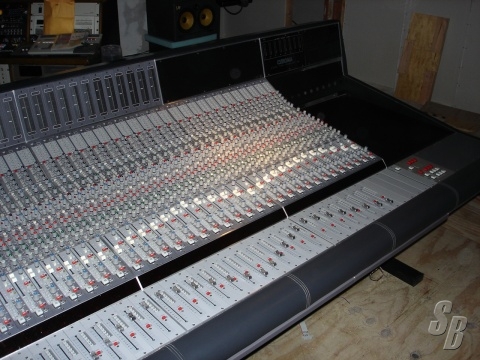

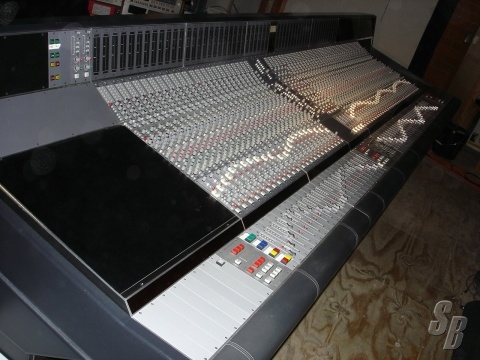

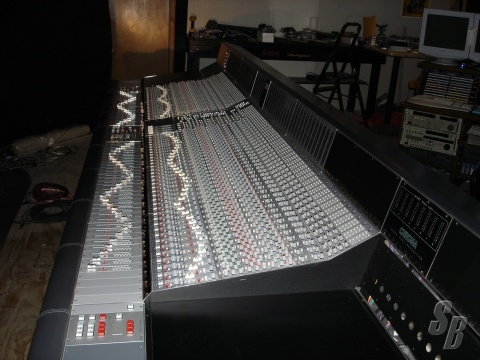

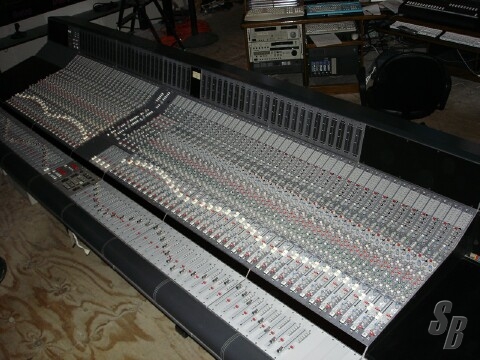

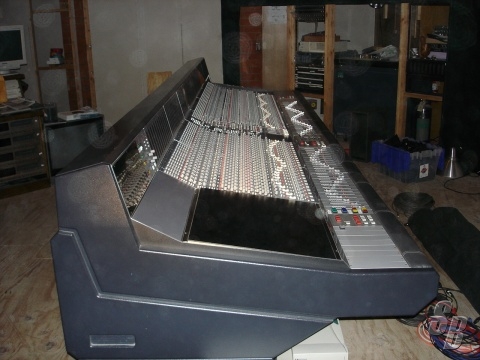

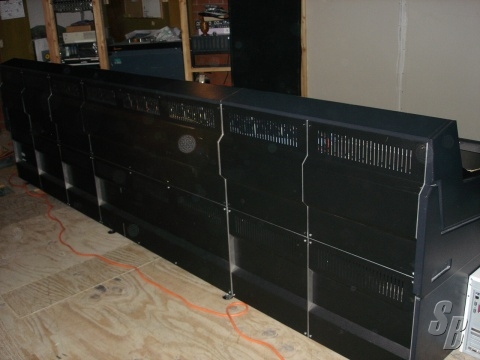

CUSTOM DESIGNED LAFONT CHROMA SURROUND FILM/MUSIC MIXING CONSOLE CUSTOM 13'-2" L
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on April 13, 2015 - Viewed 408 times

CUSTOM DESIGNED LAFONT CHROMA SURROUND FILM/MUSIC MIXING CONSOLE CUSTOM 13'-2" LONG 84 CH.FRAME, 120 MONO FADERS, 4 STEREO FADERS WITH A CUSTOM 1/2/3 POSITION FRAME;

THERE ARE 40 INDEPENDENT I/O BUSSES AS WELL AS 16 MORE MONITOR INPUTS IN WHICH YOU CAN BRING BACK ALREADY ACCOMPLISHED WORK (PRE-DUBS, PREMIXED MUSIC, ETC.) FOR LISTENING PURPOSES. EACH MODULE IS A DUAL MODULE IN THE SENSE OF BEING A BUSS/MONITOR RETURN MODULE AND AN INPUT MODULE. EACH MODULE HAS 2 EQ SECTIONS; GATES; A HIGHPASS/LOWPASS SECTION AND A PARAMETRIC AND SHELVING SECTION.

YOU CAN LINK CHANNELS TOGETHER TO CAUSE THE SAME AUDIO TO BE FED OUT OF MANY MODULES. THIS HAS INTERESTING APPLICATIONS IN TERMS OF CHANGING THE SOUND FROM ROOM TO ROOM OR FROM FUTZED TO UNFUTZED, ETC., USING THE AUTOMATION TO MAKE THE CROSS-FADES. EACH MODULE HAS INSERT AND A SINGLE-ENDED GATE, WHICH HAS BEEN USEFUL FOR MULTI-TRACK MATERIAL THAT HAS NO NOISE REDUCTION.

EACH OUTPUT SECTION OF EACH MODULE HAS 4 CONDITIONS OF BUSS/TAPE OR "A/B" SWITCHING, AND 3 OF THESE CONDITIONS ARE GANGABLE AND APPEAR ON PADDLE-TYPE A/B SWITCHES LOCATED AT 3 POSITIONS ALONG THE CONSOLE. THESE A/B GROUPS ARE INDEPENDENTLY MUTED.

EACH MODULE HAS 6 MONITOR ASSIGNS: L,C,R, LSURR, RSURR, AND SUB. THE CONSOLE CAN HANDLE DOLBY EX AND THE ORIGINAL SONY 8 TRACK SDDS, AND 10.2.FORMATS.

METERING IS (BOTH) PPM OR VU.

AUTOMATION IS "UPTOWN 990" AND HAS SWITCH AND FADER AUTOMATION. THE AUTOMATION MODES ARE INDEPENDENTLY SWITCHABLE BY EACH OF THE 1/2/3 MIXERS.

INCLUDED IS A REMOTE STANDALONE 576 POINT TT PATCH BAY WITH PICKOFF POINTS FOR ALL INPUTS AND ALL OUTPUTS.

FEATURES 56 BUS,, EXTERNAL 576 POINT TT PATCH BAY, 6 POWER SUPPLIES IN RACK, 1 UPTOWN 990 AUTOMATION POWER SUPPLY, UPTOWN 990 AUTOMATION WINDOWS 2000 COMPUTER, 50' ELCO WIRING HARNESSES, POWER CABLES, SPARES, ETC, XLNT CONDITION.

THE LIST OF FEATURE FILMS MIXED ON THIS ONE OF A KIND CONSOLE IS ENDLESS !!!


SEVERAL MORE PIX AVAILABLE TO SHOW BEAUTIFUL CONDITION !
