ID # 45561    CURRENT CATEGORY - CONSOLE/RECORDING

HARRISON SERIES 12 CUSTOM (YOM: 2004) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on May 04, 2010 - Viewed 309 times

Click on thumbnail to enlarge

HARRISON SERIES 12 CUSTOM (YOM: 2004) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]



HARRISON SERIES 12 CUSTOM (YOM: 2004) (S#: TBD) SUPERB (8-9)
ALL HARDWARE, X-ENGINES, ROUTER, TO MAKE SYSTEM FUNCTIONAL.

THIS IS THE DEAL OF A LIFE TIME FOR A BROADCAST HOUSE, RECORDING, OR POST-PRODUCTION STUDIO THAT IS WANTING A PREMIER, HIGH-END RECORDING CONSOLE. THE PROCESSING INCLUDED IN THIS SYSTEM MAKE IT AN AMAZING DEAL.

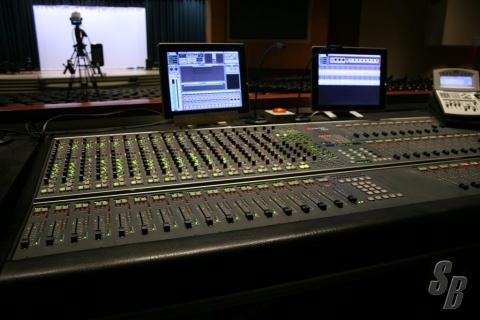

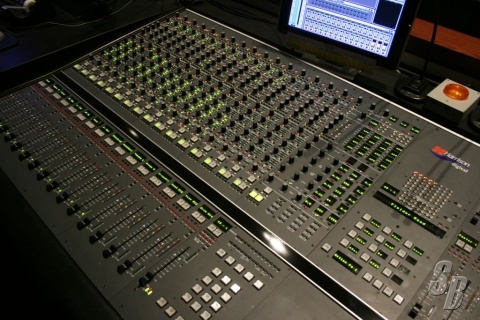

FEATURES: HARRISON SERIES 12 (CUSTOM DESIGN)
192 ROUTABLE INPUTS TO 64 PREAMPS
AUTOMATION AND TOTAL RECALL
8 BUSSES
32 AUX OUTPUTS
32 REMOTE FADERS
UPGRADED X-ENGINES

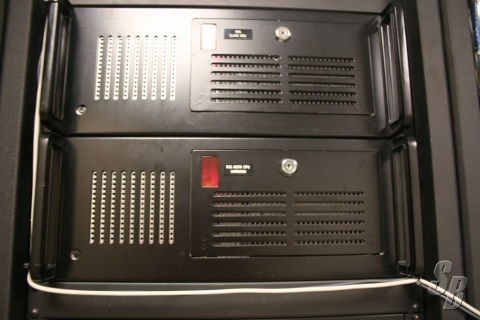

THIS CUSTOM HARRISON SERIES 12 HAS BEEN DESIGNED WITH 192 CHANNEL DIGITAL ROUTING TO 64 PREMIUM PREAMPS AND IS COMPLETELY EXPANDABLE TO ALMOST AN INFINITE NUMBER OF INPUTS AS WELL AS OUTPUTS. THE PRES HAVE TRIPLE INPUT AS WELL AS LINE INPUT AVAILABILITY ALLOWING RECALLABILLITY OF ALL 192 INS. THE CURRENT CONFIGURATION GIVES IT 64 PRE AND PLUS THE LINE OR DIGITAL MADI/AES INPUTS, AND THERE ARE 4 MADI 56 CH CARDS THAT CAN BE PATCHED TO ROUTE ANY OF THE PRES AES OR OUTPUTS. ANY COMBINATION OF INPUTS OR OUTPUTS CAN BE ACHIEVED, BUT CURRENTLY THEY FEEDS 32 AUX OUTPUTS AND 8 MAIN OUTS. IT CAN MIX LCR, 5.1 WITH FULL PANNING CAN BE UPDATED TO DO 7.1, OR ANY CONFIGURATION YOU CAN THINK OF. ALL OF THE BUSS CONTROLS ROUTING, AND PANNING FUNCTIONS, HAVE FULL KNOB CONTROL ON ON THE SURFACE. IT HAS THE ABILITY TO CONFIGURE MULTIPLE BUSSES SUCH AS REMOTE FADERS (DCA/VCA), SUBGROUPS, MATRIX MIXES, AND OTHERS) AND TO ADD ADDITIONAL PLUGINS SUCH AS THE XTOOLS. THIS CONSOLE RUNS HARRISON'S IKIS ON TWO BEOS CPUS ONE AS A MASTER, THE OTHER AS A SLAVE FOR MULTIPLE USERS, OR A DUAL REDUNDANT MASTER BACKUP. - 3 OF THE LATEST GENERATION X ENGINES AS WELL PROVIDE THE SYSTEM WITH PLENTY OF PROCESSING AS WELL AS ROOM FOR EXPANDABILITY AND PLUGIN PROCESSING. ALL CHANNELS BOTH IN AND OUT HAVE GATE/EXPANDERS, AND COMPRESSION WITH SIDE KEY CHAIN. EACH HAS 8 BANDS OF PARAMETRIC EQ, SHELVING AND HIGH PASS AND LOW PASS FILTERS. - EVERY FEATURE IS FULLY RECALLABLE, NO OTHER UNIT HAS BOTH THE KNOB-PER-FUNCTION AND DIGITAL ROUTING CAPABILITY OF THE SERIES-TWELVE. ADDITIONALLY, THIS CONFIGURATION IS UPGRADEABLE, USING THE SAME DIGITAL PROCESSING ENGINES. BY INCLUDING 24-BIT A/D AND D/A CONVERTERS (48K OR 96K) THE INFRASTRUCTURE WILL ALLOW US TO ADD HIGH-END AUDIO RECORDING AS WELL AS AUDIO FOR VIDEO RECORDING. SINCE THE CONTROL SURFACES ARE TOTALLY SCALEABLE, THE RECORDING DESK USES A KNOB-PER-FUNCTION IN A COMPACT VERY USABLE FOOTPRINT BY USING MULTIPLE LAYERS AND 8 PROFILE LAYOUTS THIS CONSOLE CAN QUICKLY ACCESS HUNDREDS OF INPUTS, OUTPUT AND REMOTE FADER CONTROLS(DCA/VCA) SUBGROUPS, MATRIX BUSES, AND ARRANGE THEM IN ANY MANNER THE CONTROL SURFACE THERE IS NO LIMIT TO HOW YOU CAN CUSTOMIZE YOUR WORK LAYOUT. THE LEFT SIDE OF THE CONTROL SURFACE HAS 16 CHANNELS X 4 LAYERS WITH KNOBS FOR EVERY FUNCTION ON ALL. THE RIGHT HAS 44 CHANEL STRIPS EACH WITH 4 LAYERS. THIS GIVE THE CONTROL SURFACE AN AMAZING ANALOG CONTROL FEEL WITH ALL THE FUNCTIONAL BENEFITS OF DIGITAL, WITHOUT SACRIFICING SOUND QUALITY.

X RANGE

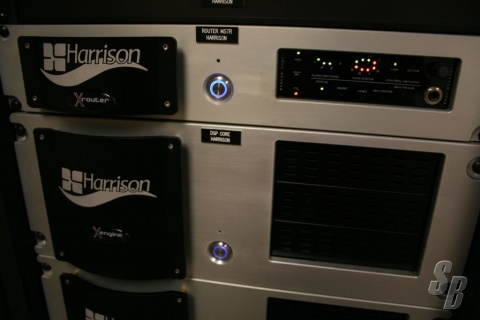

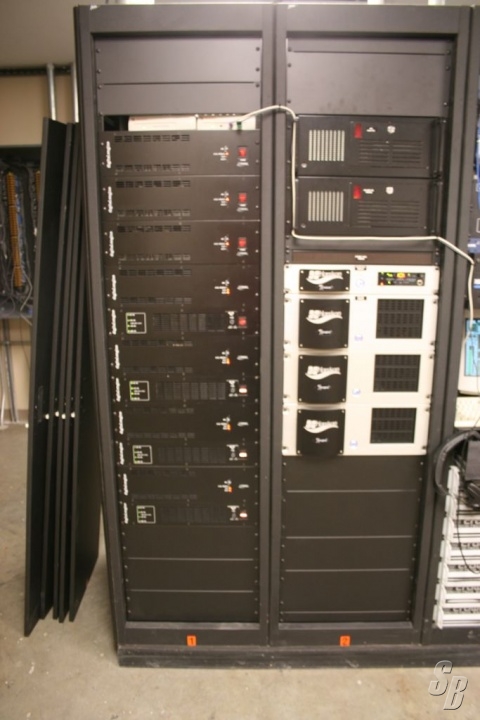

THE SYSTEM CONSISTS OF 3 XRANGE ENGINES WITH 1 XROUTER. THIS THE LATEST IN DSP DEVELOPMENT FROM HARRISON. THE XRANGE IS A FUTURE-PROOF, ROBUST, AND POWERFUL, NEW GENERATION OF DIGITAL PROCESSING/ROUTING FOR ALL HARRISON CONSOLES. - XRANGE IS ALSO AVAILABLE IN A VARIETY OF "STAND-ALONE" CONFIGURATIONS AS WELL. XRANGE USES MADI, LINUX, 64 BIT NATIVE PROCESSING, AND 64BIT AUDIO-OVER-ETHERNET TECHNOLOGY TO REDEFINE THE WAY LARGE FORMAT DSP SYSTEMS WORK. HARRISON'S USE OF OFF-THE-SHELF NATIVE PROCESSING ALSO GUARANTEES THAT YOU WILL HAVE A CONSTANT AND ENDLESS UPGRADE PATH, UNLIKE PROPRIETARY DESIGNS WHICH MUST BE OCCASIONALLY DISCARDED IN FAVOR OF A NEW ARCHITECTURE.
HARRISON'S "FUTURE PROOFING" POLICY GUARANTEES THAT AS MORE COMPUTER HORSEPOWER BECOMES AVAILABLE, THEIR CUSTOMERS WILL BE ABLE TO TAKE ADVANTAGE OF IT WITHOUT HAVING TO BUY A COMPLETE NEW CONSOLE. CURRENTLY IT IS EXPANDABLE TO 1588 FULL-FEATURED DSP CHANNELS (INCLUDING FADER, 8-BAND EQ, GATE, COMPRESSOR, 2 PATCH POINTS, AND 96 BUSSES)

IKIS SOFTWARE

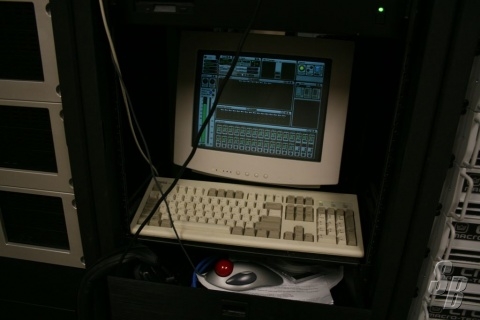

IKIS IS HARRISON'S STUDIO AUTOMATION SYSTEM. - IKIS IS THE "OPERATING SYSTEM" WHICH PROVIDES GRAPHICAL CONTROL, AUTOMATION, SAVE/RECALL, AND CONFIGURATION OF ALL HARRISON DIGITAL CONSOLES. IKIS IS ALSO A NETWORKING PROTOCOL WHICH CONNECTS MULTIPLE DEVICES TOGETHER INCLUDING ROUTERS, MIC PREAMPS, EFFECTS, MIDI DEVICES, DIGITAL AUDIO WORKSTATIONS, TRANSPORT CONTROLLERS, AND EXTERNAL SWITCHES AND RELAYS. - MULTIPLE IKIS COMPUTERS CAN BE CONNECTED TO THE SAME NETWORK. - THIS ALLOWS FULL DATA, FILING, AND CONTROL REDUNDANCY IN THE CASE OF A BROADCAST CONSOLE, OR IT CAN BE USED TO PROVIDE REMOTE ACCESS TO THE CONSOLE FROM ANOTHER ROOM OR EVEN ANOTHER FACILITY. IKIS CAN PARTITION THE CONSOLE INTO SEVERAL DIFFERENT USERS, EACH CONTROLLING THEIR OWN SUBSET OF CONSOLE RESOURCES. IKIS DOES NOT REQUIRE A KVM SYSTEM OR "REMOTE DESKTOP": EACH IKIS COMPUTER IS A STANDALONE APPLICATION WITH FULL AUTONOMOUS CONTROL. ANY IKIS COMPUTER CAN CONTROL ANY USER'S RESOURCES, AND EACH IKIS COMPUTER CAN BE LIMITED TO CERTAIN FUNCTIONS IF NEEDED. PASSWORD PROTECTION IS IMPLEMENTED TO PROTECT THE CRITICAL CONSOLE SETTINGS IN A BROADCAST FACILITY.

IKIS PROVIDES A RICH SERIES OF PAGES, CUSTOMIZED TO THE CONSOLE APPLICATION (FILM,MUSIC, SOUND REINFORCEMENT, OR BROADCAST). THESE PAGES CAN FOLLOW THE OPERATOR WHEN HE IS WORKING ON THE CONSOLE, PROVIDING HEADS-UP DISPLAY OF DSP, FILING, AND AUTOMATION FUNCTIONS. OR THE USER CAN "LOCK" A DISPLAY TO A PARTICULAR PAGE. SINCE MULTIPLE IKIS SCREENS CAN BE CONNECTED TO A CONSOLE, IT IS POSSIBLE TO HAVE A RICH COMPLEMENT OF DISPLAYS SHOWING BOTH AN OVERVIEW, AND THE FINE DETAILS OF A MIX.

IKIS CAN ACCOMMODATE TOUCH SCREEN AND PEN-BASED SCREEN OPTIONS. THE IKIS SCREENS ARE RESOLUTION-INDEPENDENT. 21" MONITORS OR LARGER CAN BE UTILIZED TO THEIR FULL EXTENT.
MENUS AND OTHER GRAPHICAL OBJECTS ARE ANIMATED AND SEMI-TRANSPARENT. FEATURES LIKE DRAG-N-DROP, FINE ADJUST, CONTEXTUAL MENUS, AND POPUP HELP CREATE AN INTUITIVE WORKFLOW. THIS ATTENTION TO DETAIL AND BREADTH OF SCOPE GIVES IKIS AN UNMATCHED FEEL AMONG CONSOLE AUTOMATION SYSTEMS
XTOOLS
THE HARRISON XTOOLS PACKAGE IS A OPTIONAL COLLECTION OF AUDIO TOOLS AND PROCESSING PLUGINS WHICH EXPAND THE DSP FUNCTIONS OF THE CONSOLE, JUST LIKE PLUGINS IN A MODERN WORKSTATION. - XTOOL PLUGINS MAY BE INSERTED INTO THE SIGNAL PATH JUST LIKE A PIECE OF EXTERNAL GEAR, BUT XTOOLS ARE AUTOMATED, RECALLED, AND DIRECTLY INTERCONNECTED WITH THE CONSOLE.

EXTRAS: ALL HARDWARE, X-ENGINES, ROUTER, TO MAKE SYSTEM FUNCTIONAL.

MODIFICATIONS: THE SYSTEM RECEIVED A $100,000 UPGRADE IN 2007 BY HARRISON TO UTILIZE THEIR LATEST X-RANGE DSP MAKING THIS AN INCREDIBLE BUY. IF YOU ARE IN THE MARKET FOR THIS LEVEL OF CONSOLE, THAN YOU WILL UNDERSTAND THE TYPE OF PRECISION THE SYSTEM RECOMMENDS.

HISTORY: ITEM WAS PURCHASED BRAND NEW FROM HARRISON AND IS CURRENTLY IN USE AT A CHURCH IN ARLINGTON, TX.

THIS UNIT WAS NEVER TOURED

"ONCE YOU HAVE REACHED THE LEVEL OF A HARRISON CONSOLE, YOU ARE READY FOR NEW FLIGHTS OF ENGINEERING IMAGINATION. UNLIMITED. UNALTERED. UNINHIBITED BY THE BOUNDS OF TECHNICAL OBSTRUCTIONS. YOU BECOME THE STUDIO. YOU ARE THE LIVING EXTENSION OF THE ELECTRONIC LINK BETWEEN THE PERFECT SOUND AND THE PERFECT MASTER. YOU ARE THE ULTIMATE CONDUCTOR IN THE UNIVERSE OF RECORDED MUSIC" - HARRISON 4032 BROCHURE, CIRCA 1975

Additional Details
ID#: 45561
Listing Type:
Standard
Model: SERIES 12 CUSTOM
Manufacturer: HARRISON
Condition: SUPERB (8-9)
Shipping Info: 0.00 lbs.,
Seller's Location: TX, USA
Updated: May 04, 2010
M.S.R.P.: $0.00
Asking Price: SOLD
