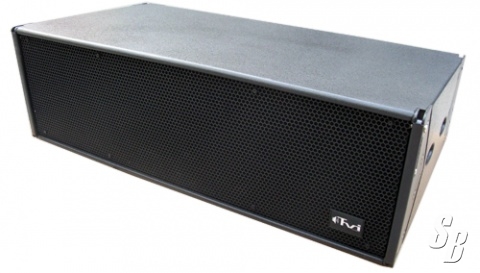

C-212II TRI-AMP TOURING LINE ARRAY ELEMENT
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on March 24, 2010 - Viewed 217 times

THE C-212II IS THE PERFECT COMBINATION OF EASE OF USE, POWER EFFICIENCY AND EXCELLENT SOUND QUALITY. EACH ENCLOSURE IS CONSTRUCTED OF HIGH GRADE BIRCH PLY-WOOD AND IS CUSTOM FITTED WITH INDUSTRY STANDARD STEEL FLY HARDWARE. OUR HARDWARE IS BUILT TO BE USER FRIENDLY IN BOTH FLOWN ARRAY AND GROUND STACKING APPLICATIONS. ALL OF OUR HARDWARE HAS BEEN BUILT AND TESTED AT A 10:1 STATIC LOAD FACTOR ALLOWING USERS TO FLY UP TO 12 PASSIVE C-212II LINE ARRAY ELEMENTS ON A SINGLE HANG USING OUR "A" FLY BAR.

OUR ENTIRE LINE ARRAY SELECTION IS HAND WIRED USING PREMIUM 14 GAUGE WIRING. ALL OF OUR DRIVERS ARE BUILT USING A DURABLE CAST FAME BASKET DESIGNED FOR LONGEVITY. OUR COMPRESSION DRIVERS ARE BUILT USING REPLACEABLE TITANIUM DIAPHRAGMS FOR SUPERB SOUND QUALITY AND PERFORMANCE. WE USE A STANDARD PHASE PLUG TO CONTROL THE ISOPHASIC WAVE FORM AS WELL AS WAVE GUIDE ON MANY OF OUR MODELS. OUR COMPONENTS HAVE PROVEN TRACK RECORD ON TOURS RANGING FROM STADIUMS TO FESTIVALS OF UP TO 30 SHOWS PER MONTH WITH PRACTICALLY A NONEXISTENT FAILURE RATE.

ALL C-212II ENCLOSURES ARE EQUIPPED WITH A REMOVABLE BACK PANEL WHERE THE NL8 INPUT/OUTPUT CONNECTORS ARE LOCATED. THIS BACK PANEL CAN BE DISCONNECTED FROM THE INTERNAL MULTI PIN CONNECTOR AND QUICKLY REMOVED. IN PLACE OF THE PASSIVE BACK PANEL, OUR CUSTOMERS HAVE THE OPTION TO PURCHASE AND INSTALL OUR 3 CHANNEL DIGITAL SWITCHING AMPLIFIER MODULE. THE MODULE CAN BE QUICKLY AND EASILY CONNECTED, ALLOWING FOR A SEAMLESS CONVERSION FROM NON-POWERED TO A SELF POWERED ARRAY SYSTEM. EACH POWER AMPLIFIER MODULE IS CAPABLE OF POWERING ITSELF AND ONE ADDITIONAL NON-POWERED C-212II LINE ARRAY ENCLOSURE IN TRI-AMP MODE. THE MODULE IS CONNECTED TO THE PASSIVE ENCLOSURE WITH NEUTRIK NL8 CONNECTORS. EACH C-212II AMPLIFIER MODULE IS POWERED BY "ICE" AND OFFERS AN INTEGRATED ACTIVE CROSSOVER SYSTEM ALONG WITH DSP CORRECTION THAT HAS BEEN FINE TUNED IN AN ANECHOIC CHAMBER TO PROVIDE THE USER WITH CHAMBERED FLAT RESPONSE.

THE NON-POWERED VERSION OF THE C-212II CAN BE OPERATED IN TRI-AMP MODE ONLY UNLESS CUSTOM ORDERED OTHERWISE. THE C-212II IS WIRED AT 8 OHM FOR EACH MID FREQUENCY DRIVER AND 16 OHM FOR THE HIGH FREQUENCY. IN THIS MODE, (PIN +1/-1) CARRIES SIGNAL FOR THE RIGHT MID FREQUENCY, (PIN +2/-2) FOR THE LEFT MID FREQUENCY AND (PIN +3/-3) CARRIES SIGNAL FOR THE HIGH FREQUENCY. THE INTERNAL CROSSOVER IS NOT UTILIZED IN TRI-AMP MODE. AN EXTERNAL CROSSOVER IS NEEDED TO SEPARATE THE FREQUENCY RANGE ON ALL NON-POWERED MODELS WHEN THIS MODE IS SELECTED.

WE PRIDE OURSELVES IN OUR PRODUCT AND SERVICE. TVI LINE ARRAY ENCLOSURES ARE CONSERVATIVELY RATED. WE TEST OUR PRODUCTS STRINGENTLY AND MARKET THEM CONSERVATIVELY SO THAT WHEN THE END USER RECEIVES THE PRODUCT IT AMAZES THEM EVERY TIME. OUR END GOAL IS TO OFFER OUR CUSTOMERS A PRODUCT THAT WILL OUTPERFORM OUR COMPETITOR'S PRODUCT WATT FOR WATT EVERY TIME, WITHOUT EXCEPTIONS! LOOK NO FURTHER, TALK TO OUR CUSTOMERS & EXPERIENCE THE REVOLUTION!

FEATURES & BENEFITS

-TRI-AMP LINE ARRAY ENCLOSURE

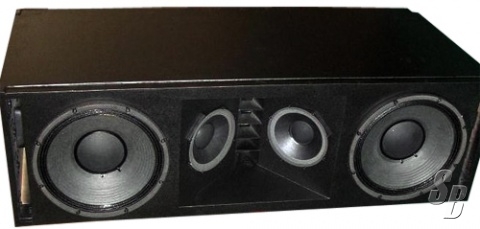

-DUAL 12" WOOFER, DUAL 8" MF, & DUAL 1.7" HF
-10 X 90 DEGREE COVERAGE
-OPERATES DOWN TO 45HZ
-INTEGRATED WAVE GUIDE
-ARRAY UP TO 12 ELEMENTS
-10:1 STATIC LOAD FACTOR
-EASILY GROUND STACKABLE
-POWERED VERSION AVAILABLE
