EAW MICRO WEDGE 15 - MW15 (FREE SHIPPING)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on May 09, 2017 - Viewed 142 times

EAW MICRO WEDGE 15 - MW15 (FREE SHIPPING)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]

EAW MW15 (YOM: ?) (S#: TBD) SUPERB (8-9) FEATURES:



"BEST WEDGE ON THE MARKET. DAVE RAT DESIGNED IT, AND THAT SAYS IT ALL FOR ME." - GEORGE



FROM EAW'S WEBSITE:



THE MICROWEDGE MW15 IS COLLABORATION BETWEEN ORIGINAL MICROWEDGE SERIES INVENTOR DAVE “RAT” LEVINE (FOUNDER OF RAT SOUND SYSTEMS, INC.) AND THE EAW ENGINEERING DEPARTMENT, RESULTING IN DRAMATICALLY UPGRADED PERFORMANCE AND ERGONOMICS. THE COAXIAL DESIGN PAIRS A 15-INCH WOOFER WITH A 3-INCH VOICE-COIL COMPRESSION DRIVER TO PROVIDE FULL YET CONTROLLED 90-DEGREE CONICAL DISPERSION.

ALL FREQUENCIES EMANATE FROM THE EXACT SAME POINT, ELIMINATING CROSSOVER REGION PROBLEMS AND TIME/PHASE IRREGULARITIES, AS WELL AS OPTIMIZING COHERENCY. THE COAXIAL APPROACH ALSO CONTRIBUTES TO A VERY COMPACT, LOW-PROFILE FOOTPRINT.

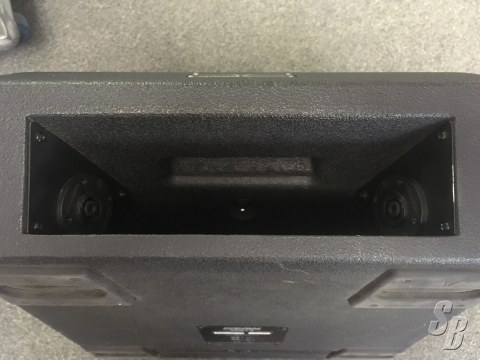

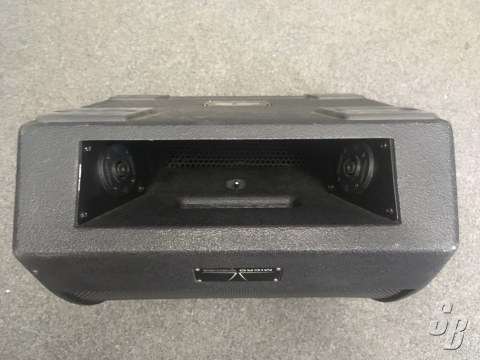

MICROWEDGE MW15 MONITORS ARE PROCESSOR ENHANCED (RATHER THAN PROCESSOR DEPENDANT) FOR TRUE “PLUG AND PLAY” OPERATION. USER SELECTABLE SINGLE-AMP AND BI-AMP MODES ARE PROVIDED. THE LARGE PORT ON THE FRONT OF THE CABINET ENHANCES LF RESPONSE IN COUPLING WITH THE FLOOR, AND THIS PORT HOUSES BOTH THE CARRYING HANDLE AND THE PASSIVE/ACTIVE MODE SWITCH. THE PORT ALSO CONTAINS DUAL INPUT CONNECTORS, KEEPING THEM CONCEALED AND PROTECTED, AND ALLOWING WEDGES TO BE PLACED AS CLOSE TOGETHER AS DESIRED. ADDITIONAL CABLE CAN BE STORED IN THE PORT WITHOUT IMPACTING LF PERFORMANCE.

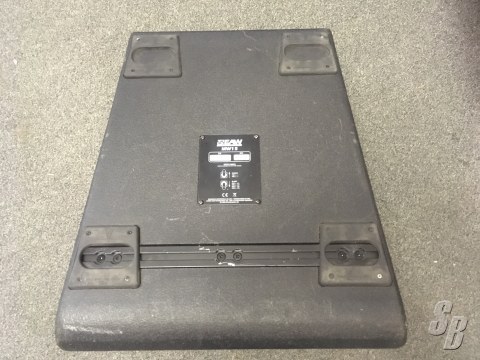

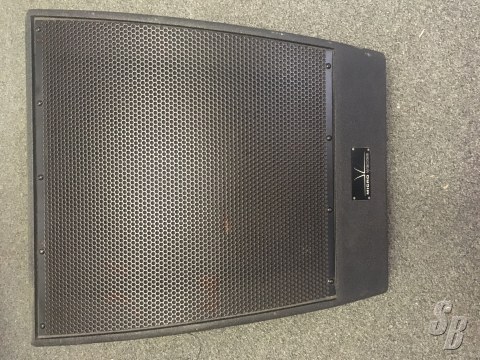

RUBBER FEET ON THE BOTTOM OF THE ENCLOSURE REDUCE ABRASION, AND NEW INTEGRAL RIGGING HARDWARE – ALSO MOUNTED ON THE ENCLOSURE BOTTOM – FACILITATES EASY FLYING. THE BALTIC BIRCH CABINETS ARE PROTECTED WITH EAW’S ROADCOAT™ FINISH THAT’S EXTREMELY DURABLE, AND THE RUGGED STEEL GRILLE KEEPS ITS DISTINCTIVE SHAPE EVEN WHEN STOOD UPON. ALL COMPONENTS ARE HIGHLY LIQUID TOLERANT – VIRTUALLY IMPERVIOUS TO SPILLED DRINKS AS WELL AS NATURAL ELEMENTS LIKE RAIN.

• HIGHLY COHERENT COAXIAL DESIGN (15-INCH WOOFER)

• ENHANCED FIDELITY AND POWER HANDLING

• UPGRADED TRANSDUCERS AND CROSSOVER DESIGN

• SWITCHABLE SINGLE-AMP/BI-AMP MODES

• CONVENIENT INPUT CONNECTOR LOCATION



CONFIGURATION:

SUBSYSTEM:

LF: 15-IN CONE, VENTED, COAXIAL WITH HF

HF: 1X 1.4 IN EXIT, 3 IN. VOICE COIL COMPRESSION DRIVER, HORN-LOADED

OPERATING MODE:

SINGLE-AMP LF/HF; BI-AMP LF, HF

HIGH PASS FILTER; DSP W/2-WAY FILTERS



PERFORMANCE:

OPERATING RANGE (-10 DB, HZ):

62 – 20K

AXIAL SENSITIVITY (1W @ 1M, DB SPL):

LF: 97

HF: 106

FULL RANGE: 96

POWER HANDLING / IMPEDANCE (WATTS @ OHMS):

LF: 1000 @ 8

>HF: 150 @ 8

FULL RANGE: 1000 @ 8

CALCULATED MAXIMUM OUTPUT PEAK (DB SPL):

LF: 133

HF: 134

FULL RANGE: 132

CALCULATED MAXIMUM OUTPUT LONG TERM (DB SPL):

LF: 127

HF: 128

FULL RANGE: 126

NOMINAL COVERAGE (DEGREES):

HORIZONTAL: 90

VERTICAL: 90

POWERING:

SWITCHABLE: FULL RANGE OR BIAMPLIFIED





DIMENSIONS INCHES/MILLIMETERS):



HEIGHT (MIN. STAGE): 14.10/357.0

WIDTH (FRONT): 14.75/374.6

WIDTH (REAR): 19.05/483.9

DEPTH: 24.17/614.0

TRAP. ANGLE (DEGREES PER SIDE): 6.5

FLOOR (DEGREES UP): 27



WEIGHT (POUNDS/KILOGRAMS):



NET: 65/29.5

SHIPPING: 74/33.6







EXTRAS:

NO EXTRAS

MODIFICATIONS:

NO MODIFICATIONS

HISTORY:

CORPORATE SHOWS ONLY, NO TOURING.

COMMENTS:

EXCELLENT CONDITION (WOULD BE MINT BUT HAS A FEW SCUFFS).

THIS UNIT WAS NEVER TOURED
