APOGEE C3 (PAIR)
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on October 24, 2016 - Viewed 268 times

APOGEE C3 (YOM: ?) (S#: TBD) GOOD (7-8)

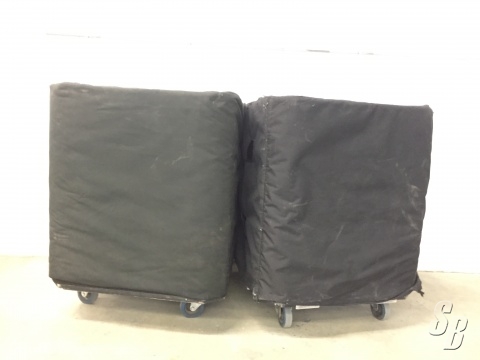

FEATURES: THESE PAIR OF C3'S INCLUDE SPEAKER COVERS AND WHEEL BOARDS. FLY HARDWARE CAN BE PURCHASED AT AN ADDITIONAL COST.

FORMAT:
TRI-AMPED/ELECTRONICALLY-COUPLED
DISPERSION:
H: 60° X V: 40°
FREQUENCY RESPONSE (1M ON AXIS):
58 HZ TO 17.3 HZ ± 3 DB
MAX SPL (@1M):
132 DB CONT./138 DB PEAK
PTML (PEAK TRANSIENT MECHANICAL LIMIT):
150 DB
SENSITIVITY (1W @ 1M):
LF: 95 DB
MF: 109 DB
HF: 110 DB
NOMINAL IMPEDANCE:
8Ω EACH DRIVER
MAX POWER HANDLING:
LF: 400 W CONT./1600 W PEAK
MF: 150 W CONT./600 W PEAK
HF: 100 W CONT./400 W PEAK
DIMENSIONS:
FRONT: 29"(727MM) WIDE BY 31"(786MM) HIGH
REAR: 22"(55MM) WIDE BY 31"(786MM) HIGH
DEPTH: 30"(762MM)
WEIGHT:
230 LBS (104.5 KG)

ENCLOSURE TYPE:
15° TRAPEZOIDAL, FULLY HORN-LOADED, OPTIMALLY VENTED BASS
CABINET CONSTRUCTION:
MULTI-PLY FINLAND BIRCH WITH STAINLESS STEEL FASTENERS
DRIVER COMPLEMENT:
LOW FREQUENCY: APOGEE 15"(380MM) PERMANENT MAGNET CONE TYPE
DRIVER, TREATED WITH A WATERPROOFING COMPOUND PROVIDING RESISTANCE
TO MOISTURE, ENABLING LONG-TERM STABILITY OF CONE RESONANCE AND
CONE MASS PARAMETERS
MID FREQUENCY: APOGEE 2"(50.8MM) MIDRANGE COMPRESSION
DRIVER, TREATED WITH FERROFLUID® FOR GREATER POWER HANDLING
CAPABILITY, LOWER DISTORTION AND CONTROL OF SHORT-TERM IMPEDANCE
RISE
HIGH FREQUENCY: APOGEE 1"(25MM) COMPRESSION DRIVER TWEETER,
TREATED WITH FERROFLUID
INPUT CONNECTORS:
NEUTRIK™ NL8MP SPEAKON™ STANDARD; CANNON ‘EP’OR GAS-TIGHT
BARRIER STRIPS OPTIONAL
HANDLES: TWELVE RECESSED HANDLES DESIGNED AS AN INTEGRAL PART OF THE
ENCLOSURE (NO MOVING PARTS)
GRILL: POWDER-COATED DIAMOND PUNCHED STEEL PROVIDED WITH ACOUSTIC
FOAM COVERING
TRIM: OPTIONAL PROTECTIVE STEEL TRIM PIECES ON TOP & BOTTOM EDGES,
POWDER-COATED FOR DURABILITY
RIGGING HARDWARE: EIGHT 12 GAUGE STEEL NUTPLATES, MOUNTED FOUR TOP AND FOUR BOTTOM,
RECESSED, NOMINALLY FLUSH. ACCEPTS 3/8"-16 THREAD (10MM
NUTPLATE OR AEROQUIP PAN FITTINGS OPTIONAL). NUTPLATES ARE BACKED
WITH 12 GAUGE STEEL INTERNAL BRACKETS

EXTRAS: OPTIONAL ACCESSORIES INCLUDE FLYBARS, 15 AND 30 DEGREE COUPLERS. THIS IS AT ADDITIONAL COST TO BE NEGOTIATED.

MODIFICATIONS: NO MOD'S ON THESE PAIR OF UNITS.

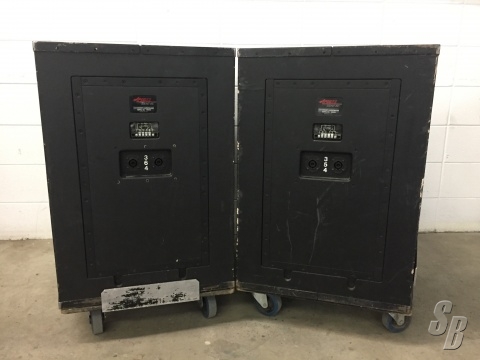

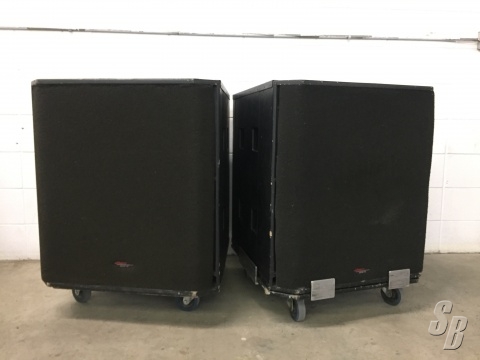

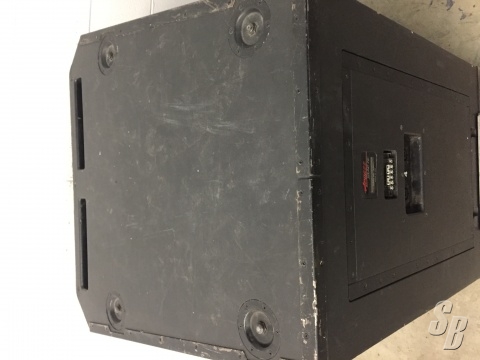

HISTORY: THESE APOGEE C3'S ARE FROM OUR RENTAL INVENTORY, AND IN GREAT WORKING CONDITION. SOME SCRAPES AND DINGS FROM USE, BUT IN OVERALL EXCELLENT CONDITION.

COMMENTS: ALL UNITS TESTED AND ARE WITHIN MANUFACTURER SPECIFICATIONS.

THIS UNIT WAS TOURED
