FULL APOGEE TURN KEY PA W/ YAMAHA FOH DESK & MONITOR DESK
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on March 23, 2009 - Viewed 253 times

FULL APOGEE TURN KEY PA W/ YAMAHA FOH DESK & MONITOR DESK
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]

APOGEE, YAMAHA VARIOUS (YOM: ?) (S#: TBD) GOOD (7-8)

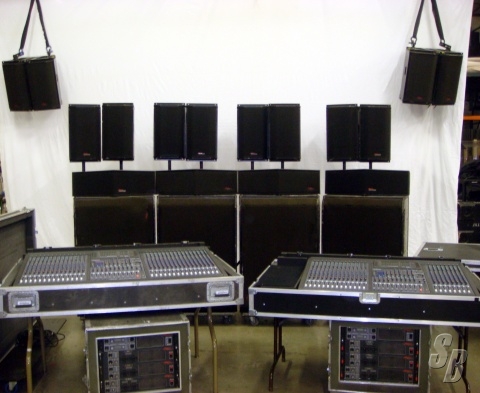

FEATURES: THIS IS A FULL TURN KEY PA SYSTEM THAT WOULD BE GREAT IN ANY CLUB OR A GREAT ADDITION TO ANY PRODUCTION COMPANY. WE HAVE USED THIS SYSTEM MAINLY FOR CORPORATE EVENTS, BUT USING ONLY HALF THE SYSTEM HAS ALSO HANDLED CONCERTS QUITE WELL. THE PACKAGE CONATINS:

SPEAKERS:
8X APOGEE AE-5 (LOUDSPEAKER)

-90º X 45º
-53HZ TO 17KHZ
-125DB CONT / 131DB PEAK
-LF 300W CONT / 1200W PEAK
-HF 150W CONT / 600W PEAK

4X APOGEE AE-5NC (NARROW CABINETS)

-60º CONICAL
-53HZ TO 17KHZ
-125DB CONT / 131DB PEAK
-LF 300W CONT / 1200W PEAK
-HF 150W CONT / 600W PEAK

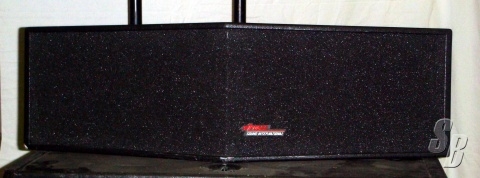

4X APOGEE AE-2S2 (FRONT FILLS)

-165º X 45º
-63HZ TO 19KHZ
-114DB CONT / 120DB PEAK
-120W CONT / 480W PEAK

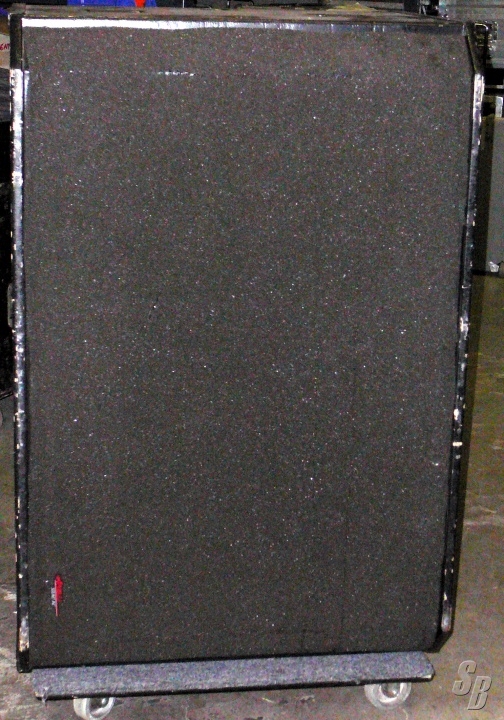

4X APOGEE AE-12S2 (DUAL 18" SUBWOOFERS)

-OMNI-DIRECTIONAL
-30HZ TO 105HZ
-128DB CONT / 134DB PEAK
-1200W CONT / 4800W PEAK

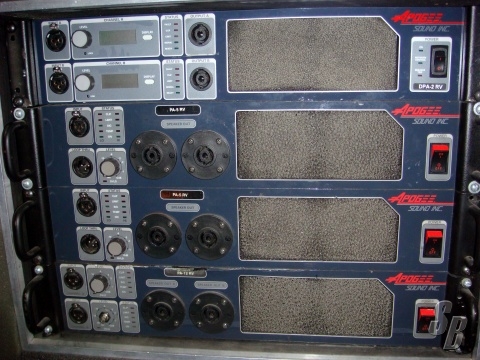

AMPS:
4X APOGEE PA-5 (RUNS ALL AE-5 CABINETS)
2X APOGEE PA-12 (RUNS ALL AE-12S2 CABINETS)
2X APOGEE DPA-2 (DIGITAL PORCESSING AMP RUNS ALL AE-2S2 CABINETS)

CONSOLES:

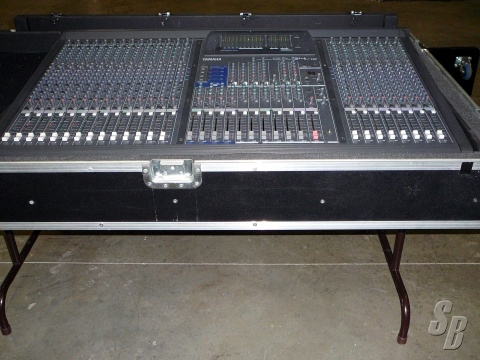

YAMAHA GA 32/12 DESK
32CH INPUT

-28 MONOAURAL CHANNELS

-MIC / LINE INPUT
-INSERT I/O JACK
-4 BAND EQ
-HPF
-26DB PAD
-ON/OFF PHANTOM POWER PER 4 CHANNELS
-MIX BUSES 1-10
-SWITCHABLE PFL

-2 STEREO CHANNELS

-4 BAND EQ
-HPF
-26DB PAD
-MIX BUSES 1-10
-SWITCHABLE PFL

12CH OUTPUT

-ST OUT
-10 MIX BUSES
-WITH EQS
-2 MATRIX OUTS

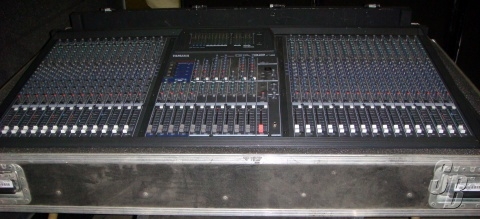

YAMAHA GA 24/12 DESK (GREAT FOR MONITOR DESK)
28CH INPUT

-20 MONOAURAL CHANNELS

-MIC / LINE INPUT
-INSERT I/O JACK
-4 BAND EQ
-HPF
-26DB PAD
-ON/OFF PHANTOM POWER PER 4 CHANNELS
-MIX BUSES 1-10
-SWITCHABLE PFL -2 STEREO CHANNELS

-4 BAND EQ
-HPF
-26DB PAD
-MIX BUSES 1-10
-SWITCHABLE PFL

12CH OUTPUT

-ST OUT
-10 MIX BUSES

-WITH EQS

-2 MATRIX OUTS

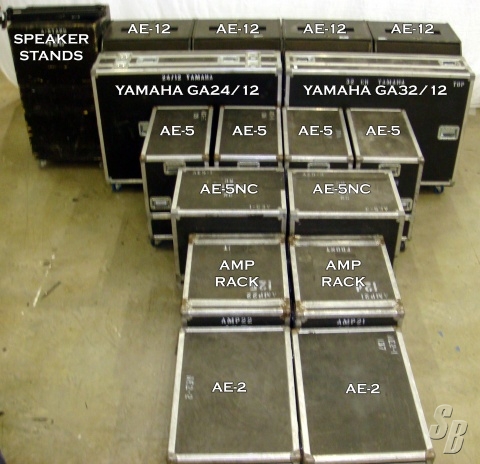

EXTRAS: -ROAD CASES FOR ALL GEAR
-CONSOLES HAVE BUILT IN TABLES

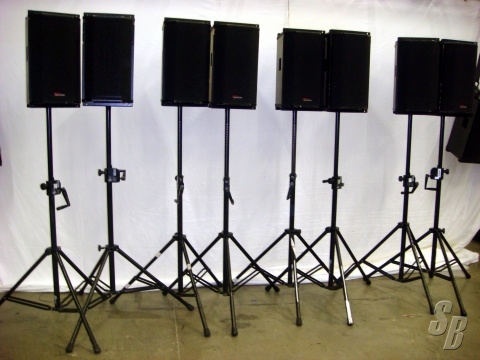

-8X SPEAKER STANDS FOR AE-5S
-RIGGING HARDWARE
-NL4 [ENOUGH TO CONNECT ALL SPEAKERS]
-APOGEE DPA-500 AMP THROWN IN AS SPARE [SOLD AS IS]


MODIFICATIONS: NONE

HISTORY: CORPORATE EVENTS
HANDFUL OF CONCERTS

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
