HEAR TECHNOLOGIES MIX BACK MIXER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on March 01, 2012 - Viewed 230 times

HEAR TECHNOLOGIES MIX BACK MIXER (YOM: ?) (S#: TBD) UNOPENED BOX - NEVER USED (10)

FEATURES: THE MIX BACK IS A FLEXIBLE AND AFFORDABLE 16 X 12 X 2 X 2 MONITOR MIXER THAT FEATURES TWO STEREO OUTPUTS AND TWELVE MONO OUTPUTS. THERE ARE SIXTEEN HIGH QUALITY
MIC/LINE INPUTS WITH PASSIVE SPLIT. IT ALSO FEATURES TWO HEARBUS OUTPUTS AND TWO ADAT OPTICAL OUTPUTS. A PERFECT COMPANION TO OUR HEAR BACK PERSONAL MONITOR SYSTEM. A TALKBACK MIC PREAMP PERMITS TALKING TO ANY MONO OUTPUT, MASTER OUTPUTS AND THE INTERCOM OUTPUT.

INCLUDED IS A UV LED GOOSENECK LAMP THAT MAKES THE KNOB POINTERS AND SILKSCREEN ON THE FRONT OF MIX BACK GLOW-IN-THE-DARK!

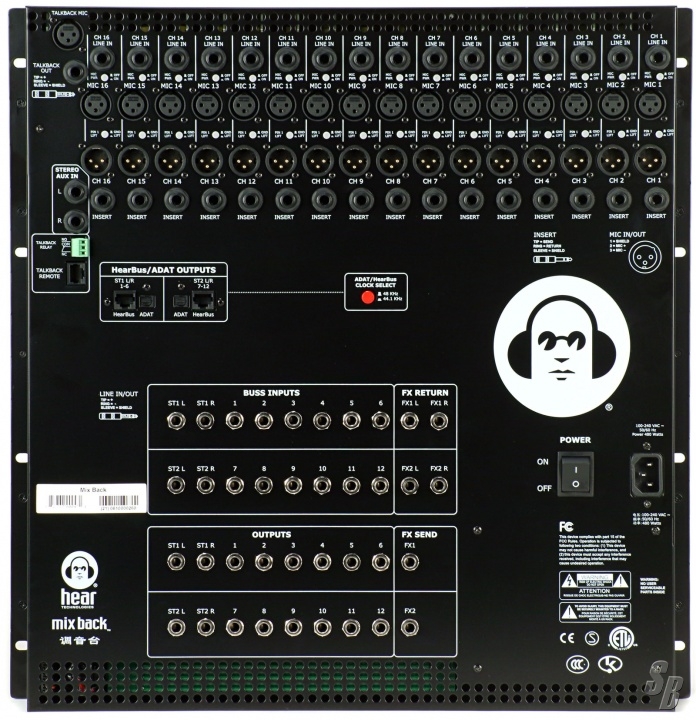

OUTPUTS INPUTS
ST1 L/R
ST2 L/R
MONO 1-12
FX1 SEND
FX2 SEND
TALKBACK OUTPUT
TALKBACK RELAY
ADAT - 16 CHANNELS
HEARBUS - 16 CHANNELS • ST1 L/R
ST2 L/R
MONO 1-12
FX1 L/R
FX2 L/R
STEREO AUX INPUTS
TALKBACK MIC
TALKBACK REMOTE CONTROL

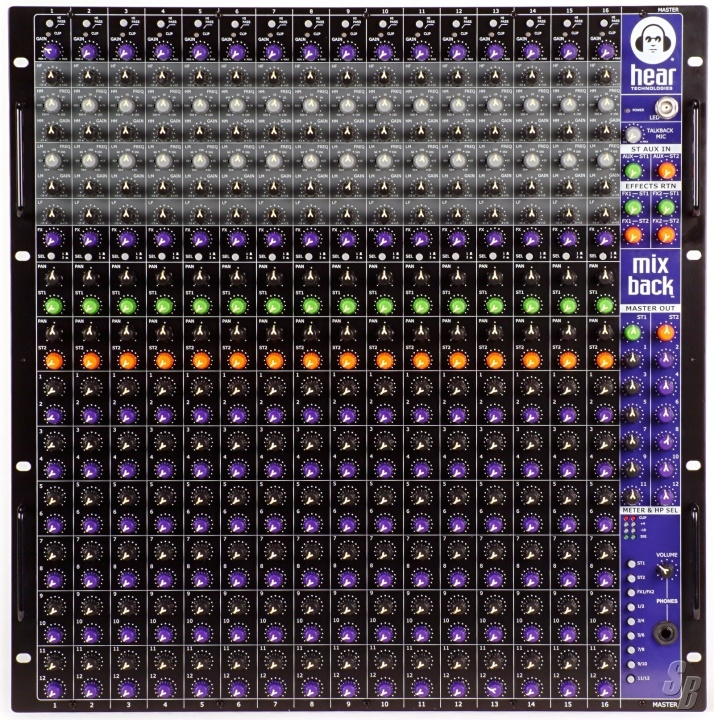

INPUT CHANNEL FEATURES:

16 QUALITY MIC/LINE INPUTS WITH PASSIVE XLR SPLIT
PIN 1 LIFT AND MIC PHANTOM POWER SWITCHES
CHANNEL INSERTS
SIGNAL/CLIP LED INDICATOR
100 HZ HIGH-PASS FILTER
GAIN CONTROL
4 BAND EQ WITH SEPARATE CONTROLS FOR SWEEP AND CUT/BOOST ON MID BANDS
TWO STEREO LEVEL AND PAN CONTROLS (ST1 AND ST2)
TWELVE MONO LEVEL CONTROLS (1-12)
SWITCH SELECTABLE EFFECTS 1-2 SENDS
MASTER FEATURES:

2 STEREO AND 12 MONO TRS OUTPUTS
SWITCH SELECTABLE METER/HEADPHONE MONITORING
2 STEREO TRS BALANCED EFFECT RETURNS
SWITCH ASSIGNABLE FX1/FX2 RETURNS TO THE 12 MONO MASTERS
STEREO AUX RETURN WITH LEVEL CONTROLS TO BOTH STEREO BUSSES – GREAT FOR FOH MIX OR THE STUDIO “TWO MIX”
BUSS INPUTS PERMIT STACKING OF MULTIPLE MIXERS
TALK BACK MIC PREAMP ASSIGNABLE TO STEREO MASTERS 1 AND 2, MONO OUTPUTS 1-12, AND THE BALANCED INTERCOM/SLATE OUTPUT
RELAY CONTACT WHEN THE TALK BACK INTERCOM SWITCH IS PRESSED
16 BUTTON TALKBACK REMOTE CONNECTS USING STANDARD CAT5E CABLE
16 CHANNELS OF ADAT AND HEARBUS OUTPUT
OTHER FEATURES:

UNIVERSAL INTERNATIONALLY APPROVED INTERNAL POWER SUPPLY
11 RU CHASSIS
ALL ANALOG INPUTS AND OUTPUTS ARE BALANCED

FOR MORE DETAILED INFORMATION PLEASE CHECK OUT THE HEAR TECHNOLOGIES WEB SITE: HTTP://WWW.HEARTECHNOLOGIES.COM/MB/MIXBACK.HTM

EXTRAS: INCLUDED IS A UV LED GOOSNECK LAMP THAT MAKES THE KNOB POINTERS AND SILK SCREEN ON THE MIXBACK GLOW IN THE DARK.

MODIFICATIONS: THERE ARE NO MODIFICATIONS TO THIS UNIT. IT IS BRAND NEW FROM THE FACTORY.

HISTORY: THIS UNIT IS BRAND NEW IN A BOX OPENED ONLY FOR INSPECTION. IT HAS NEVER BEEN USED AND IT HAS BEEN IN MY POSSESION FOR LESS THAN ONE MONTH.

COMMENTS: THIS IS A BRAND NEW UNIT.

THIS UNIT WAS NEVER TOURED
