MEYER SOUND MSL-4P AND 650P (1999) (S#: 99270910/99270885/99270040/99354143/99270042/99354148) SUPERB (8-9)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 12, 2006 - Viewed 225 times

DESCRIPTION: MEYER SOUND MSL-4P AND 650P (1999) (S#: 99270910/99270885/99270040/99354143/99270042/99354148) SUPERB (8-9)

FEATURES: IN THIS SET THERE ARE : 4 X MSL-4P, 2 650P, 6 X MTG-4 TOP GRID AND 2 X MTGS SPREADERBAR.

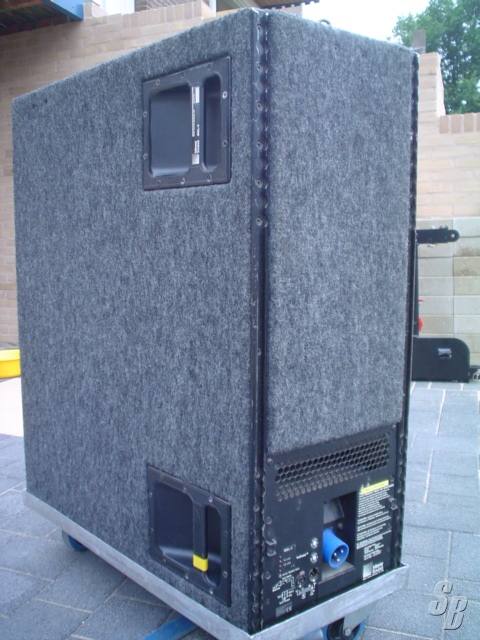

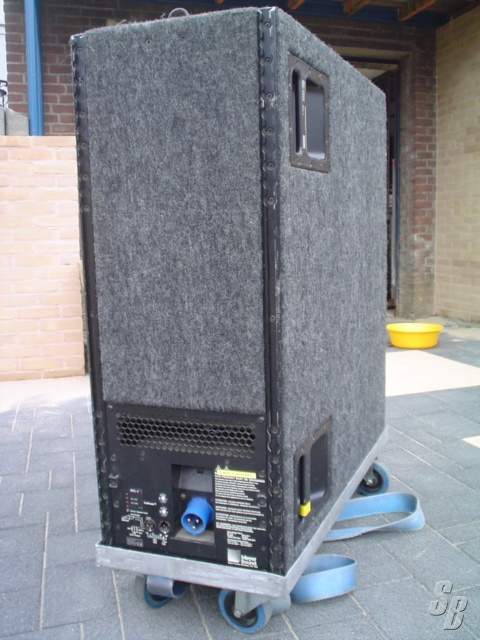

MSL-4P IS CARPETED AND COMES WITH L-TRACK

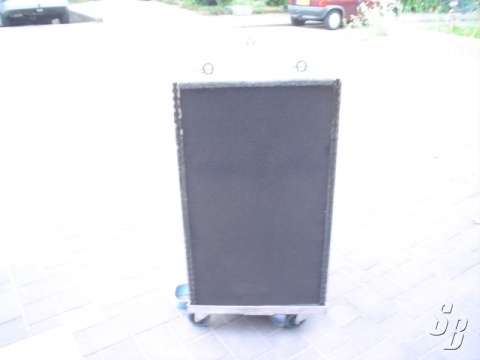

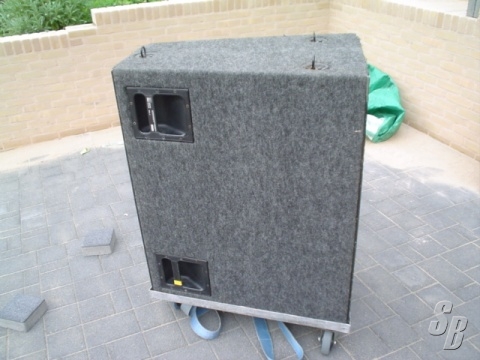

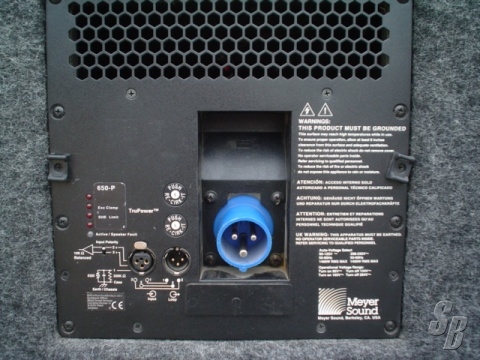

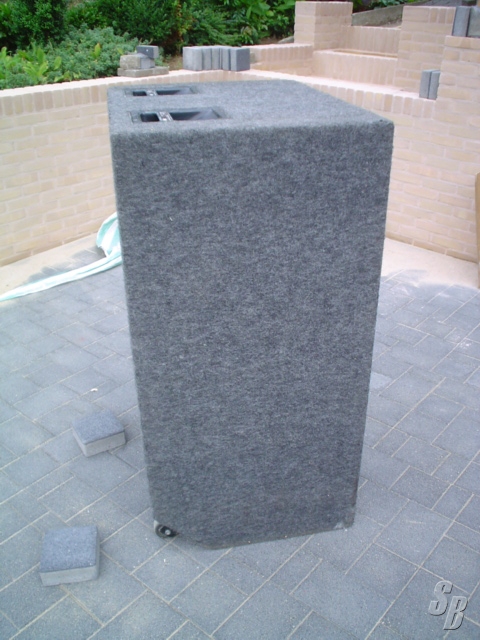

650P IS CARPETED.

MTG-4 TOP GRID, MSL-4/DS-4P

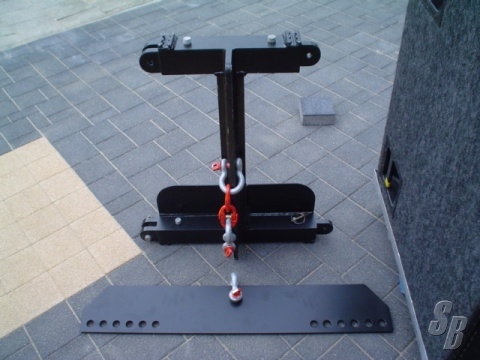

THE MTG-4 IS USED FOR ARRAYING TYPE 4 (MSL-4 AND DS-4P) LOUDSPEAKERS FITTED WITH L-TRACK OR WITH THE RFK-1 RETROFIT FRAME KIT. THE FRAME’S RETRACTABLE ARMS ARE ADJUSTABLE, EVEN WHILE THE SYSTEM IS UNDER LOAD. LOUDSPEAKERS CAN BE ARRAYED AT HORIZONTAL ANGLES OF 15, 18.75, 22.5, 26.25 AND 30-DEGREE SPLAY ANGLES.

MTGSB-4B TOP GRID SPREADER BAR, MSL-4/DS-4P

USED TO SUSPEND TWO MTG-4 TOP GRIDS FROM A SINGLE MOTOR POINT. INCLUDES ALL NECESSARY SHACKLES AND CONNECTING LINKS. SIX PICK UP POINTS ARE PROVIDED AT EACH END OF THE BAR TO ALLOW THE ADJUSTMENT OF SPREAD BETWEEN VERTICAL COLUMNS. THIS PART REPLACES THE MTGSB-4 SPREADER BAR
-------------------------------------------------
THE MEYER SOUND MSL-4 IS A HIGH-Q, ARRAYABLE LOUDSPEAKER DESIGNED FOR A WIDE VARIETY OF MEDIUM- TO LONG-THROW APPLICATIONS. THE MSL-4’S TIGHTLY DEFINED COVERAGE PATTERN ALLOWS SEAMLESS INTEGRATION INTO ARRAY CLUSTERS, WHICH MAY BE TIGHT-PACKED FOR LONG THROW OR SPLAYED FOR BROADER COVERAGE.

THE MSL-4’S BUILT-IN POWER AMPLIFIER AND CONTROL ELECTRONICS ARE CONTAINED IN AN EASILY ACCESSIBLE, FIELD-REPLACEABLE MODULE. THE AMPLIFIER, A CLASS AB/H DESIGN WITH COMPLEMENTARY MOSFET OUTPUT STAGES, PRODUCES PEAK OUTPUT OF 1240 WATTS (620 WATTS PER CHANNEL). THE INTEGRATED CONTROL ELECTRONICS INCLUDES TRUPOWER LIMITING FOR DRIVER PROTECTION, AS WELL AS ACTIVE PHASE CORRECTION CIRCUITS TO MAINTAIN EXCEPTIONALLY COHERENT PHASE RESPONSE. SUPERIOR COMMON-MODE REJECTION FROM LASER-TRIMMED DIFFERENTIAL INPUTS ALLOWS VERY LONG SIGNAL RUNS. AN INTELLIGENT AC POWER SUPPLY AFFORDS AUTOMATIC VOLTAGE SELECTION, EMI FILTERING, SOFT CURRENT TURN-ON AND SURGE SUPPRESSION TO ENSURE SYSTEM STABILITY AND LONG-TERM RELIABILITY.

ALL COMPONENTS ARE HOUSED IN A RUGGED, MULTI-PLY HARDWOOD CABINET WITH A BLACK TEXTURED FINISH. THE MSL-4 COMES STANDARD WITH SIX AIRCRAFT PAN FITTINGS (RING AND STUD), WITH QUICKFLY RIGGING OPTIONAL.

THE MSL-4 IS COMPATIBLE WITH MEYER SOUND’S RMS REMOTE MONITORING SYSTEM.

SPECIFICATIONS
ACOUSTICAL (EACH LOUDSPEAKER)
OPERATING FREQUENCY RANGE (1) ...
±4 DB FROM 65 HZ TO 18 KHZ ...
-6 DB AT 60 HZ AND 20 KHZ

PHASE RESPONSE (1) ... ±30° FROM 450 HZ TO 10 KHZ
MAXIMUM SPL (1) ... 140 DB @ 1 METER
DYNAMIC RANGE ... > 110 DB
COVERAGE ... 40° HORIZONTAL X 35° VERTICAL
CROSSOVER ... 800 HZ
TRANSDUCERS LOW FREQUENCY ... 12" CONE DRIVER
HIGH FREQUENCY ... 2" THROAT, 4" DIAPHRAGM COMPRESSION DRIVER

AUDIO INPUT
TYPE ... 10 K OHM IMPEDANCE, ELECTRONICALLY BALANCED
CONNECTOR ... FEMALE XLR INPUT AND MALE XLR LOOP OUTPUT OR VEAM
NOMINAL INPUT LEVEL ... +4 DBU
AMPLIFIERS TYPE ...
COMPLEMENTARY POWER MOSFET OUTPUT STAGES (AUDIO CLASS AB/H)
BURST CAPABILITY (2) ... 1240 WATTS (620 WATTS/CHANNEL)
THD, IM, TIM ... < .02 %

AC Power
Connector ... 250V NEMA L6-20 (Twistlock) inlet, IEC 309 male inlet or VEAM(3)
Automatic Voltage Selection ... 85 - 134 VAC; 165 - 264 VAC; 50/60 Hz (4)
Operational Voltage Range ... Turn on: 85 VAC; Turn off: 134 VAC; 50/60 Hz
Turn on: 165 VAC; Turn off: 264 VAC; 50/60 Hz
Max.Continuous RMS Current (> 10 SEC) ... AT 115 V: 8 A RMS
AT 230 V: 4 A RMS
AT 100 V: 10 A RMS

BURST RMS CURRENT (< 1 SEC) ... AT 115 V: 15 A RMS
AT 230 V: 8 A RMS
AT 100 V: 18 A RMS

MAX PEAK CURRENT DURING BURST ... AT 115 V: 22 A PK
AT 230 V: 11 A PK
AT 100 V: 25 A PK

INRUSH CURRENT ... < 12 A at 115 V

Physical
Dimensions ... 21.26" w x 36.00" h x 30.00" d
(540 mm x 914 mm x 762 mm)

Weight ... 180 lbs (81.67 kg);
------------------------------------------------

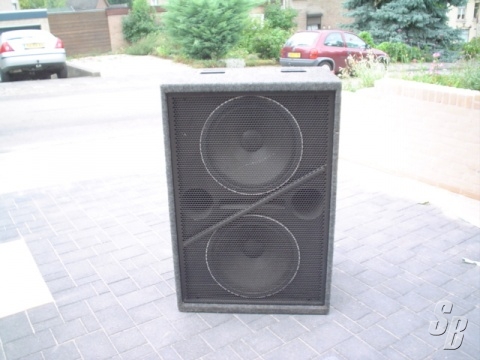

The Meyer Sound 650-P is a high-powered subwoofer for sound reinforcement applications. The 650-P provides extended low-frequency power bandwidth, handling high continuous operating levels and extreme transient information with minimal distortion and response extending to 28 Hz.

The 650-P houses two Meyer Sound long-excursion 18-inch drivers in a tuned, vented cabinet. An integral two-channel class AB/H amplifier with complementary power MOSFET output stages supplies total peak output of 1240 watts (620 watts/channel). TruPower limiting technology ensures maximum driver protection, minimizing power compression and permitting high constant output. An Intelligent AC power supply affords automatic voltage selection, EMI filtering, soft current turn-on and surge suppression. Phase-corrected, active signal processing circuits maintain excellent performance and reliability, and a laser-trimmed differential input with high common-mode rejection facilitates long line-level signal runs using shielded, twisted-pair cable.

The 650-P cabinet is constructed of multi-ply hardwood and coated with a textured, weather-resistant black finish. The 650-P is compatible with Meyer Sound’s RMS remote monitoring system, which provides comprehensive monitoring of system performance parameters over a Windows-based network.
Specifications
Acoustical (each loudspeaker)
Operating Frequency Range (1) ...
28 Hz - 100 Hz ±4 dB

Phase Response (1) ... ±30° 45 Hz - 145 Hz

Maximum SPL (1) ... 136 dB peak @ 1 meter

Dynamic Range ... > 110 DB


COVERAGE
... 360° HORIZONTAL X 180° VERTICAL (1/2 SPACE)


TRANSDUCERS
LOW FREQUENCY ...
TWO 18" CONE DRIVERS


AUDIO INPUT
TYPE ...
10 KΩ IMPEDANCE, ELECTRONICALLY BALANCED

CONNECTOR ... FEMALE XLR INPUT AND MALE XLR OUTPUT OR VEAM

NOMINAL INPUT LEVEL ... +4 DBU


AMPLIFIERS
TYPE ...
COMPLEMENTARY POWER MOSFET OUTPUT STAGES (AUDIO CLASS AB/H)

BURST CAPABILITY (2) ... 1240 WATTS (620 WATTS/CHANNEL)

THD, IM, TIM ... < .02 %


AC Power
Connector ...
250 V NEMA L6-20 (Twistlock) inlet, IEC 309 male inlet or VEAM (3)

Automatic Voltage Selection ... 85 - 134 VAC; 165 - 264 VAC; 50/60 Hz (4)

Operational Voltage Range ... Turn on: 85 V AC; Turn off: 134 V AC; 50/60 Hz

... Turn on: 165 V AC; Turn off: 264 V AC; 50/60 Hz

Max.Continuous RMS Current (> 10 SEC) ... AT 115 V: 8 A RMS
AT 230 V: 4 A RMS
AT 100 V: 10 A RMS

BURST RMS CURRENT (< 1 SEC) ... AT 115 V: 15 A RMS
AT 230 V: 8 A RMS
AT 100 V: 18 A RMS

MAX PEAK CURRENT DURING BURST ... AT 115 V: 22 A PK
AT 230 V: 11 A PK
AT 100 V: 25 A PK

INRUSH CURRENT ... < 12 A AT 115 V


PHYSICAL
DIMENSIONS ... 30.00" W X 45.00" H X 22.50" D (762 MM X 1143 MM X 572 MM)

WEIGHT ... 221 LBS (100.24 KG)











EXTRAS: THERE ARE TWO CASES FOR THE MTG-4 TOP GRID.

MODIFICATIONS: NO MODIFICATIONS

HISTORY: SYSTEM IS ONLY USED IN THEATERS.

COMMENTS: SYSTEM IS IN PERFECT WORKING ORDER.

THIS UNIT WAS NEVER TOURED
