EAW 260I STAGE MONITORS
[PRICED PER UNIT - 8 AVAILABLE AT TIME OF LISTING]
Listing last update on April 07, 2016 - Viewed 280 times

EAW SM 260I (YOM: 2001) (S#: TDB) AVERAGE FOR AGE (6-7)

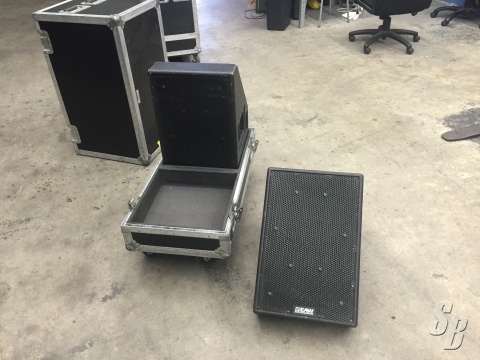

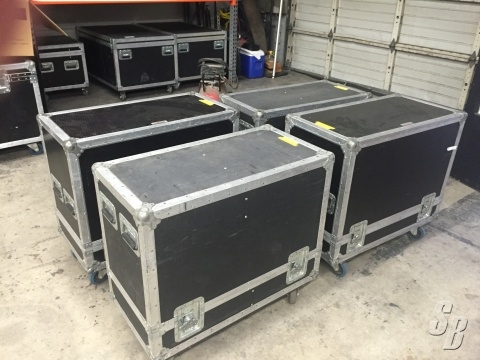

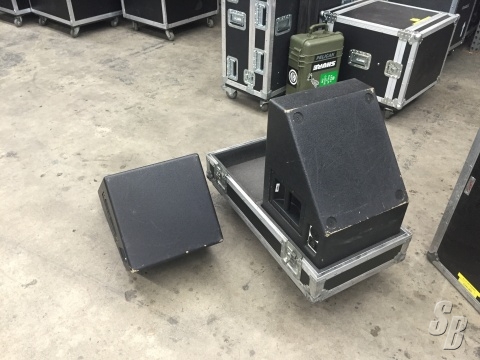

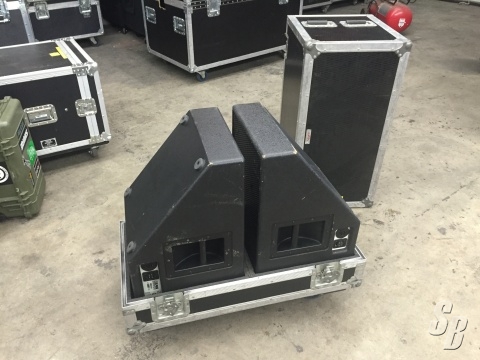

FEATURES: SOLD IN PAIRS WITH ROAD CASES

NOTE: PRICE INCLUDES ROAD CASE

MODIFICATIONS: ALL ARE BI AMPED ONLY IN GOOD CONDITION ALL IN WORKING ORDER BOS DOES HAVE NICK'S AND STRACHES

HISTORY: USED ON FAIRS FESTIVALS AND CORPORATE EVENTS NEVER TOURED

COMMENTS: BI-AMP ONLY

THIS UNIT WAS NEVER TOURED

SPECIFICATIONS
* SM260IV, SM260IV/2 PP, OCTOBER 20 01, PRINTED IN USA
A 2-WAY FULL RANGE SYSTEM IN A VENTED STAGE MONITOR ENCLO-
SURE. INCLUDES A 12-IN WOOFER AND A 2-IN EXIT COMPRESSION
DRIVER ON A 60° X 45° CONSTANT DIRECTIVITY HORN. POWERING
MODE IS SWITCHABLE: PASSIVE (LF/HF CROSSOVER) OR BI-AMPLIFIED.
THE SM260IV IS ENGINEERED FOR MAXIMUM OUTPUT AND CON-
TROLLED COVERAGE. SWITCH ALLOWS PASIVE OR BIAMP OPERATION.
BOTH TYPES OF INDUSTRY STANDARD CONNECTORS ARE SUPPORTED FOR
FLEXIBLE “DAISY CHAINING” OF MULTIPLE MONITORS. SIX YEAR
WARRANTY AT TIME OF ORIGINAL PURCHASE.

APPLICATIONS INCLUDE:
* CONCERT TOURS, CORPORATE EVENTS, LARGE THEATERS, LARGE HOUSES OF WORSHIP, LIVE MUSIC CLUBS.
- FREQUENCY RESPONSE (HZ) ±3 DB 70 HZ TO 18 KHZ -10 DB 58 HZ
AXIAL SENSITIVITY (DB SPL, 1 WATT @ 1M)
FULL RANGE 98
BI-AMPED LF 98
BI-AMPED HF 106
IMPEDANCE (OHMS)
FULL RANGE 8
BI-AMPED LF 8
BI-AMPED HF 10
POWER HANDLING (WATTS, CONTINUOUS)
FULL RANGE 500
BI-AMPED LF 500
BI-AMPED HF 200
RECOMMENDED HIGH-PASS FREQUENCY
24 DB/OCTAVE 50 HZ
CALCULATED MAXIMUM OUTPUT (DB SPL @ 1M)
FULL RANGE PEAK 131.0
BI-AMPED LF PEAK 131.0
BI-AMPED HF PEAK 135.0
FULL RANGE LONG TERM 125.0
BI-AMPED LF LONG TERM 125.0
BI-AMPED HF LONG TERM 129.0
NOMINAL COVERAGE ANGLE, -6 DB POINTS (DEGREES)
HORIZONTAL 60
VERTICAL 45
LF SUBSYSTEM 1X 12-IN, VENTED
HF SUBSYSTEM 2-IN EXIT COMPRESSION DRIVER ON
HORN
CONFIGURATION 2-WAY, FULL RANGE FLOOR MONITOR
POWERING SWITCHABLE: FULL RANGE (PASSIVE
LF/HF CROSSOVER) OR BI-AMPLIFIED
CONTROLS (SWITCHES, KNOBS) POWERING MODE SWITCH
CABINET TYPE (SHAPE) IRREGULAR PENTAGON
(FLOOR MONITOR)
ENCLOSURE MATERIALS BALTIC BIRCH PLYWOOD
FINISH BLACK CATALYZED POLYURETHANE
CONNECTORS 1 EACH MALE AND FEMALE AP4
2X NEUTRIK NL4 SPEAKON
