JBL FESTIVAL/LARGE INDOOR SPEAKER SYSTEM
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on November 11, 2008 - Viewed 259 times

DESCRIPTION: JBL JBL 2445, 2205, 2380 (?) (S#: TBD) AVERAGE FOR AGE (6-7)

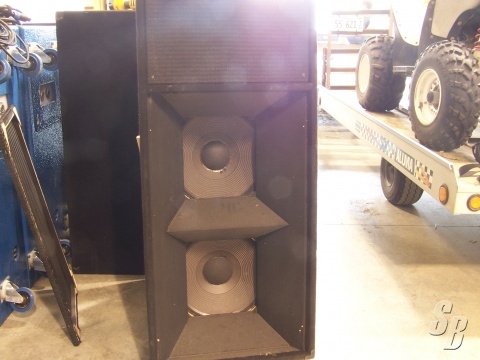

FEATURES: THESE TRAPAZOIDAL BOXES ARE ACTIVE TWO-WAY BOXES DESIGNED FOR LONG-THROW APPLICATIONS, IDEAL FOR OUTDOOR FESTIVAL SITUATIONS.
EACH BOX IS LOADED WITH:
JBL 2445J 100W CONTINUOUS @ 500 HZ
150W CONTINUOUS 1K AND HIGHER
HTTP://WWW.JBLPRO.COM/PUB/COMPONENTS/2445J.PDF

JBL 2380 HORN 90H X 40V
HTTP://WWW.JBLPRO.COM/PAGES/COMPONENTS/2380SER.HTM

HTTP://WWW.JBLPRO.COM/PAGES/PUB/COMPONENTS/2380A.PDF

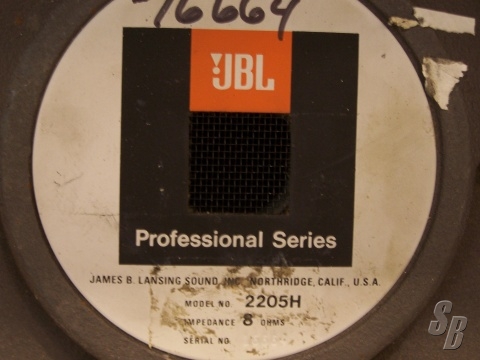

(2)JBL 2205H 300W CONTINUOUS 97DB 1W/1M

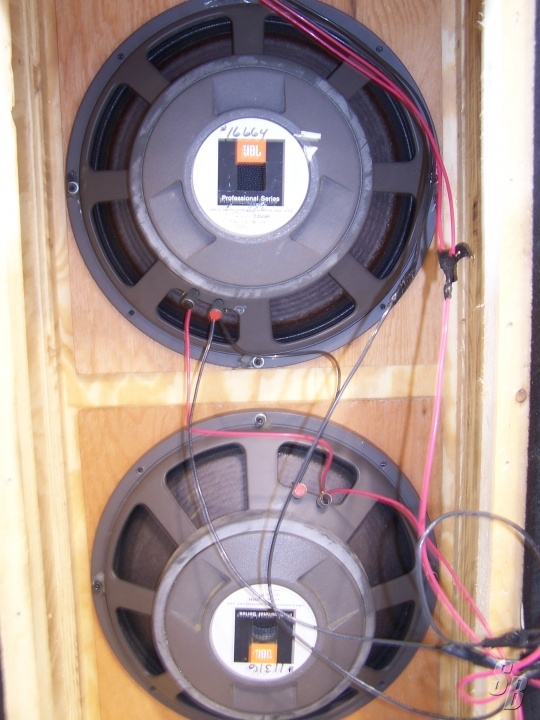

THEY METERED AT 3.2 OHMS AT THE NL8, LEADING ME TO BELIEVE THEY ARE WIRED IN PARALLEL.
HTTP://WWW.JBLPRO.COM/PUB/OBSOLETE/2205HJ.PDF

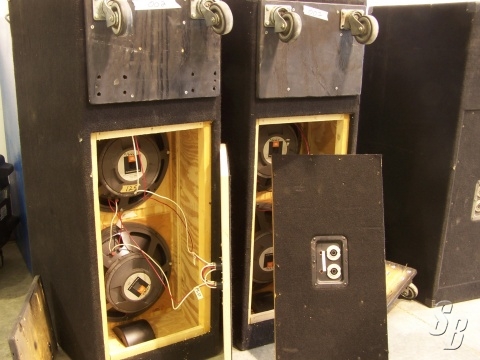

EXTRAS: EACH BOX IS WIRED WITH (2) NL8S IN PARALLEL FOR PASS THROUGH TO OTHER TOP BOXES OR TO/FROM BASS/SUB CABINETS [ALSO FOR SALE UNDER EV SPEAKERS].

PINS 1 HIGH
PINS 2 MID
PINS 3/4 PASS THROUGH

THREE OF THE BOXES HAVE CASTER PLATES AND THE OTHER THREE STORE/TRANSPORT FACE TO FACE WITH THE THREE.

MODIFICATIONS: NO MODIFICATIONS.

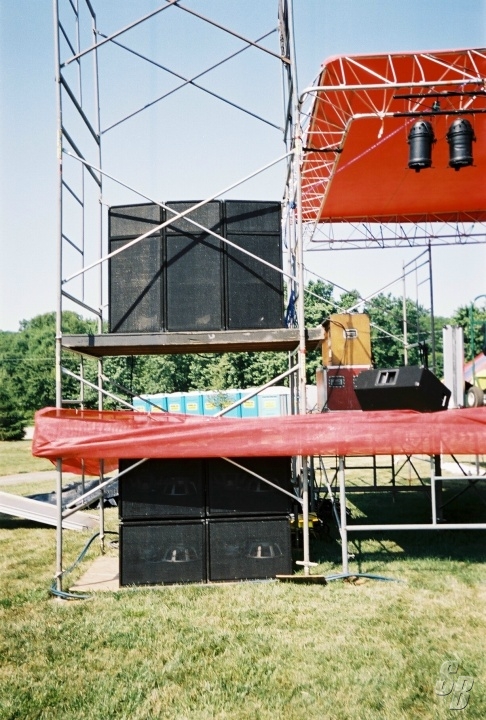

HISTORY: BUILT 5 YEARS AGO, THESE BOXES REALLY SHINE IN THE OUTDOOR FESTIVAL ARENA OR IN ANY LARGE INDOOR FACILITY. WE COVERED UPWARDS TO 3,000+ PEOPLE OUTDOORS AND APPROX. 2,500 PEOPLE INDOORS COMFORTABLY. USED ON MANY "A" AND "B" LEVEL, NATIONAL-TOURING ARTISTS, WE NEVER HAD ANY COMPLAINTS ABOUT OUR BOXES.

THESE BOXES PRODUCE GOOD, CLEAN AUDIO EASILY AT 120+ YARDS.

THEY WERE POWERED WITH PROFESSIONAL CREST 7001 AMPS AND DRIVEN FROM A SOUNDCRAFT/DBX/KT CHAIN AT FOH. NO ABUSES.

BECAUSE THESE ARE DESIGNED FOR LONG-THROW PURPOSES, WE ALSO HAVE SHORT-THROW/FRONT LOADED BOXES FOR SALES AS WELL THROUGH SOUNDBROKER THAT ARE NOT LOADED. (8 TOTAL)

ALSO LISTED WILL BE THE BASS BOXES THAT WE USED WHICH ARE EV MTL2 COPIES, LOADED WITH TWO EVX150AS, GIVING YOU 2,000W OF BASS PER BOX! (12 AVAILABLE, 4 MORE UNLOADED)

COMMENTS: ALL DRIVERS ARE IN GREAT WORKING ORDER.

THIS UNIT WAS NEVER TOURED
