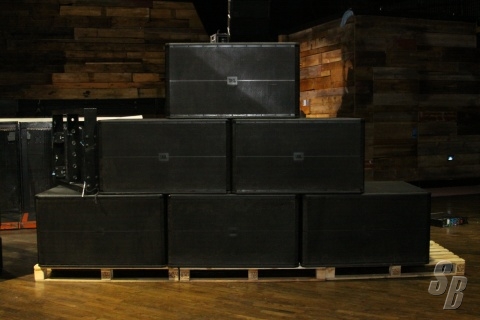

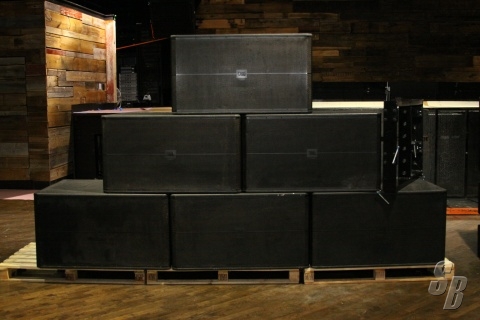

JBL SRX728 SUBS
[PRICED PER UNIT - 10 AVAILABLE AT TIME OF LISTING]
Listing last update on July 13, 2016 - Viewed 384 times

JBL SRX728 (YOM: ?) (S#: TBD) GOOD (7-8)

HISTORY ON SUBWOOFERS:
THE SUBS HAVE BEEN IN USE FOR 7 YEARS IN THIS VENUE. 5 YEARS AS A LATIN NIGHT CLUB WITH VARIETY LATIN MUSIC (CUMBIA, SALSA, BACHATA, LATIN POP, LATIN ROCK). 2 YEARS UNDER NEW OWNERSHIP. THE VENUE WAS CONVERTED INTO A MUSIC HALL. WE FOUND SUBS IN RELATIVELY GOOD CONDITION. FOR TWO YEARS WE SERVICED THEM TO GOOD WORKING CONDITION, SWAPPED DRIVERS AS NEEDED , AND RAN THEM THROUGH NEW XTA DP548 PROCESSORS.

CURRENT STATUS: IN STORAGE AND NOT IN USE.

COMMENTS: JUST SOME DISCOLORATION ON THE FOAM OF THE GRILLS, SOME MINOR COSMETIC SCRATCHES AND BLEMISHES.

EXTRAS: NO SPARE PARTS

MODIFICATIONS: NO MODIFICATIONS

2 YEARS WITH A VARIETY OF STYLES OF MUSIC ( INDIE ROCK, SOUL, METAL, ELECTRONIC, JAM)
IN THOSE 2 YEARS THE FOLLOWING ARTIST PERFORMED ON THE PA:
GEORGE CLINTON, PRIMUS, ARIANA GRANDE BUTERA , JASON ISBELL, SKRILLEX, THE USED, TAKING BACK SUNDAY, YO LA TENGO, PAUL OAKENFOLD, J.COLE, MATISYAHU, GORAN BREGOVIC, DISCO BISCUITS, LA LEY, THE CULT, SAY ANYTHING, STEVE AOKI, PRETTY LIGHTS, GOGOL BORDELLO, PASSION PIT, JIMMY CLIFF

TECHNICAL INFO FROM JBL.COM:
FREQUENCY RANGE (-10 DB): 27 HZ – 220 HZ
FREQUENCY RESPONSE (±3 DB): 33 HZ – 220 HZ
INPUT CONNECTION MODES: SWITCHABLE, +1/-1 OR +2/-2 INTERNALLY SELECTABLE, PARALLEL OR DISCRETE
RECOMMENDED CROSSOVER FREQUENCIES: 80 HZ, 24 DB / OCTAVE HPF 80 HZ, 24 DB / OCTAVE LPF POWER RATING
(CONTINUOUS1 / PROGRAM / PEAK): PARALLEL:1600 W/3200 W/6400 W
MAXIMUM SPL2: 136 DB SPL PEAK
SENSITIVITY (1W @ 1M): 98 DB SPL
LF DRIVER: 2 X JBL 2268H 457 MM (18 IN) DIFFERENTIAL DRIVE
WOOFER WITH NEODYMIUM-MAGNET AND DUAL VOICE-COILS
NOMINAL IMPEDANCE: PARALLEL: 4 OHMS
DISCRETE: 8 OHMS X 2
ACTIVE TUNINGS: DBX DRIVERACK, ALL MODELS.
SETTINGS AVAILABLE AT WWW.JBLPRO.COM
ENCLOSURE: RECTANGULAR, 18 MM, 13-PLY BIRCH PLYWOOD
FINISH: BLACK DURAFLEX FINISH
GRILLE: POWDER COATED, BLACK, 16-GAUGE PERFORATED STEEL WITH
ACOUSTICAL TRANSPARENT CHARCOAL FOAM BACKING.
REMOVABLE JBL BADGE AND PUNCHED JBL LOGO.
INPUT CONNECTORS: NEUTRIK® SPEAKON® NL-4 (X2)
DIMENSIONS (H X W X D): 602 MM X 1067 MM X 838 MM
(23.7 IN X 42 IN X 33 IN)
NET WEIGHT: 76 KG (166.5 LB)
OPTIONAL ACCESSORIES: SRX728S-CVR: PULL-OVER PADDED COVER

THIS UNIT WAS NEVER TOURED
