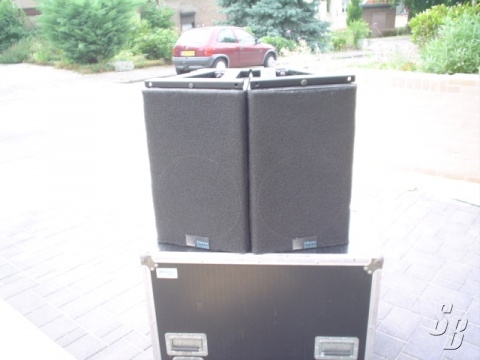

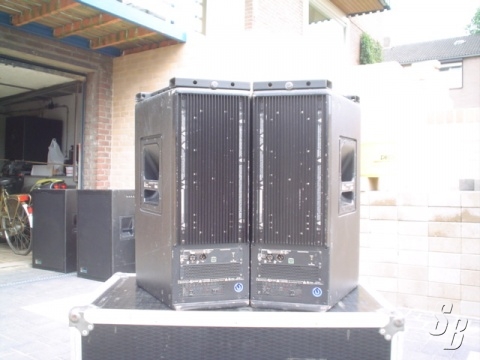

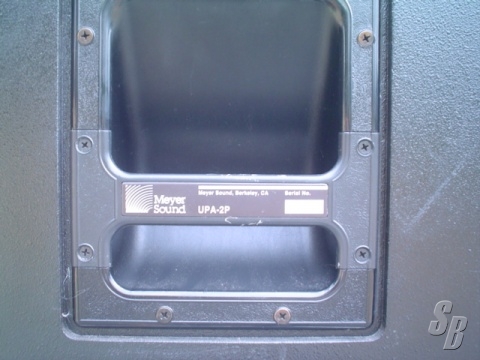

MEYER SOUND UPA-2P (1998) (S#: 98465115/98455054) SUPERB (8-9)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on August 10, 2006 - Viewed 184 times

DESCRIPTION: MEYER SOUND UPA-2P (1998) (S#: 98465115/98455054) SUPERB (8-9)

FEATURES: THE SELF-POWERED UPA-2P PROVIDES HIGH POWER OUTPUT, LOW DISTORTION AND CONSISTENT POLAR RESPONSE IN A COMPACT ENCLOSURE. OFFERING EXTRAORDINARY FIDELITY AND POWER WITH TIGHTLY CONTROLLED, SYMMETRICAL COVERAGE, THE UPA-2P IS SUITABLE FOR A WIDE VARIETY OF APPLICATIONS INCLUDING CENTER CLUSTERS FOR NIGHTCLUB OR THEATRICAL REINFORCEMENT, AND DELAYED FILL SYSTEMS. AN EXTREMELY SMOOTH AND PREDICTABLE 45-DEGREE HORIZONTAL X 45-DEGREE VERTICAL CONICAL HORN, COUPLED TO A 3-INCH DIAPHRAGM COMPRESSION DRIVER, REPRODUCES HIGH FREQUENCIES. THE RESULT OF INTENSIVE RESEARCH, THE PATENTED UPA-2P HORN’S PATTERN REMAINS CONSISTENT WITHIN CLOSE TOLERANCES IN BOTH THE HORIZONTAL AND VERTICAL PLANES, WITH MINIMAL SIDE LOBING. A ROBUST 12-INCH DRIVER IN A VENTED ENCLOSURE REPRODUCES LOW-MID FREQUENCIES. THE UPA-2P IS BIAMPLIFIED BY AN INTEGRAL TWO-CHANNEL CLASS AB/BRIDGED AMPLIFIER WITH COMPLEMENTARY POWER MOSFET OUTPUT STAGES. TOTAL PEAK POWER OUTPUT IS 700 WATTS. PHASE-CORRECTED ELECTRONICS ASSURE FLAT PHASE AND AMPLITUDE RESPONSE, RESULTING IN EXCEPTIONAL SYSTEM IMPULSE RESPONSE AND PRECISE IMAGING. THE UPA-2P ALSO INCORPORATES MEYER SOUND’S INTELLIGENT AC SYSTEM, WHICH AUTO-SELECTS THE CORRECT OPERATING VOLTAGE, SUPPRESSES HIGH VOLTAGE TRANSIENTS, FILTERS EMI AND PROVIDES SOFT-START POWER-UP. THE UPA-2P IS COMPATIBLE WITH RMS REMOTE MONITORING SYSTEM, WHICH OFFERS COMPREHENSIVE MONITORING OF SYSTEM PARAMETERS ON A WINDOWS-BASED NETWORK.

SPECS
OPERATING FREQUENCY RANGE : 60 HZ - 18 KHZ RESPONSE DEPENDS ON LOADING CONDITIONS AND ROOM ACOUSTICS
FREE FIELD : 100 HZ - 16 KHZ ± 3DB; -6 DB AT 77 HZ AND 18 KHZ
HALF-SPACE : 77 HZ - 16 KHZ ± 3DB; -6 DB AT 66 HZ AND 18 KHZ MEASURED WITH A SINGLE BOUNDARY, 1 M FROM REAR OF CABINET
PHASE RESPONSE : ± 35 DEGREE 600 HZ - 16 KHZ; + 90 DEGREE AT 250 HZ PHASE VARIATION FROM PURE DELAY
MAXIMUM SPL : 133 DB SPL MEASURED AT 1 M, WITH PINK NOISE OR MUSIC
HORIZONTAL COVERAGE : 45 DEGREE (-6 DB POINTS)
VERTICAL COVERAGE : 45 DEGREE (-6 DB POINTS)
CROSSOVER FREQUENCY : 1000 HZ
TRANSDUCERS - LOW FREQUENCY : 12 INCH CONE DRIVER
TRANSDUCERS - HIGH FREQUENCY : 3 INCH DIAPHRAGM COMPRESSION DRIVER

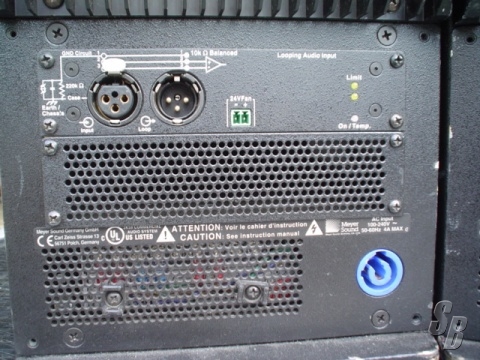

AUDIO INPUT - TYPE : DIFFERENTIAL BALANCED INPUT CIRCUIT
AUDIO INPUT - CONNECTOR : FEMALE XLR; MALE XLR LOOP
AUDIO INPUT - IMPEDANCE : 10 K OHMSDIFFERENTIAL BALANCED (BETWEEN PINS 2 AND 3)
AUDIO INPUT - RF FILTER: COMMON MODE : 425 KHZ LOW-PASS
AUDIO INPUT - RF FILTER: DIFFERENTIAL MODE : 142 KHZ LOW-PASS
AUDIO INPUT - COMMON MODE REJECTION RATIO : > 80 DB (50 HZ - 1 KHZ); TYPICALLY 90 DB
AMPLIFIER - TYPE : COMPLEMENTARY POWER MOSFET OUTPUT STAGES (CLASS AB/BRIDGED)
AMPLIFIER - BURST CAPABILITY : 350 WRMS/CHANNEL NOMINAL 8 OHMS RESISTIVE LOAD, PINK NOISE, 100V PEAK
AMPLIFIER - THD, IM, TIM : < .02 %
AC Power - Connector : PowerCon locking AC connector
Automatic Voltage Selection : 80-264 VAC continuous; 47/63 Hz Phase variation from pure delay
Idle RMS Current : 0.25Arms at 115 V, 0.13Arms at 230V, 0.3Arms at 100V
Max.Continuous RMS Current : 2.8Arms at 115 V, 1.4Arms at 230V, 3.2Arms at 100V >10 SEC
MAX BURST RMS CURRENT : 3.2ARMS AT 115 V, 1.6ARMS AT 230V, 3.7ARMS AT 100V <1 SEC
MAX PEAK CURRENT DURING BURST : 5.0APK AT 115 V, 2.5APK AT 230V, 5.8APK AT 100V
SOFT-CURRENT TURN-ON INRUSH CURRENT : <15 A AT 115V
ENCLOSURE : 5/8 INCH PLYWOOD
FINISH : BLACK TEXTURED

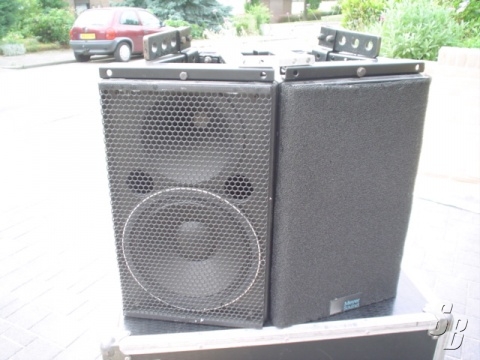

PROTECTIVE GRILL : HEX PERFORATED STEEL GRILL, CHARCOAL GREY FOAM
WIDTH : 14.5 INCH
HEIGHT : 22.4 INCH
DEPTH : 14.5 INCH
WEIGHT : 77 LBS. 35 KG


EXTRAS: PRICED EACH, SOLD ONLY AS PAIR.

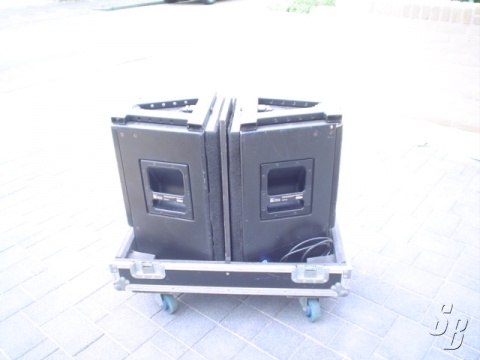

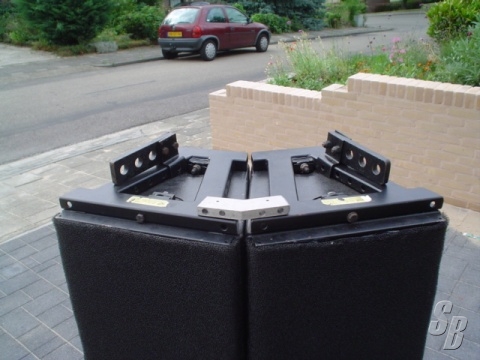

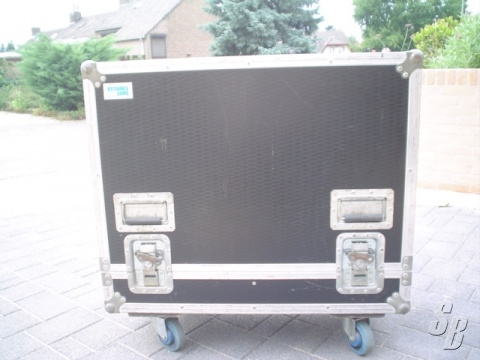

SYSTEMS ARE CASED AS PAIR AND COME WITH ATM-FLYBUMPERS AND POWER CABLE.

MODIFICATIONS: NO MODIFICATIONS

HISTORY: SYSTEMS ARE ONLY USED IN THEATERS.

COMMENTS: SYSTEMS ARE IN PERFECT WORKING ORDER.

THIS UNIT WAS NEVER TOURED
