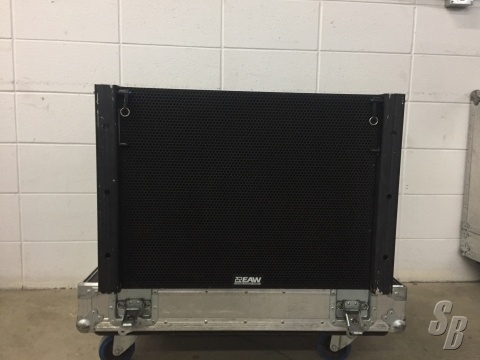

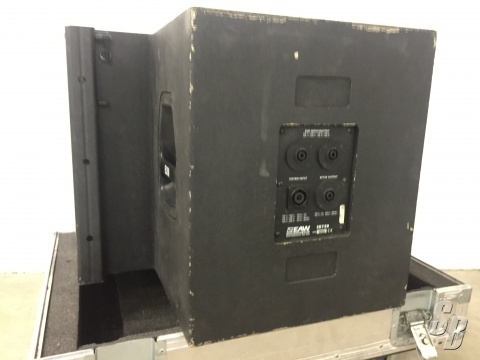

EAW SB730 COMPANION SUB
[PRICED PER UNIT - 8 AVAILABLE AT TIME OF LISTING]
Listing last update on November 11, 2016 - Viewed 293 times

EAW SB730 (YOM: 2006) (S#: TBD) GOOD (7-8)

FEATURES: CONFIGURATION
SUBSYSTEM
TRANSDUCER LOADING
SUB 2X 12 IN CONE VENTED
OPERATING MODE
AMPLIFIER CHANNELS EXTERNAL SIGNAL PROCESSING
SINGLE-AMP SUB 1/2 DSP W/1-WAY FILTER
DUAL-AMP SUB 1, SUB 2 DSP W/1-WAY FILTER

PERFORMANCE 1
OPERATING RANGE 33 HZ TO 155 HZ
NOMINAL BEAMWIDTH
HORZ 360°
VERT 360°
AXIAL SENSITIVITY (WHOLE SPACE SPL)
96 DB 33 HZ TO 155 HZ
PEAK SENSITIVITY (WHOLE SPACE SPL)
104 DB 20 HZ TO 20 KHZ
INPUT IMPEDANCE (OHMS)
NOMINAL MINIMUM
SUB1/2 4 4.5 @ 140 HZ
SUB 1, SUB 2 8, 8 9.0 @ 140 HZ
RECOMMENDED HIGH PASS FILTER
HIGH PASS => 30 HZ, 12 DB/OCTAVE BUTTERWORTH
ACCELERATED LIFE TEST 2
SUB1/2 69 V 1200 W @ 4 OHM
SUB 1, SUB 2 69 V, 69 V 600 W, 600W @ 8 OHM
CALCULATED AXIAL OUTPUT LIMIT (WHOLE SPACE SPL)
AVERAGE PEAK
SUB 127 DB 133 DB

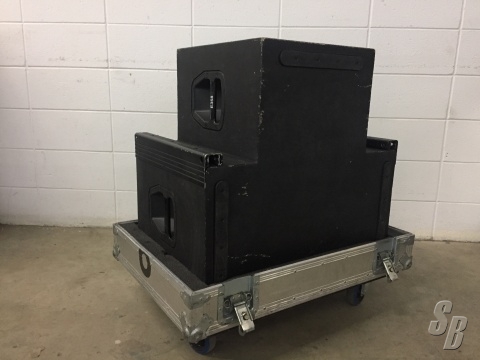

EXTRAS: COMES WITH ROAD CASE. HARDWARE OR PROCESSING IS AVAILABLE AT ADDITIONAL COST.

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: MAINLY USED IN A CORPORATE ENVIRONMENT. SOME LIGHT TOURING.

COMMENTS: NO ISSUES. ALL BOXES ARE TESTED BEFORE THE GO OUT THE DOOR.

THIS UNIT WAS TOURED
