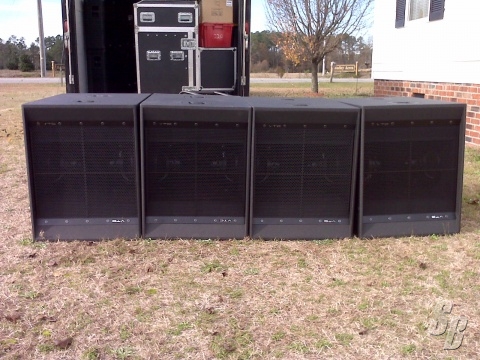

VTC ELS212I LINE ARRAY SUB WOOFERS TOM DANLEY
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on January 18, 2010 - Viewed 527 times

VTC ELS212I (YOM: 2009) (S#: TBD) SUPERB (8-9)

FEATURES: TOM DANLEY DESIGN
CONFIGURATION TAPPED HORN PASSIVE SUBWOOFER
DRIVER COMPONENTS 12" LONG EXCURSION NEODYMIUM WOOFERS (X2)
FREQUENCY RESPONSE 40HZ - 200HZ (-3DB)
35HZ - 260HZ (-10DB)
PROGRAM POWER 1600 WATTS
NOMINAL IMPEDANCE 4 OHMS
SENSITIVITY (1W/1M) 103DB (SINGLE CABINET MEASURED IN FREE SPACE)
MAXIMUM SPL 134DB (SINGLE CABINET MEASURED IN FREE SPACE)
ENCLOSURE MATERIAL 5/8" 11-PLY BALTIC BIRCH PLYWOOD
FINISH BLACK ULTRATHANE PAINT
GRILLE PERFORATED, FORMED POWDER COATED STEEL
CONNECTORS NEUTRIK SPEAKON® NL4MPR IN PARALLEL (X2)
DIMENSIONS (DWH, INCHES) 33 X 28.4 X 22.5
DIMENSIONS (DWH, CM) 83.8 X 72.1 X 57.2
WEIGHT (LBS/KG) 169.5 / 77

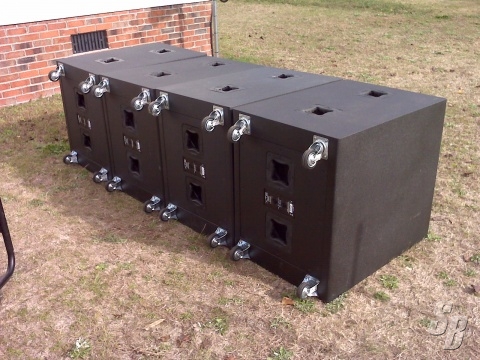

EXTRAS: COMES WITH 3" FIXED AND SWIVLE WHEELS

MODIFICATIONS: WHEELS INCLUDED

HISTORY: ITEMS WERE PURCHASED IN AUG. 2009 THEY HAVE BEEN USED 3 TIMES FOR TESTING AND EVENTS. I AM A VTC DEALER. I ORDERED MORE THAN I NEEDED BECAUSE THEY WERE A NEW PRODUCT AND I WANTED TO MAKE SURE I WAS COVERED FOR THE EVENT. 4 UNITS WORKED VERY WELL FOR AN OUTSIDE EVENT FOR AN AUDIENCE OF 1500 PEOPLE.

COMMENTS: APPLICATIONS
• TOURING SOUND
• LIVE THEATRE
• CONCERT HALLS
• HOUSES OF WORSHIP
• MEDIUM-SIZED EVENTS
• FRONT/SIDE FILL

FEATURES:
• TAPPED HORN SUBWOOFER DESIGN (PATENT PENDING)
• AVAILABLE IN TOURING AND FIXED INSTALLATION VERSIONS
• EXCELLENT FOR ALL THROW DISTANCES
• LOW DISTORTION WITH EXCEPTIONALLY HIGH SPL
• UNPARALLELED CLARITY, DEFINITION & PUNCH
• ADVANCED DLMS4080 DIGITAL LOUDSPEAKER MANAGEMENT SYSTEM
• UNEQUALED PRICE/SIZE/FLEXIBILITY/PERFORMANCE RATIO
• 5/8-INCH BALTIC BIRCH CABINET CONSTRUCTION
• DESIGNED AND MANUFACTURED FOR VTC PRO AUDIO IN NORTH AMERICA

THE ELEVATION SERIES ELS212T (TOURING) AND ELS212I (INSTALLATION) SUBWOOFERS ARE DUAL 12", 4 OHM, 1600-WATT SUBWOOFERS WITH LONG EXCURSION NEODYMIUM WOOFERS CAPABLE OF ACHIEVING 134DB SPL DOWN TO 40HZ AT -3DB. USING AN INNOVATIVE NEW TECHNOLOGY DEVELOPED BY TOM DANLEY CALLED A TAPPED HORN DESIGN (PATENT PENDING), THE TAPPED HORN MAXIMIZES DRIVER EFFICIENCY BY ALLOWING RADIATION FROM THE REAR OF THE DRIVER TO ENTER THE SYSTEM AT A TAP, LOCATED FURTHER DOWN THE HORN FLARE TOWARDS THE MOUTH.

THIS UNIT WAS NEVER TOURED
