JFL213 2-WAY FULL-RANGE LINE ARRAY MODULE BLACK
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on March 03, 2016 - Viewed 182 times

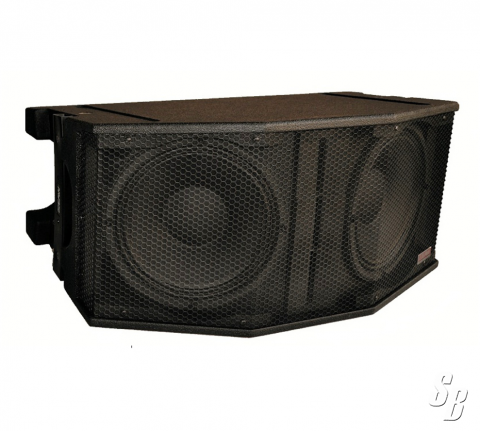

EAW JFL213 2-WAY FULL-RANGE LINE ARRAY MODULE- BLACK
2039855-90-B

THE JFL213 COMPACT, TWO-WAY LINE ARRAY MODULE FEATURES A RANGE OF EAWæ‹… MOST INNOVATIVE LINE ARRAY TECHNOLOGIES WITHIN A MOBILE, LIGHT-WEIGHT PACKAGE APPROPRIATE IN A WIDE RANGE OF SMALL- TO MEDIUM-SIZED VENUES. WITH ITS COMPANION SUBWOOFER, THE JFL118, THIS EASY-TO-USE SYSTEM SOLVES PROBLEMS IN BOTH PORTABLE AND PERMANENTLY INSTALLED APPLICATIONS.
THE JFL213æ‹… TWO-WAY DESIGN MOUNTS DUAL 10-IN CONE TRANSDUCERS IN AN OPTIMALLY VENTED ENCLOSURE AND SPACED TO EXTEND PATTERN CONTROL INTO THE LOW FREQUENCY RANGE. THREE HORN-LOADED, 0.75-IN EXIT / 1.75-IN VOICE COIL COMPRESSION DRIVERS DELIVER EVEN DISPERSION OF HIGH FREQUENCY INFORMATION OVER THE ENTIRE 110ï½° HORIZONTAL COVERAGE AREA.

EAW ENGINEERS OPTIMIZED THE JFL213æ‹… SIZE, SHAPE AND WEIGHT FOR EASY TRANSPORT AND SETUP BY A SINGLE PERSON, WITH SIDE HANDLES DESIGNED AS PART OF THE RIGGING SYSTEM AND ALIGNED WITH THE ENCLOSUREæ‹… CENTER OF BALANCE. USERS CAN MOUNT UP TO TWO JFL213S ON A LOUDSPEAKER STAND WITH A 35MM/1.38-IN DIAMETER POLE. THE CLEVERLY-DESIGNED, DUAL-ANGLE POLE MOUNT CUP ALLOWS THE BOTTOM ENCLOSURE TO BE AIMED 0ï½° OR -15ï½°. (A TWO-MODULE ARRAY WITH THE LOWER MODULES AIMED AT -15ï½° AIMS THE UPPER MODULE AT 0ï½°.) THE JFL118 FEATURES AN INTEGRATED POLE MOUNT CUP, LETTING IT SERVE AS A LARGE, STABLE BASE FOR POLE MOUNTING.

THE JFL213æ‹… ULTRA-STRONG RIGGING SYSTEM ALLOWS USERS TO HANG UP TO FIVE MODULES WITH A 10:1 SAFETY FACTOR, WHICH MEETS OR EXCEEDS ALL STANDARDS ENFORCED THROUGHOUT THE WORLD. A SINGLE PERSON CAN EASILY CONNECT THE MODULES TO THE ACCESSORY FB221 FLY BAR AS WELL AS TO EACH OTHER. THE FB221 ALSO DOUBLES AS
A GROUND STACK BASE FOR UP TO FOUR JFL213S. FOR PERMANENT INSTALLATION, EACH JFL213 PROVIDES A PAIR OF M10 THREADED MOUNTING POINTS.

THE JFL213 ALLOWS USERS TO SWITCH BETWEEN SINGLE- OR BI-AMP POWERING MODES. THE JFL213 DELIVERS OPTIMAL PERFORMANCE WHEN OPERATED IN BI-AMP MODE WITH AN EAW UX SERIES DIGITAL PROCESSOR. IN ADDITION TO THE HF SHADING FILTERS, UX SERIES DIGITAL PROCESSOR DELIVER EAW FOCUSING SETTING, WHICH CORRECT FOR ANOMALIES THAT OCCUR IN THE TIME DOMAIN OF ANY LOUDSPEAKER OR TRANSDUCER.

ENCLOSURES ARE PROTECTED BY OUR TOUGH, SCRATCH-RESISTANT ROADCOAT FINISH AND DURABLE, FOAM-BACKED STEEL GRILLES PROTECT THE TRANSDUCERS. SIX YEAR WARRANTY.

FACTORY WARRANTY, FOB MA.

B-STOCK OR REP OR DEMO SAMPLES CAN HAVE NUMEROUS MEANINGS BUT FOR THE MOST PART IT IS A NEW ITEM FROM THE MANUFACTURER WITH FULL WARRANTY. IT MIGHT HAVE EITHER MINOR COSMETIC DEFECTS NOT VISIBLE FROM MORE THAN 5 FEET AWAY, OR IS A DEMO OR TRADE SHOW SAMPLE, OR THE BOX WAS OPENED FOR INSPECTION (DEMO OR REP SAMPLES USUALLY SHOW A LITTLE MORE USE). IT IS FULLY FUNCTIONAL AND IN 100% WORKING ORDER. IN SHORT, IT IS A GREAT WAY TO SAVE MONEY.

PLEASE NOTE: WHEN ORDERING A B-STOCK OR REP OR DEMO ITEM, UPON SOUNDBROKER.COM ISSUING YOU OUR INVOICE, WE NEED TO RECEIVE YOUR PAYMENT IMMEDIATELY IN ORDER TO ENSURE THAT WE WILL BE ABLE TO COMPLETE THIS ORDER. WE ARE PREPARED TO PLACE YOUR ORDER WITH THE MANUFACTURER UPON RECEIPT OF YOUR PAYMENT, HOWEVER BECAUSE THERE IS A LIMITED AMOUNT THIS TYPE OF PRODUCT AND IT IS ON A FIRST COME FIRST SERVE BASIS, WE RESERVE THE RIGHT TO REFUND YOUR TOTAL PAYMENT IN THE UNLIKELY EVENT, THAT THE ITEM IS NO LONGER AVAILABLE AT THE TIME WE PLACE THE ORDER ON YOUR BEHALF.
