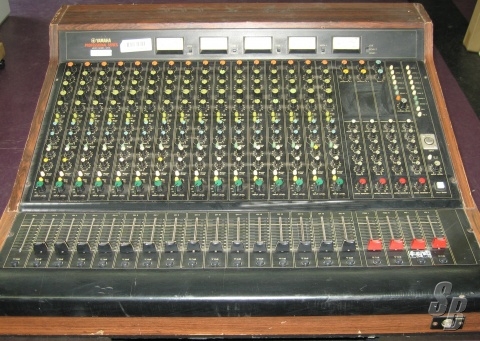

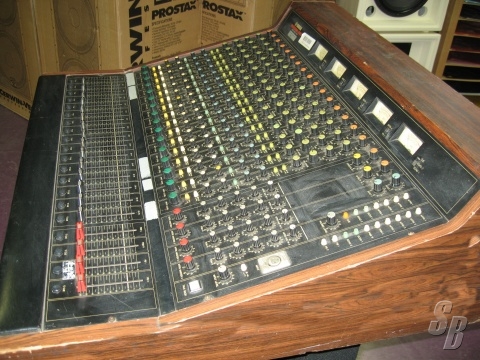

YAMAHA VINTAGE M916 16X4X2 MIXING BOARD
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 01, 2008 - Viewed 580 times

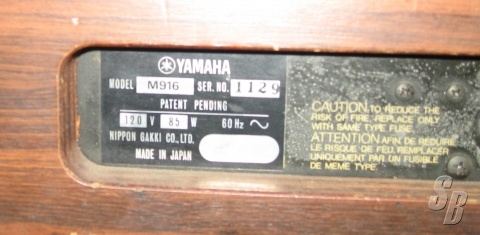

DESCRIPTION: YAMAHA M916 (1980) (S#: 1129) AVERAGE FOR AGE (6-7)

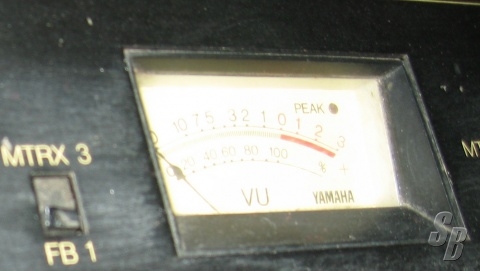

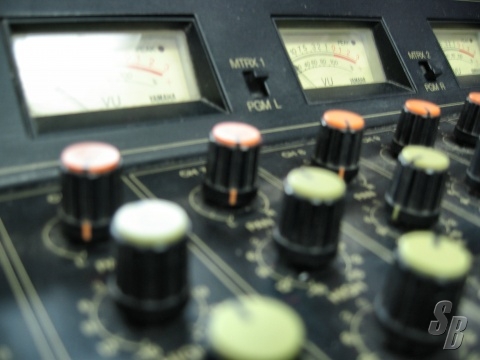

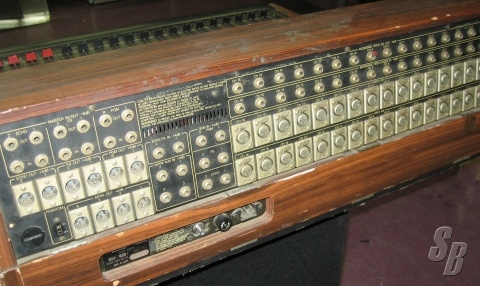

FEATURES: PRO AUDIO MIXER WITH 16 CHANNELS X2 (M1 AND M2), 1 TALK BACK CHANNEL, L/R OUT, FB IN AND OUT 1 AND 2, ECHO IN/OUT 1 AND 2, EFFECTS IN 1 AND 2, MATRIX AUX IN LINES 1/2/3/4, SUB IN L/R, FB LINES 1 AND 2, ECHO LINES 1 AND 2, INTERSTAGE PATCH EQ OUT AND INTERSTAGE PATCH FADER IN. 5 ILLUMINATED METERS SWITCHABLE FOR PROGRAM/MATRIX-FOLDBACK/MATRIX-ECHO1/ECHO2/CUE. STEREO HEAD PHONE OUT LINE. SWITCHABLE PHANTOM POWER. PEAK INDICATORS ON ALL CHANNELS AND METERS. EQ AND INPUT LEVEL CONTROL ON ALL 16 CHANNELS. FREQ RESPONSE 20 HZ TO 20 KHZ. THD LESS THAN 0.5% AT +10 DB OUTPUT 20HZ-20KHZ. CROSSTALK -60 DB. +/-15 DB RANGE FOR EACH EQ BAND. CHANNEL INPUTS AND TALKBACK USEABLE WITH 50-250 OHM MICS OR 600 OHM LINES, ALL OTHER INPUTS/OUTPUTS ARE 600 OHM LINES EXCEPT 10K OHM LINES ON CH PATCH EQ OUT/PGM MASTER OUT/FB MASTER OUT/ECHO MASTER OUT. HEADPHONE LINE IS USEABLE WITH 8 TO 600 OHM DEVICES. ALL XLR CONNECTORS ARE BALANCED, ALL PHONO JACKS ARE UNBALANCED.

OPERATES ON 120 VOLTS AC.



EXTRAS: MANUAL (PAPER OR ELECTRONIC PDF FILE)

MODIFICATIONS: IT'S AN VINTAGE UNIT. HAS SEEN MORE OWNERS AND SERVICED A COUPLE OF TIMES. PICK
UP IN STORE(SANTA ANA, CA) AVAILABLE.

HISTORY: NIGHT CLUB, LOS ANGELES

COMMENTS: WE HAVE DONE A BASIC CHECK OF ALL INPUT CHANNELS, FADERS, METERS, FB AND ECHO BUSES, AND TALKBACK AND FOUND THE MIXER IS IN GOOD WORKING ORDER. HOWEVER IT IS BEING SOLD AS-IS. WE HAVE NO WAY TO GUARANTEE IT MEETS ALL ORIGINAL SPECS. IT HAS A FEW NICKS ON THE SIDES. CONTROLS AND PANEL ARE CLEAN. HAS TAPE RESIDUE IN A COUPLE PLACES.



THIS UNIT WAS NEVER TOURED
