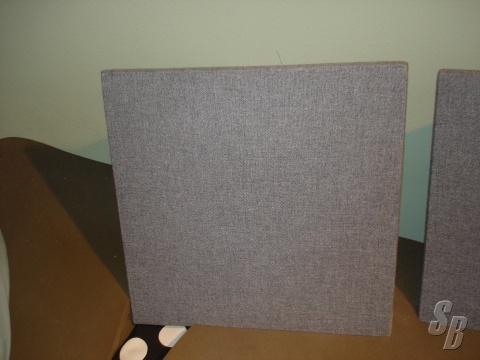

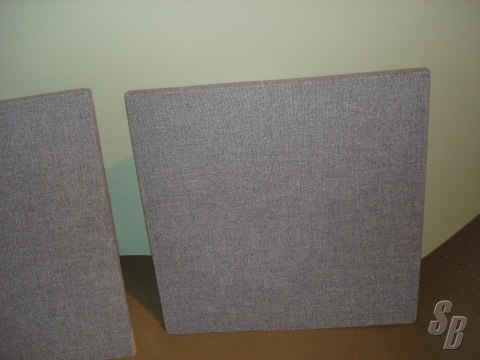

RPG MODEX CORNER BASS TRAPS
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on September 27, 2007 - Viewed 315 times

DESCRIPTION: RPG MODEX CORNER TRAPS (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES:
SMALL ROOMS LIKE STUDIOS, GARAGES AND HOME SOUND SYSTEMS NEED A VERY EFFICIENT SURFACE TO DIFFUSE INTERFERRING REAR WALL REFLECTIONS AND PROVIDE A DIFFUSE SOUND FIELD. SPECULAR REFLECTIONS FROM FLAT, HARD SURFACES CAUSE STRONG REFLECTIONS THAT CORRUPT SPEECH INTELLIGIBILITY AND DEGRADE SOUND QUALITY. BECAUSE BASS FREQUENCIES HAVE VERY LONG WAVELENGTHS, BASS ABSORPTION PRODUCTS USUALLY REQUIRE SPACE - ONE THING THAT IS IN SHORT SUPPLY IN MOST PROJECT STUDIOS. HOWEVER, THE CORNERS BETWEEN TWO WALLS OR BETWEEN A WALL AND A CEILING USUALLY GO UNUSED. TO CONSTRUCTIVELY UTILIZE THIS SPACE, RPG DEVELOPED THIS CORNER BASS TRAP. IT UTILIZES A PROPRIETARY MEMBRANE, WITH HIGH INTERNAL LOSSES AND 3 TO 4 TIMES THE EFFICIENCY OF CONVENTIONAL MEMBRANES, WITH AN INCREDIBLE EFFICIENCY OF 80% AT 80HZ. THE CAVITY SUPPORTING THE MEMBRANE IS MOLDED INTO A TRAPEZOIDAL SHAPE TO FIT INTO THESE 90-DEGREE CORNERS. TO FURTHER BROADEN THE RANGE OF FREQUENCIES BEING ABSORBED RPG HAS ADDED A 2" PERFORATED FIBERGLASS MAT IN THE CAVITY 1/4" FROM THE MEMBRANE.

THE 2' X 2' FACE OF THE BASS TRAP IS WRAPPED OR COVERED WITH YOUR CHOICE OF A GUILFORD OF MAINE FABRIC FROM THE FR 701, STYLE 2100 LINE. TO FURTHER CONTROL ROOM MODES, THE BASS TRAP CAN BE MOUNTED INTO A STANDARD T-BAR CEILING OVER THE MIXING POSITION AND ON SIDEWALLS TO EITHER SIDE OF THE MIXING POSITION.


PRODUCT DATA

SIZE: 23 5/8" WIDE X 23 5/8" HIGH X 12 1/4" DEEP
WEIGHT: 15 POUNDS EACH
PACKAGING: 2 PER BOX
COLOR: GUILFORD OF MAINE FABRIC LINE FR701, STYLE 2100
SOUND ABSORPTION DATA
OCTAVE BAND FREQUENCIES (HZ)
PRODUCT 125 250 500 1000 2000 4000 NRC
RPG BASS TRAP .54 .36 .21 .26 .32 .46 1.00


EXTRAS: NONE

MODIFICATIONS: NO MODS

HISTORY: USED IN HOME STUDIO; NON-SMOKER

COMMENTS: IF YOU HAVE 8 FT CEILINGS YOU NEED THESE.

THIS UNIT WAS NEVER TOURED

SOLD AND PRICED AS A PAIR
