3-TAO P300M AMPLIFIERS
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on May 08, 2009 - Viewed 373 times

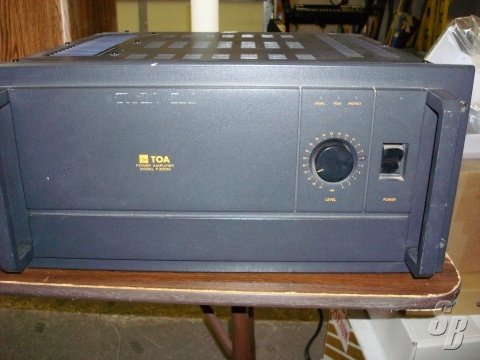

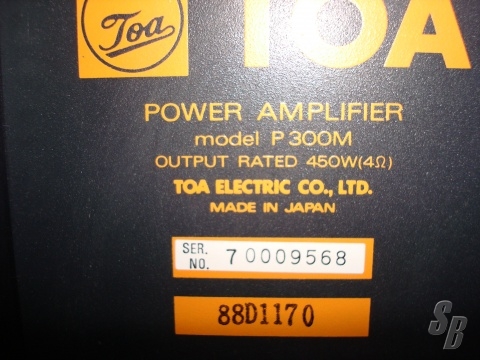

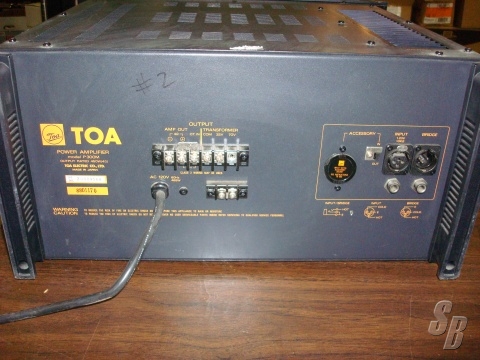

TOA P300M (YOM: ?) (S#: 70009568) SUPERB (8-9)

PRICED AND SOLD AS PACKAGE OF 3

FEATURES: 150 WATTS MINIMUM SINE WAVE CONTINUOUS AVERAGE POWER
OUTPUT WITH 8-OHMS LOADS OVER A POWER BAND FROM 20HZ TO
20KHZ. THE MAXIMUM TOTAL HARMONIC DISTORTION (THD)
AT ANY POWER LEVEL FROM 250 MILLIWATTS TO 150 WATTS SHALL
BE NOT MORE THAN 0.1%.
220 WATTS MINIMUM SINE WAVE CONTINUOUS AVERAGE POWER
OUTPUT WITH 4-OHM LOADS OVER A POWER BAND FROM 20HZ TO
20KHZ. THE MAXIMUM TOTAL HARMONIC DISTORTION (THD)
AT ANY POWER LEVEL FROM 250 MILLIWATTS TO 220 WATTS SHALL
BE NOT MORE THAN 0.15%.
160 WATTS CONTINUOUS AVERAGE SINE WAVE POWER INTO 8
OHMS WITH LESS THAN 0.1% THD, AT 1 KHZ.

EXTRAS: MANUAL AND SPECS

MODIFICATIONS: BLACK FINISH

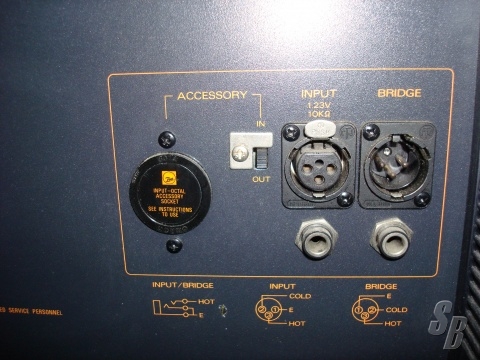

INPUT CONNECTORS
ONE "MALE" AND ONE "FEMALE" XLR CONNECTOR IN PARALLEL,
PIN 2 "COLD", PIN 3 "HOT", AND PIN 1 "SHIELD". XLR'S ARE
UNBALANCED AND PARALLEL TO TWO TIP-SLEEVE (STANDARD)
PHONEJACKS.
ACCESSORY SOCKET
8-PIN OCTAL SOCKET ACCEPTS AN OPTIONAL MATCHING TRANSFORMER
MODULE FOR BALANCED INPUT, OR USER OPTIONS (PINS
INCLUDE ±VCC, SIGNAL INPUT/OUTPUT AND CIRCUIT GROUND)

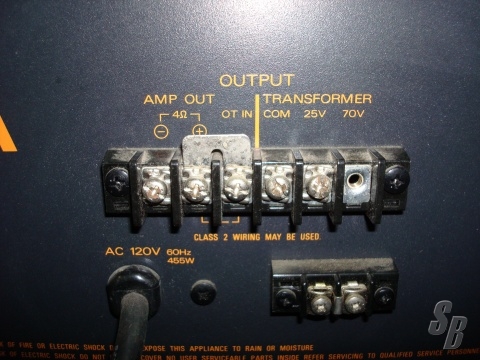

OUTPUT CONNECTORS
BARRIER STRIP TERMINAL

HISTORY: USED FOR A PA SYSTEM ONCE HAS BEEN HOUSED IN WAREHOUSE AFTER PA SYSTEM WAS UPGRADED

COMMENTS: NO KNOWN PROBLEMS
GOOD WORKING CONDITION

THIS UNIT WAS NEVER TOURED
