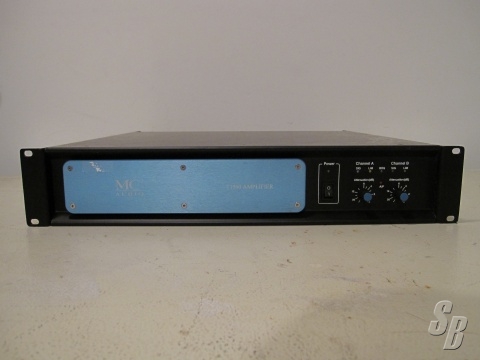

MC2 T1500 AMPLIFIER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on May 21, 2013 - Viewed 221 times

MC2 AUDIO T1500 (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: MC2 T1500 IN GREAT CONDITION. THIS AMPLIFIER WAS USED FOR SHORT TIME IN AN INSTALLATION AND HAS BEEN SITTING SINCE. IT IS IN 100% WORKING CONDITION AND IN GREAT PHYSICAL SHAPE WITH ALMOST NO WEAR.

NUMBER OF CHANNELS:

2


FREQUENCY RESPONSE:

20HZ TO 20KHZ
(+ 0/- 0.5DB)
OUTPUT POWER: (PER CHANNEL) POWER CONSUMPTION:
8 OHMS 575W NOMINAL @ 240V INTO 4 OHMS 2.5A
4 OHMS
1025W NOMINAL @ 120V INTO 4 OHMS 5.0A
2 OHMS
1750W
DIMENSIONS: (2U) (MM)
OUTPUT POWER: (BRIDGED) AMPLIFIER 88(H) X 482(W) X 428(D)
8 OHMS
2050W SINGLE BOX (UK SHIPPING) 230 X 580 X 560
4 OHMS
3500W
DOUBLE BOX (OUTSIDE UK)
250 X 610 X 600
THD%: (@1DB BELOW MAX OUTPUT) WEIGHT:
@ 1KHZ
<0.008% AMPLIFIER
17.7KG
20HZ TO 20KHZ
<0.03% BOXED (SHIPPING WEIGHT)
19.2KG
GAIN / SENSITIVITY:

GAIN
32DB
SENSITIVITY (FOR MAX POWER)
+5.5DBU
(5.0V)

DESIGNED FOR THE FIXED INSTALLATION MARKET, THE HIGH PERFORMANCE T SERIES FEATURES MC² AUDIO’S COMPLEMENTARY CLASS AB BIPOLAR TOPOLOGY AND THE UNIQUE MC² AUDIO CURRENT DRIVEN FLOATING DRIVE STAGE.

CONVENTIONAL ANALOGUE LEVEL CONTROLS HELP DELIVER THE CLEANEST SOUND AVAILABLE COUPLED WITH ULTRA-HIGH STANDARDS OF RELIABILITY. THE T SERIES’ PROPRIETARY CONTROL AND PROTECTION CIRCUITRY CONTINUOUSLY CHECKS FOR FAULT CONDITIONS INCLUDING SHORTED OUTPUTS, DC ON OUTPUTS, EXCESSIVE TEMPERATURE, AND COMPONENT FAILURE. IF SUCH AN EVENT OCCURS THE OUTPUTS ARE DISCONNECTED, SAVING EXPENSIVE DRIVER REPAIR BILLS.

SOPHISTICATED 'SIDE CHAIN' LIMITERS PREVENT DISTORTION AND SPEAKER DAMAGE BUT ARE OUT-OF-CIRCUIT UNTIL THE ONSET OF CLIPPING. THE CONTROL CIRCUITRY PROVIDES FULL PROTECTION AGAINST INRUSH CURRENT LIMITING WITH DELAYED 'TURN ON'. LOW NOISE VARI-SPEED FANS ARE UTILIZED TO MINIMIZE MECHANICAL NOISE, MAKING THE T SERIES AN IDEAL CHOICE FOR LIVE THEATRE. OPTIONAL INTERNAL CROSSOVER CARDS AVAILABLE.

EXTRAS: NO.

MODIFICATIONS: NO.

HISTORY: EX-INSTALL.

COMMENTS: NONE.

THIS UNIT WAS NEVER TOURED
