DAN DUGAN D2 AUTOMATIC MIXER
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on July 23, 2014 - Viewed 361 times

DAN DUGAN D2 (YOM: 2005) (S#: TBD) LIKE NEW (9-10)

FEATURES: APPLICATIONS

* BROADCAST NEWS, TALK AND GAME SHOWS
* CONFERENCE REINFORCEMENT AND VIDEO TAPING
* FILM AND TELEVISION DIALOGUE, REALITY SHOWS
* MULTIPLE WIRELESS MICS FOR THEATER AND OPERA
* BOARDROOMS, TELECONFERENCING, DISTANCE LEARNING

FEATURES

* ELIMINATES LATE UPCUTS
* REDUCES PA FEEDBACK AND STUDIO NOISE
* CONVENIENT REMOTE CONTROL PANEL
* LINK MULTIPLE UNITS FOR UP TO 64 INPUTS
* PROVIDES OPTIMIZED ALGORITHMS FOR SPEECH, MUSIC AND GAIN

THE MODEL D-2 AUTOMATIC MIXING CONTROLLER HELPS PROFESSIONAL AUDIO MIXERS HANDLE MULTIPLE LIVE MICS WITHOUT HAVING TO CONTINUALLY RIDE THEIR INDIVIDUAL FADERS. THE EIGHT-CHANNEL PROCESSOR PATCHES INTO THE INPUT INSERT POINTS OF AN AUDIO MIXING CONSOLE. THE MODEL D-2 DETECTS WHICH MICS ARE RECEIVING INPUT AND MAKES FAST, TRANSPARENT CROSS-FADES, FREEING THE MIXER TO FOCUS ON BALANCE AND SOUND QUALITY INSTEAD OF BEING CHAINED TO THE FADERS. THE D-2’S VOICE-CONTROLLED CROSSFADES TRACK UNSCRIPTED DIALOGUE PERFECTLY, ELIMINATING CUING MISTAKES AND LATE FADE-UPS WHILE AVOIDING THE CHOPPY AND DISTRACTING EFFECTS COMMON TO NOISE GATES.

THE MODEL D-2 INCORPORATES THREE DUGAN-PATENTED TECHNOLOGIES:

THEDUGANSPEECHSYSTEMTMAUTOMATICALLYMANAGESANYNUMBEROFLIVEMICSINUNSCRIPTEDTALKINGSITUATIONS.

THEDUGANMUSICSYSTEMTMOFFERSAUTOMATICDOWNWARDEXPANSIONTOHELPREDUCEFEEDBACKANDNOISEPICK- UP IN LIVE MUSIC PERFORMANCES (OPERA, BACK-UP VOCALISTS). THRESHOLDS ARE ADJUSTED AUTOMATICALLY THROUGH CON- TINUOUS MONITORING OF AMBIENT NOISE LEVELS.

DUGAN GAIN LIMITINGTM PROVIDES CONTINUOUS, STEPLESS NOM MASTER GAIN CONTROL TO PREVENT FEEDBACK AND AMBIENT NOISE BUILD-UP WHEN USED WITH EITHER THE MUSIC SYSTEM OR WITH MANUAL OR REMOTE MIC SWITCHING.

THE COMBINATION OF THESE THREE DUGAN TECHNOLOGIES MAKE THE MODEL D-2 A UNIQUE AUDIO INDUSTRY TOOL. PROFESSIONAL CONNECTORS AND DEFAULT CONTROL SETTINGS MARKED ON THE UNIT ALLOW IT TO BE SET UP AND RUNNING WITH ANY CONSOLE IN MINUTES.

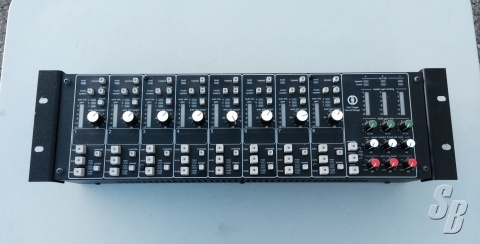

CONNECTORS

TWO FIVE-PIN MALE XLRS FOR COMBINED CONTROL AND POWER CABLE. CABLE MAY BE CONNECTED TO EITHER THE LEFT SIDE OR THE REAR OF THE CONTROL PANEL.

DIMENSIONS

3RU H = 2.5 IN (6.4 CM) D = 5.0 IN (13.0 CM) W = 17.0 IN (43.0 CM); 19 IN (48 CM) WITH RACK EARS

WEIGHT

7.2 LB (3.25 KG); 9.1 LB (4.10 KG) SHIPPING WITH BOX AND CONTROL CABLE

PROCESSOR

AUDIO INPUTS

ACTIVE BALANCED, 10 KΩ; INSERT LEVEL RANGE = -22 TO +4 DBU; MAXIMUM = +21 DBU

AUDIO OUTPUTS

SOURCE IMPEDANCE BALANCED; 100 Ω SOURCE; WILL DRIVE A 600 Ω LOAD PIN 2 = HOT, PIN 3 = PASSIVE, PIN 1 = GROUND

GAIN

UNITY

A/D AND D/A

48 KHZ, 24-BIT

AUDIO LATENCY

1.2 MS

FREQUENCY RESPONSE

10 HZ TO 22 KHZ, +0/-1 DB

MAXIMUM OUTPUT

+21 DBU

OUTPUT NOISE

LESS THAN -84 DBU; 105 DB DYNAMIC RANGE

CROSSTALK

-81 DB @ 20 KHZ

DISTORTION

LESS THAN 0.003% THD+N AT +21 DBU

LINKING

OPTICAL RING, UP TO 8 UNITS (64 CHANNELS); LEGACY LINK INPUT CONNECTOR FOR MODEL D AND/OR D-1

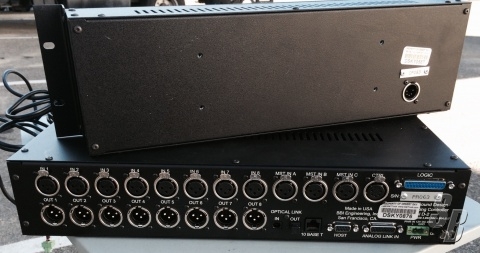

CONNECTORS

AUDIO:
CONTROL PANEL: 10BASET:
HOST RS-232: LINKING:
LEGACY LINK INPUT: REMOTE (LOGIC I/O): POWER:

XLR (FEMALE INPUTS, MALE OUTPUTS) 5-PIN FEMALE XLR
RJ-45
DB-9

ADAT OPTICAL
DB-15
DB-25
PLUG-IN SCREW COMPRESSION TERMINAL STRIP

LOGIC INPUTS

8 CHANNEL MUTES, SYSTEM OVERRIDE, SYSTEM MUTE (ALL MOMENTARY, WHILE HELD). TTL, ACTIVE LOW (CONTACT TO GROUND).

LOGIC OUTPUTS

8 CHANNEL ACTIVE FLAGS. ACTIVE LOW, MAXIMUM APPLIED VOLTAGE 30 V, MAXIMUM CURRENT SINKING 300 MA MOMENTARY, 100 MA SUSTAINED, INDUCTIVE LOAD PERMITTED. INTERNAL 51 KΩ PULL-UP TO 5 V.

POWER

12 VDC 2A; SEPARATE POWER SUPPLY UNIT; INPUT 90–264 VAC, 47–63 HZ, 45 VA; APPROVED UL, CSA, TUV

DIMENSIONS

2RU H = 3.5 IN (8.8 CM) D = 10.0 IN (25.0 CM) W = 19.0 IN (48.0 CM)

WEIGHT

11.5 LB (5.2 KG)
14.5 LB (6.5 KG) IN SHIPPING BOX WITH POWER SUPPLY 23.6 LB (10.6 KG) ENTIRE SYSTEM

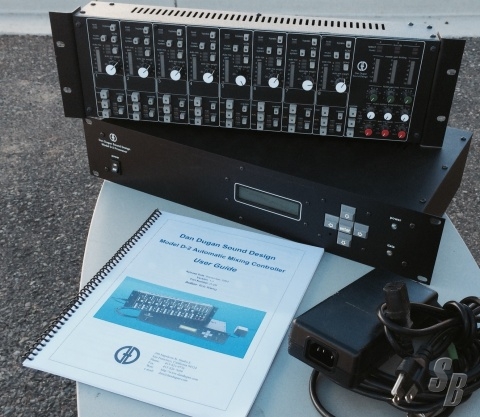

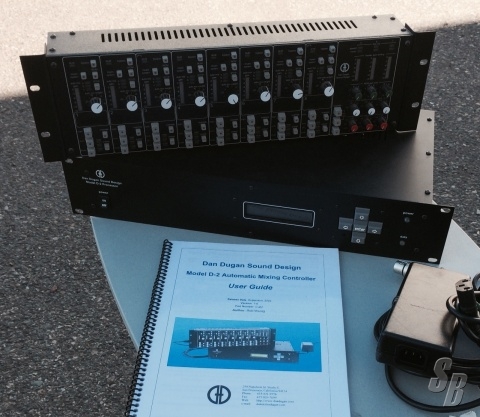

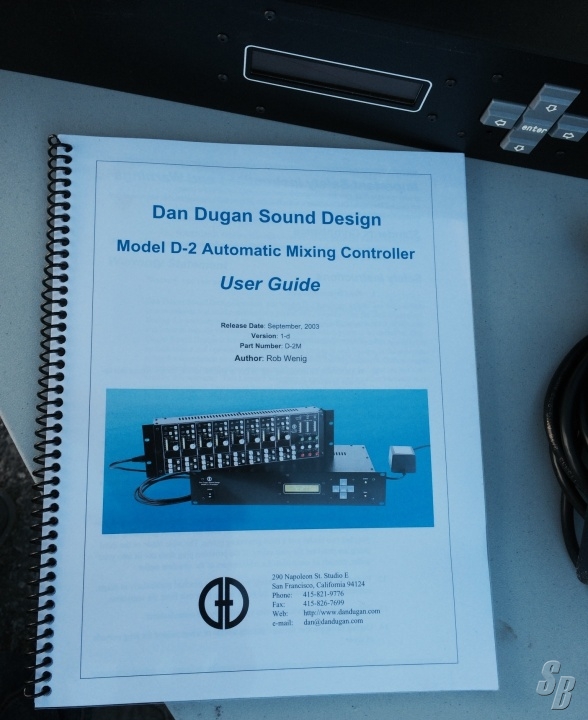

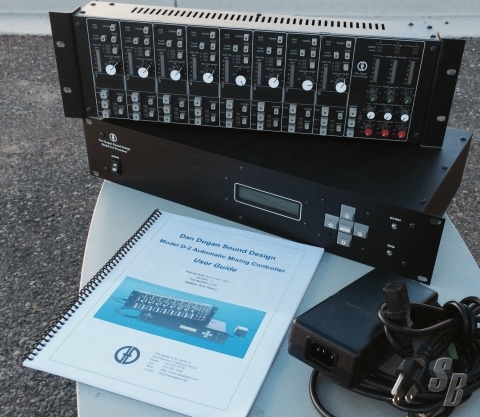

EXTRAS: COMES WITH MANUAL, POWER SUPPLY, AND INTERCONNECT CABLE.

MODIFICATIONS: STOCK. NO MODS.

HISTORY: THESE UNITS WERE USED ON ONE LONG PROJECT OVERSEAS. ELECTRONICALLY AND COSMETICALLY THEY ARE IN EXCELLENT CONDITION.

COMMENTS: EXCELLENT CONDITION

THIS UNIT WAS NEVER TOURED
