DIGICO DS00 (YOM: 2004) (S#: 1960510312) SUPERB (8-9)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 07, 2009 - Viewed 272 times

DIGICO DS00 (YOM: 2004) (S#: 1960510312) SUPERB (8-9)

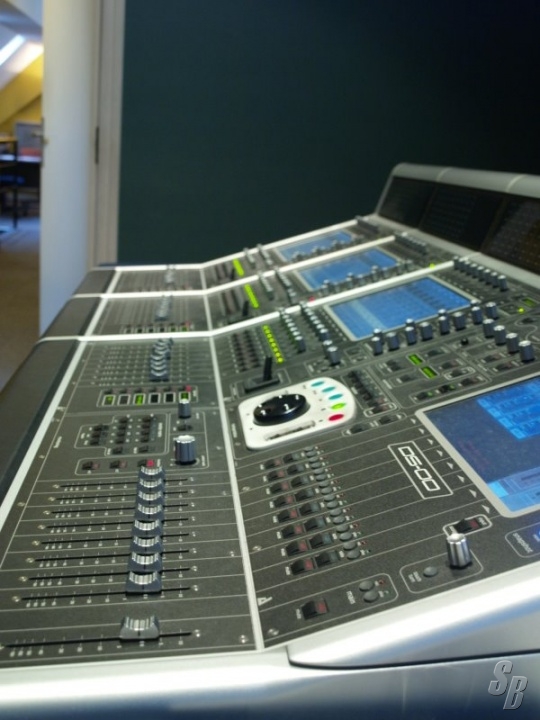

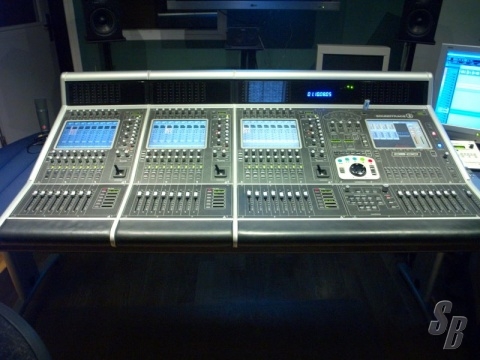

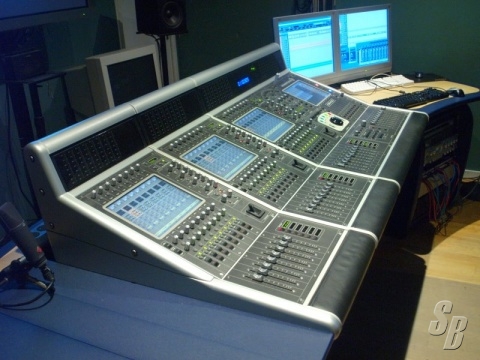

FEATURES: - DS-00 MAIN SURFACE WITH 8 CHANNEL MODULE + MASTER MODULE (8 ASSIGNABLE FADERS).
- 2 EX-00 8 FADER EXTENSIONS, BRINGING THE TOTAL FADER COUNT TO 32 (24 CHANNELS + 8 ASSIGNABLE).
- 2 DS-00 SLAVE CARDS (DSP), FOR 128 FULL PROCESS AUDIO CHANNELS.
- MADI EXPANSION CARD FOR A TOTAL OF 4 MADI I/O (2 ARE USED BY DIGIRACKS)
- GPIO CARD.

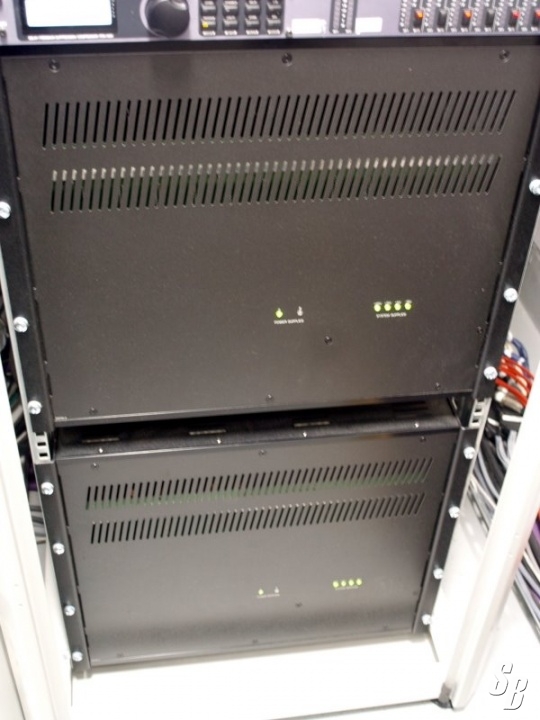

- 2 DIGIRACK I/O RACKS, WITH UP TO 56 I/O PER RACK (I/O DESCRIPTION BELOW).

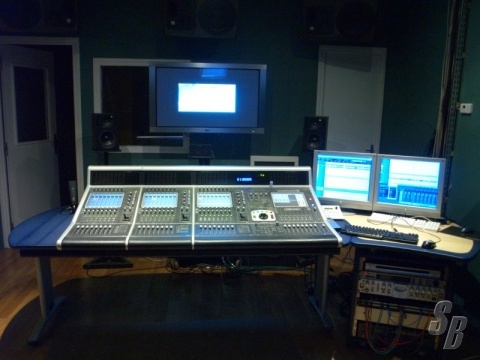

- COMPLETE AKA DESIGN FURNITURE FOR THE DESK (PROWAVE, CONFIGURATION B), WITH LEFT-HAND + RIGHT-HAND WINGS, AND A RACK ENCLOSURE THAT FITS UNDER ONE OF THE WINGS.

INPUTS IN DIGIRACKS:

* 16 MIC/LINE
* 72 AES-EBU (36 AES PAIRS)
* 1 ADAT PORT

OUTPUTS IN DIGIRACKS:

* 24 ANALOG LINE LEVEL OUTPUTS (USED FOR MONITORING ALSO)
* 48 AES-EBU (24 AES PAIRS)
* 1 ADAT PORT


EXTRAS: COMES WITH ORIGINAL MANUAL, SPARE FADERS + POTS.

MODIFICATIONS: INTERNAL HARD DRIVE REPLACED BY SOLID STATE FLASH DRIVE FOR SILENT OPERATION.

HISTORY: FILM AND TV POST PRODUCTION USE. NON SMOKING STUDIO USE ONLY.

COMMENTS: VERY GOOD WORKING CONDITION.

THIS UNIT WAS NEVER TOURED
