DIGICO S21
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on February 11, 2019 - Viewed 276 times

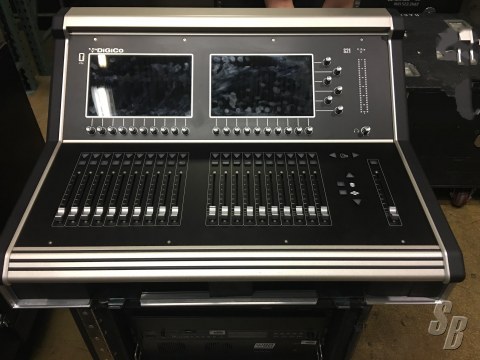

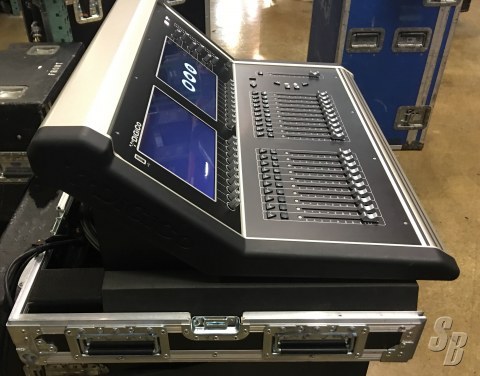

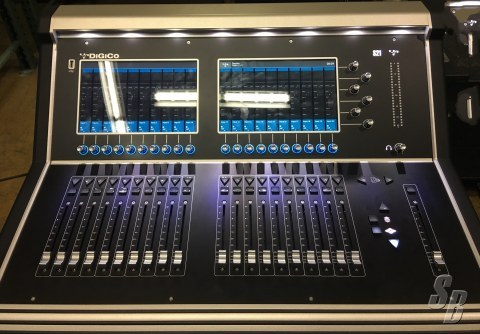

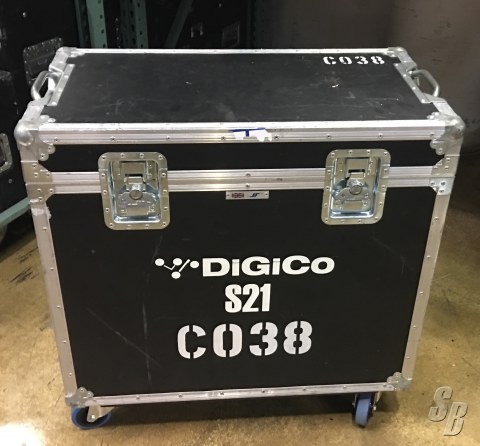

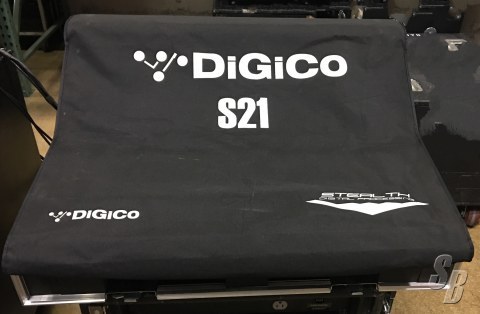

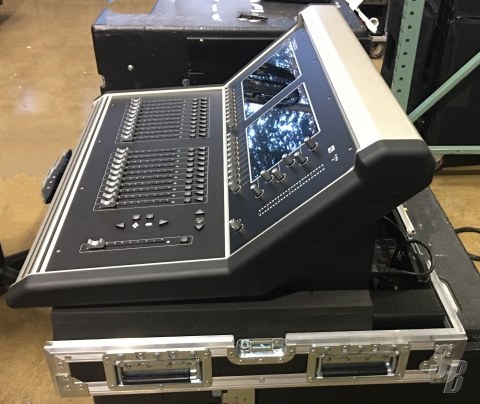

DIGICO S21 CONSOLE WITH ROAD CASE (YOM:????) (SN:TBD)

COMMENTS: I AM SELLING THE CONSOLE WITHOUT THE DMI CARDS. NOT SURE IF I HAVE THE BLANK COVERS FOR DMI SLOTS. USED ONLY FOR CORPORATE SHOWS

DESCRIPTOIN:

STEALTH DIGITAL PROCESSINGTM - SUPER FPGA PROCESSOR 40-BIT FLOATING POINT PROCESSOR

96KHZ SAMPLING RATE STANDARD OR 48KHZ

48 INPUT CHANNELS: 48 FLEXI* CHANNELSTM - *(MONO OR STEREO INPUTS)

46 OUTPUT BUSSES: 16 FLEXI BUSSESTM - MONO OR STEREO (UP TO 32 XLR'S) AUX/GROUP OUTPUTS STEREO L/R MASTER BUSS

PLUS 10 INPUT X 8 OUTPUT MATRIX

2 MONO/STEREO SOLO BUSSES

ALL INPUTS CHANNELS & OUTPUT BUSSES INCLUDE:

DELAY, *DIGI-TUBE, VARIABLE HI & LO PASS, 4 BAND PEQ , PRE-EQ OR POST DYNAMICS INSERT POINT DYNAMICS 1 (COMPRESSOR OR *MULTI-BAND COMPRESSOR), DYNAMICS 2 (GATE W/ FILTERED KEY FROM ANY POINT, DUCKER OR COMPRESSOR W/ FILTERED SIDE CHAIN)

*4 DIGI-TUBES AVAILABLE ON ANY INPUT OR OUTPUT

*4 MULTI-BAND COMPRESSORS AVAILABLE ON ANY INPUT OR OUTPUT 10 CONTROL GROUPS/VCA

16 X 32 BAND INSERTABLE GRAPHIC EQ'S
8 FX ENGINES (REVERBS, DELAY AND ENHANCER)

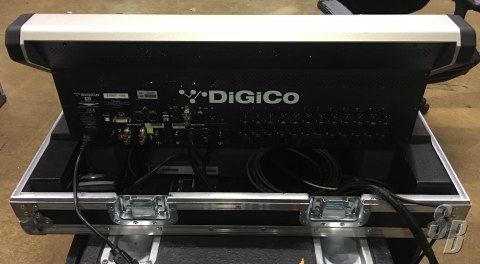

LOCAL I/O:

2 X DMI DIGICO MULTI-CHANNEL INTERFACE SLOTS (UP TO 64 I/O PER DMI SLOT)

24 MIC/LINE INPUTS (SD SERIES PRE-AMP)
12 ANALOG OUTPUTS
1 AES INPUT (2 CHANNELS) W/SRC

1 AES OUTPUT (2 CHANNELS)
INTEGRATED 48 CHANNEL RECORDING INTERFACE I/O - USB2.0 TYPE B CONNECTION 1 GPI AND 1 GPO (TRS)
DVI OUTPUT (EXTERNAL VIDEO MONITOR)
WORD CLOCK I/O BNC
2 ETHERNET CONNECTIONS FOR NETWORKING

2 X 10" MULTI-TOUCH SCREENS
21 MOVING FADERS (TOUCH SENSITIVE)
TOUCH SENSITIVE ROTARIES WITH INTEGRATED SWITCH & HTLTM (HIDDEN TILL LIT TECHNOLOGY) 1/4" & 3.5MM MINI HEADPHONE OUTPUT CONNECTORS
BANK LAYOUT:

8 CUSTOMIZABLE BANKS OF 10 FADERS (ALL CUSTOMIZABLE)

SNAPSHOT AUTOMATION
