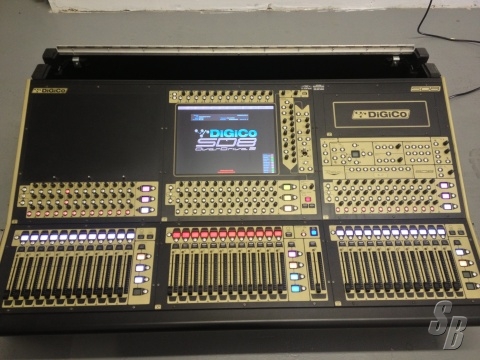

DIGICO SD8 WITH MADI STAGE RACK
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 21, 2013 - Viewed 116 times

DIGICO SD8 (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: GENERAL SPECIFICATIONS:

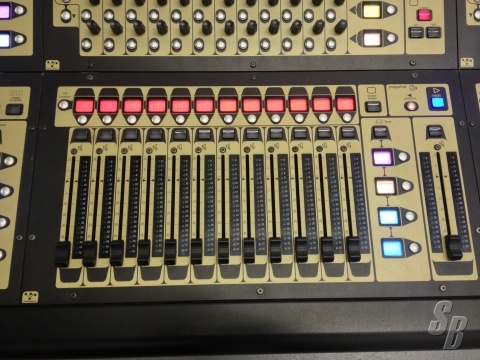

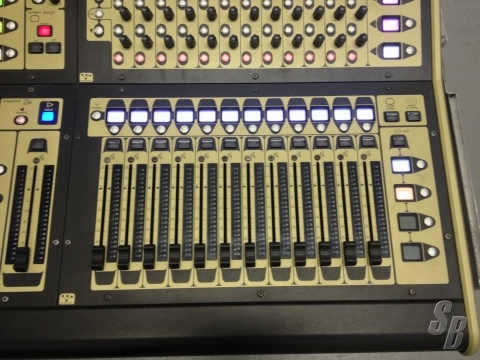

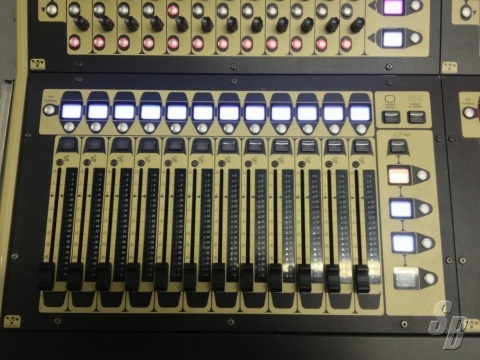

FADERS 37 (OR 25) X 100MM TOUCH-SENSITIVE, MOTORIZED
SCREENS 1 X 15” (38CM) LCD HIGH - RESOLUTION
TOUCH SCREEN
METERS 38 (OR 26) X 20-SEGMENT LED BAR GRAPH
INPUT CHANNELS 60 MONO OR STEREO CHANNELS
BUSSES 24 MONO OR STEREO BUSSES + LR MASTER (+LCR MASTER WITH OVERDRIVE SOFTWARE)
SOLO BUSSES 2 STEREO BUSSES
MATRIX 16 X 12 MATRIX (ADDITIONAL TO BUSSES ABOVE) WITH OVERDRIVE SOFTWARE
CONTROL GROUPS 12, SELECTABLE FOR VCA-STYLE,
MOVING FADER, MUTE GROUP
GRAPHIC EQ 24 X 32-BAND, GAIN +/- 12DB (WITH OVERDRIVE SOFTWARE)
INTERNAL FX 10 STEREO FX PROCESSORS (WITH OVERDRIVE SOFTWARE)

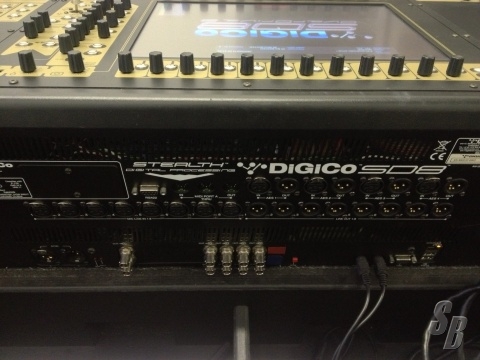

LOCAL I/O 8 X MIC/LINE I/O, 8 X AES/EBU I/O
(MONO)
MADI INTERFACE 2 REDUNDANT INTERFACES,
75 OHM BNC CONNECTIVITY

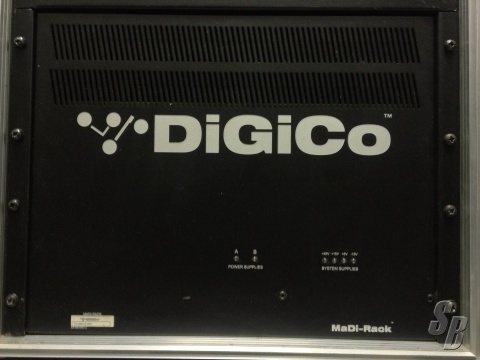

THE MADI RACK HAS 48 FIXED INPUTS AND 24 OUTPUTS

EXTRAS: THE CONSOLE COMES WITH A AMPTOWN ROADCASE
MADI RACK COMES IN A 12 SPACE ROADCASE

MODIFICATIONS: NONE

HISTORY: USED AS A CORPORATE RENTAL DESK.

COMMENTS: CONSOLE WAS JUST GIVEN A FULL SERVICE BY DIGICO AND HASN'T BEEN OUT OF THE CASE SINCE. IT IS 100% READY TO GO!

THIS UNIT WAS NEVER TOURED
