HARMON SOUNDCRAFT SI2 DIGITAL LIVE SOUND AUDIO MIXING CONSOLE
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on November 14, 2014 - Viewed 263 times

SOUNDCRAFT SI2 (YOM: ?) (S#: 30157140) SUPERB (8-9)

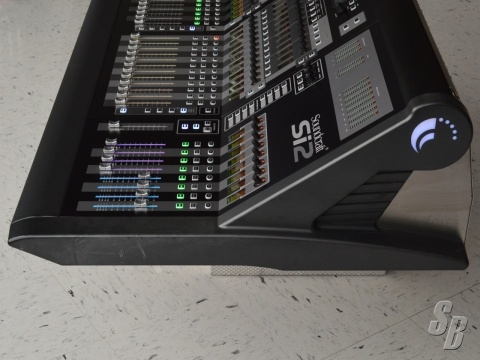

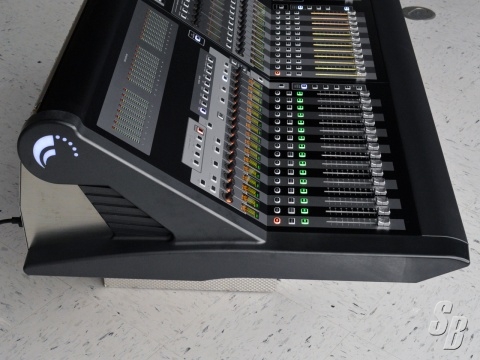

FEATURES: THIS HARMON SOUNDCRAFT SI2 DIGITAL LIVE SOUND CONSOLE IS IN EXCELLENT CONDITION.

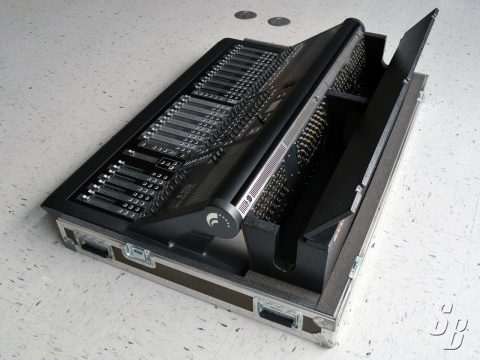

THE CONSOLE WAS RECENTLY SERVICED AND TESTED BY HARMON (THE MANUFACTURER) IN CALIFORNIA, AND IS READY TO WORK. THE CONSOLE COMES WITH A CUSTOM-FITTED, ROLLING TRAVEL CASE.

THE SOUNDCRAFT SI2 DIGITAL CONSOLE IS PRIZED BY SOUND MIXERS FOR ITS CAPABILITIES AND COMPACT SIZE. NO LONGER AVAILABLE FROM SOUNDCRAFT, SI2 CONSOLES SOLD NEW FOR $23,000.

THE SOUNDCRAFT SI2 IS A SMALLER PARTNER TO THE SI3, AND IS BOUND TO APPEAL TO THOSE WANTING A COMPACT AND HIGHLY-FEATURED DIGITAL CONSOLE AT A COMPETITIVE PRICE.

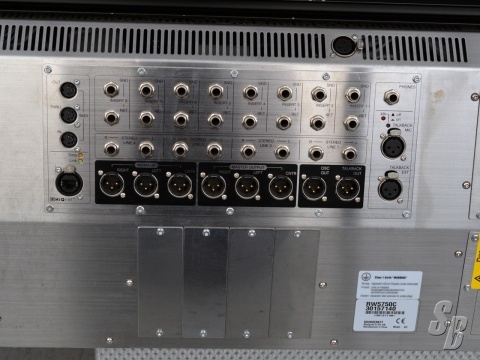

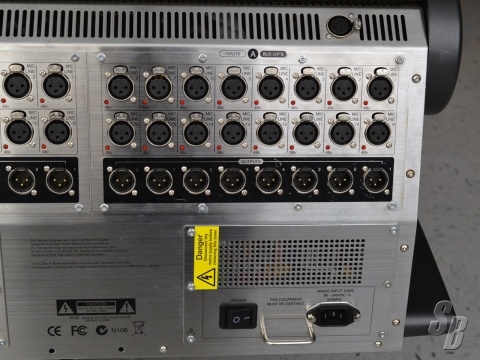

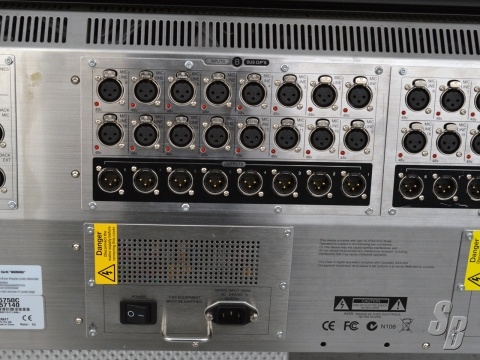

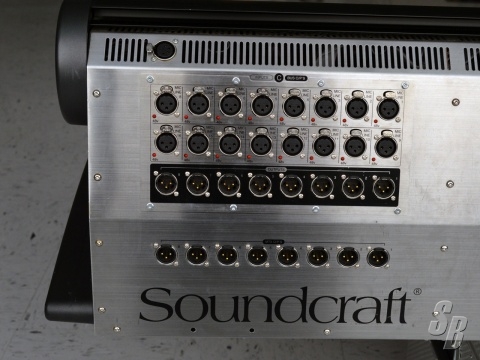

THE SI2 COMES IN A SMALLER FOOTPRINT THAN ITS BIGGER BROTHER AND HAS 48 MIC INPUTS MAPPED ON 24 FADERS (THE SI3 HAS 64 INPUTS), BUT THIS IS WHERE THE DIFFERENCES END. SI2, LIKE THE SI3 HAS FOUR DEDICATED STEREO LINE CHANNELS, FOUR DEDICATED FX RETURNS FROM THE FOUR STEREO LEXICON FX PROCESSORS, 8 BALANCED INSERT SENDS AND 8 BALANCED INSERT RETURNS. SI2 IS COMPLETE WITH 24 GROUP/AUX BUSSES AVAILABLE AT ALL TIMES, 8 MATRIX BUSSES AND A FULL COMPLIMENT OF MONITOR TALKBACK AND MAIN BUS OUTPUTS. ONE OF THE MOST UNIQUE AND COMPELLING FEATURES OF THE SI SERIES IS THAT EVERY INPUT AND OUTPUT HAS ITS OWN DEDICATED INPUT (OUTPUT) SOCKET ON THE BACK OF THE CONSOLE. THE FOUR 64X64 CHANNEL EXPANDER SLOTS ALLOW THE INSTALLATION OF FURTHER I/O BRINGING THE AVAILABLE INPUTS TO MIX UP TO 80.

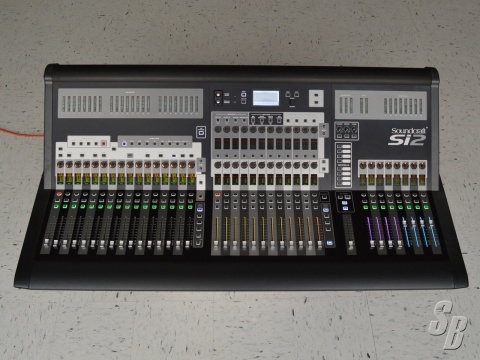

LIKE THE SI3, THE SI2 USES A COMBINATION OF ROTARY ENCODERS AND OLED SCREENS ON EVERY CHANNEL SO THE ENGINEER MIXES AT SOURCE, WITHOUT RECOURSE TO A CENTRAL SCREEN, AN INTERFACE WELCOMED BY MANY ENGINEERS SINCE THE CONSOLE’S LAUNCH LAST YEAR. FOUR ASSIGNABLE ON-BOARD LEXICON EFFECT ENGINES SUPPLEMENT 4 STEREO INPUTS TO PROVIDE A REALLY POWERFUL MIX PACKAGE.

THIS CONSOLE WILL BE HIGHLY SUITED FOR INSTALLATIONS WHERE A SMALLER FOOTPRINT IS CRITICAL, SUCH AS THEATRES, HOUSES OF WORSHIP AND SMALLER TOUR SOUND SYSTEMS.

WITH ALL INPUT AND OUTPUT CONNECTIONS AND POWER SUPPLY ON BOARD, THE SI2 CAN SIMPLY DROP IN WHERE AN EXISTING ANALOGUE CONSOLE SITS, UTILIZING EXISTING COPPER CABLE SNAKES AND SPLITTER SYSTEMS.

SI2 TECHNICAL SPECIFICATIONS:

FREQUENCY RESPONSE:
MIC INPUT TO LINE OUTPUT: +0/-1DB, 20HZ – 20KHZ
STEREO INPUT TO MASTER OUTPUT: +0.5/-0.5DB, 20HZ – 20KHZ
T.H.D. & NOISE: 10HZ-22KHZ
MIC IN (MIN GAIN) TO BUS OUTPUT: 0.006% @ 1KHZ
MIC IN (MAX GAIN) TO BUS OUTPUT: 0.008% @ 1KHZ
STEREO INPUT TO MASTER OUTPUT: 0.005% @ 1KHZ
MIC INPUT E.I.N.: <-126DBU (150Ω SOURCE) 22HZ-22KHZ BANDWIDTH, UNWEIGHTED
RESIDUAL NOISE: <-88DBU
MASTER OUTPUT: NO INPUTS ROUTED, MIX FADER @0DB
CMRR: 80DB @ 1KHZ
MIC INPUT
SAMPLING FREQUENCY: 48KHZ
CONVERTOR RESOLUTION: 24 BIT
LATENCY:
MIC INPUT TO BUS OUTPUT < 1MS @48KHZ
DSP RESOLUTION: 40-BIT FLOATING POINT
INTERNAL CLOCK:
ACCURACY < +/- 50PPM
JITTER < +/- 5ns
Input & Output Levels
Mic Inputs: +26dBu max
Stereo Inputs / Returns: +28dBu max
Bus Outputs: +22dBu max
Nominal Operating Level: 0dBu (-22dBFS)
Input & Output Impedances
Mic Inputs: 6k8Ω
All other analogue Inputs: >10KΩ
LINE OUPTUTS: <75Ω
OSCILLATOR: 20HZ TO 20KHZ SINE/PINK NOISE, VARIABLE LEVEL
FILTERS
CHANNEL HP FILTER: 22HZ-1KHZ, 18DB PER OCTAVE
CHANNEL LP FILTER: 500HZ-20KHZ, 18DB PER OCTAVE
EQ (INPUTS AND BUS OUTPUTS)
HF: 22HZ-20KHZ, +/-15DB, Q= 0.3-6.0 OR SHELVING
HI-MID: 22HZ-20KHZ, +/-15DB, Q=0.3-6.0
LO-MID: 22HZ-20KHZ, +/-15DB, Q=0.3-6.0
LF: 22HZ-20KHZ, +/-15DB, Q= 0.3-6.0 OR SHELVING
METERING: INTERNAL 14-SEGMENT LED BARGRAPHS FOR ALL OUTPUTS. 12-SECTION PLUS 9-SECTION GAIN REDUCTION OLED METERS FOR ALL INPUTS.
MAINS VOLTAGE OPERATING RANGE: 90-264V, 47-63HZ, AUTORANGING
MAINS POWER CONSUMPTION: 400W
TEMPERATURE/HUMIDITY RANGE
OPERATING TEMPERATURE RANGE: 0°C – 45°C (32°F – 113°F)
RELATIVE HUMIDITY: 0% – 90%, NON-CONDENSING TA=40°C (104°F)
STORAGE TEMPERATURE RANGE: -20°C – 60°C (-4°F – 140°F)

DIMENSIONS & WEIGHTS:
CONSOLE ONLY: 13.4 X 55.7 X 32.2 INCHES
CONSOLE ONLY: 106 POUNDS
CONSOLE IN SHIPPING CASE: 59 X 18 X 51 INCHES
CONSOLE IN SHIPPING CASE: 300 POUNDS

EXTRAS: INCLUDES:
(1) SOUNDCRAFT SI2 DIGITAL LIVE CONSOLE
(1) DUST COVER
(1) ROLLING SHIPPING CASE
(2) POWER CABLES

MODIFICATIONS: NO

HISTORY: TYPICAL USE

COMMENTS: NO

THIS UNIT WAS TOURED
