MIDAS PRO 9
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on April 12, 2014 - Viewed 136 times

MIDAS PRO 9 (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: THIS IS A MIDAS PRO 9 SURFACE WITH DSP. EXTENSIVE I/O OPTIONS ARE AVAILABLE UPON REQUEST.

INCLUDES:

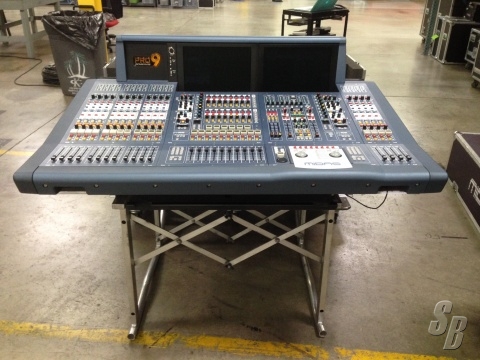

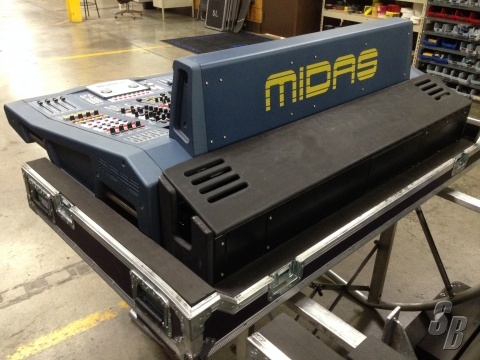

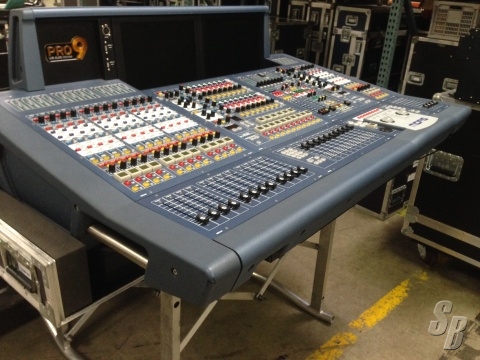

1 MIDAS PRO 9 SURFACE

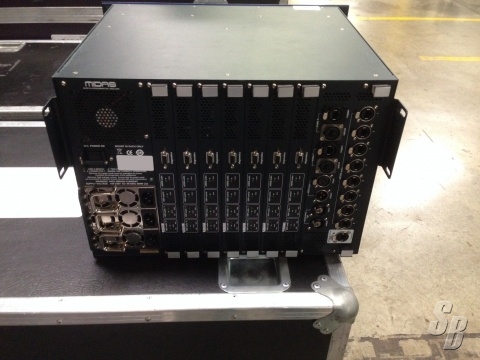

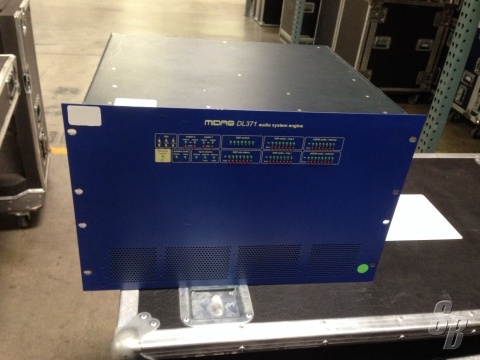

1 MIDAS DL371 PRO 9 DSP ENGINE (DL371 CHASSIS WITH 6 DL371 DSP CARDS)
1 EXTRA MIDAS DL371 PRO 9 DSP CARD IN DL371 CHASSIS FOR N+1 REDUNDANT OPERATION
1 DL442 O-CARD - 8 ANALOGUE OUTPUTS ON XLR
1 DL443 TRS-CARD - 8 BALANCED LINE LEVEL SENDS AND RETURNS
1 DL452 DIGITAL CARD - 4 AES/EBU INPUTS AND 4 AES/EBU OUTPUTS (8 AUDIO INS + 8 AUDIO OUTS)

FEATURES:
•LIVE PERFORMANCE DIGITAL CONSOLE CONTROL CENTRE WITH UP TO 88 SIMULTANEOUS INPUT CHANNELS
•INCLUDES DL371PRO9 AUDIO SYSTEM ENGINE WITH 28.8 GIGAFLOPS DIGITAL SIGNAL PROCESSING PERFORMANCE
•FITTED WITH 6 DL371A DSP CARDS AS STANDARD
•ADDITIONAL DL371A DSP CARD INCLUDED FOR N+1 REDUNDANT OPERATION
•35 TIME-ALIGNED AND PHASE-COHERENT MIX BUSES
•40 BIT FLOATING POINT PROCESSING WITH 96 KHZ SAMPLE RATE
•HYPERMAC AND AES50 NETWORKING ALLOWS UP TO 288 INPUTS AND 294 OUTPUTS @ 96 KHZ SAMPLE RATE
•HYPERMAC ROUTER WITH 192 BIDIRECTIONAL CHANNELS OVER COPPER AND OPTICAL FIBRE
•PROVIDES DUAL REDUNDANT SNAKE CONNECTION TO DL371PRO9 AUDIO SYSTEM ENGINE
•SNAKE CONNECTIONS UP TO 500 M WITH OPTICAL FIBRE OR 100 M WITH CAT5/5E CABLE
•10 VCA (VARIABLE CONTROL ASSOCIATION) AND 8 POPULATION GROUPS
•UP TO 36 ASSIGNABLE 1/3 OCTAVE KLARK TEKNIK DN370 GRAPHIC EQUALISERS
•UP TO 8 MULTI-CHANNEL DIGITAL SIGNAL PROCESSING EFFECTS ENGINES
•29 MIDAS PRO MOTORISED 100 MM FADERS
•2 DAYLIGHT VIEWABLE 15” FULL COLOUR TFT DISPLAY SCREENS
•FULLY INTERPOLATED TOUCH SENSITIVE CONTROLS
•OPTIONAL WIRELESS REMOTE CONTROL WITH MIDAS MIXTENDER APP FOR IPAD*
•THREE BAY AUTO-RANGING UNIVERSAL SWITCH-MODE POWER SUPPLY WITH N+1 REDUNDANCY
•DESIGNED AND ENGINEERED IN ENGLAND

EXTRAS: SEE FEATURES

MODIFICATIONS: EXTENSIVE I/O OPTIONS ARE AVAILABLE UPON REQUEST.

HISTORY: THIS ITEM HAS BEEN HEAVILY TOURED BUT REGULARLY SERVICED AND TESTED.

COMMENTS: N/A

THIS UNIT WAS TOURED
