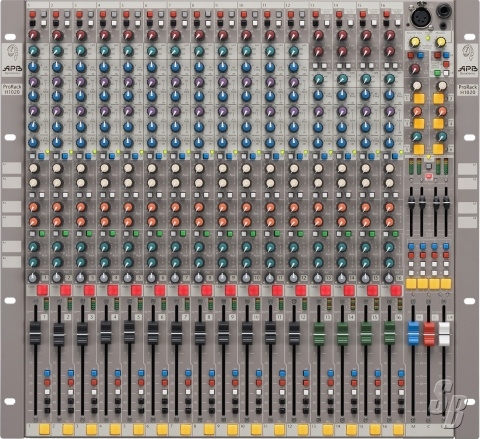

APB-DYNASONICS PRO RACK-HOUSE (20 MIC/LINE IN X 4 SUB-GROUP)
[PRICED PER UNIT - 0 AVAILABLE AT TIME OF LISTING]
Listing last update on January 10, 2014 - Viewed 220 times

B-STOCK APB-DYNASONICS PRORACK-HOUSE [H1020] - PRORACK-HOUSE (H1020) FEATURE OVERVIEW:

20 MICROPHONE PRE-AMPLIFIERS IN TOTAL. 12 MONO MIC/LINE INPUT CHANNELS AND 4
DUAL-MONO/STEREO MIC/LINE INPUT CHANNELS, ALL WITH SPECTRA-QUALITY MICROPHONE
PREAMPLIFIERS IN A 10U (17.5" IN X 19") PACKAGE.
MINIMUM PHASE SHIFT CIRCUITRY AND INTERNAL MOTHER BOARD/DAUGHTER BOARD CONSTRUCTION
DERIVED FROM THE SPECTRA CONSOLE DESIGN.
48 VOLT PHANTOM POWER SWITCH, POLARITY REVERSE SWITCH, MIC/LINE SWITCH, MIC PAD SWITCH ON
INPUT CHANNELS. (COMBO MIC/LINE/PAD SWITCH ON STEREO INPUT CHANNELS).
VARIABLE FREQUENCY HIGH-PASS FILTERS ON ALL MONO AND STEREO INPUT CHANNELS WITH A 20HZ TO
400HZ SWEEP RANGE AT 12DB PER OCTAVE.
MONO INPUT CHANNELS FEATURE FIXED HIGH AND LOW FREQUENCY EQ BANDS AND TWO MID-SWEEP EQ
BANDS, WITH EQ ON SWITCH WITH LED. THE STEREO CHANNELS FEATURE FIXED HIGH AND LOW FREQUENCY
EQ BANDS AND A SINGLE MID-SWEEP EQ BASED ON SPECTRA CIRCUITRY.
SIX AUX SENDS; EACH PAIR OF SENDS SWITCHABLE BETWEEN A PRE OR POST FADER SOURCE. IN
THE PRE-FADER POSITION, AN ADDITIONAL FRONT PANEL SWITCH DETERMINES IF THAT PRE-FADER SIGNAL
IS DERIVED PRE OR POST EQ. AUX CONTROLS 5 AND 6 MAY BE SWITCHED TO BECOME A STEREO PAIR.
ALL CHANNELS CAN ASSIGN TO LEFT-RIGHT, CENTER AND MONO MIX BUS ASSIGNMENT ALONG WITH
ADDITIONAL ASSIGNMENT SWITCHES TO SUBGROUPS 1-2 AND 3-4. THESE OUTPUTS
(INCLUDING AUX OUTPUTS) EACH HAVE BALANCED XLR OUTPUTS, TRS BUS INPUTS AND TRS
INSERT CONNECTORS.
LEFT-RIGHT, CENTER AND MONO MIX OUTPUT LEVEL CAN BE SWITCHED FROM LINE LEVEL TO MIC LEVEL.
INTERNALLY ILLUMINATED MUTE AND PFL/AFL SWITCHES ALONG WITH 6-SEGMENT LED CHANNEL METERING
AND 100MM FADERS ON ALL INPUT CHANNELS.
FOUR LED METERS CAN MONITOR THE LEFT, RIGHT, CENTER AND MONO OUTPUTS OR THE GROUP 1-4 OUTPUTS.
METERS AUTO-SWITCH TO SHOW SOLO LEVELS.
BUS LEVEL SIGNAL MONITORING USING BI-COLOR LED'S ON ALL 14 MIX BUSES: LEFT, RIGHT, CENTER,
AND MONO, GROUPS 1-4, AND AUX 1-6.
100-240 VAC, 50/60HZ POWER SUPPLY - FIELD REPLACEABLE (PLUG IN) WITHOUT DISASSEMBLY OF MIXER.
REAR PANEL ROTATES AND MAY BE LOCKED IN ANY OF THREE PRESET ANGLES (REFERENCED TO THE
FRONT PANEL) - 90 DEGREES, 135 DEGREES, OR 180 DEGREES.
ADJUSTABLE LAMP DIMMER PROVIDED FOR THE 4-PIN XLR CONNECTOR FOR USE WITH (OPTIONAL)
GOOSENECK LAMP.


MANUFACTURERS B STOCK BRAND NEW WITH FULL FACTORY WARRANTY. FOB, NJ.
